CPG9827W569A 04 – DOOR/DRAWER – Aparts

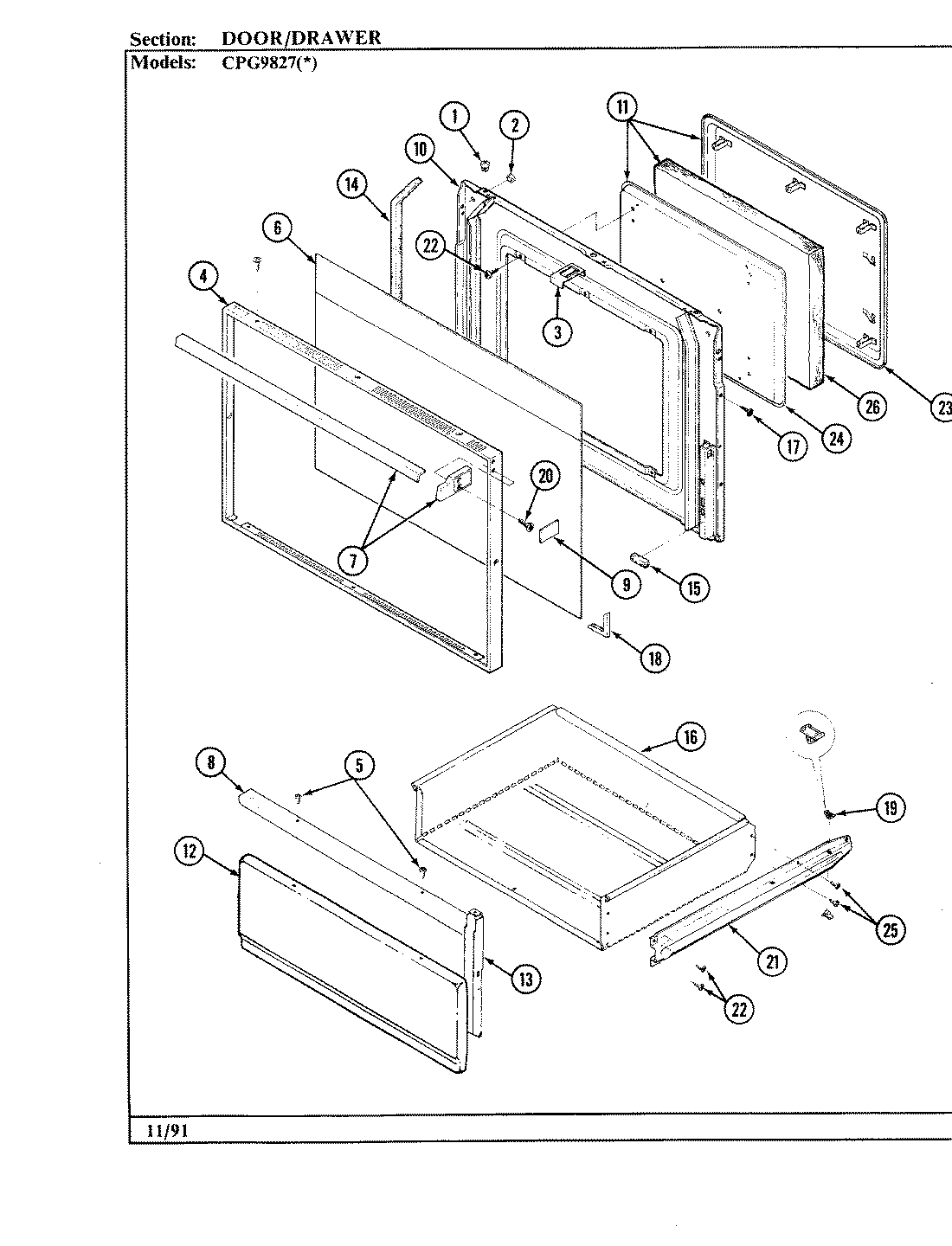

CPG9827W569A 04 – DOOR/DRAWER

Products

Position	Product
1	WP7103P114-60 Whirlpool Snap Nut
2	MAY 8003P009-60
2	MAY 8003P002-60
3	CLIP, DOOR
4	MAY 7706P243-60
5	SCREW
6	MAY 7902P275-60
7	MAY 7701P047-60
8	WP2411F013-71 Whirlpool Door Handle
9	MAY 7728P068-60
10	MAY 2402W153-15
10	MAY 8114P274-60
10	MAY 2402W173-19
10	MAY 2402W173-15
11	MAY 2410A028-15
11	MAY 2410A028-19
12	MAY 2416F006-62
13	MAY 3802F044-51
14	MAY 7208P002-60
15	MAY 7208P011-60
16	MAY 3405F008-80
17	MAY 7107P017-60
18	MAY 8010P045-60
19	MAY 8016P009-60
19	MAY 8016P004-60
20	MAY 7101P123-60
21	MAY 3406F020-80
22	MAY 7101P061-60
23	MAY 2410W040-19
23	MAY 2410W040-15
24	MAY 2410F012-51
25	MAY 7101P272-60
26	MAY 7002P118-60
