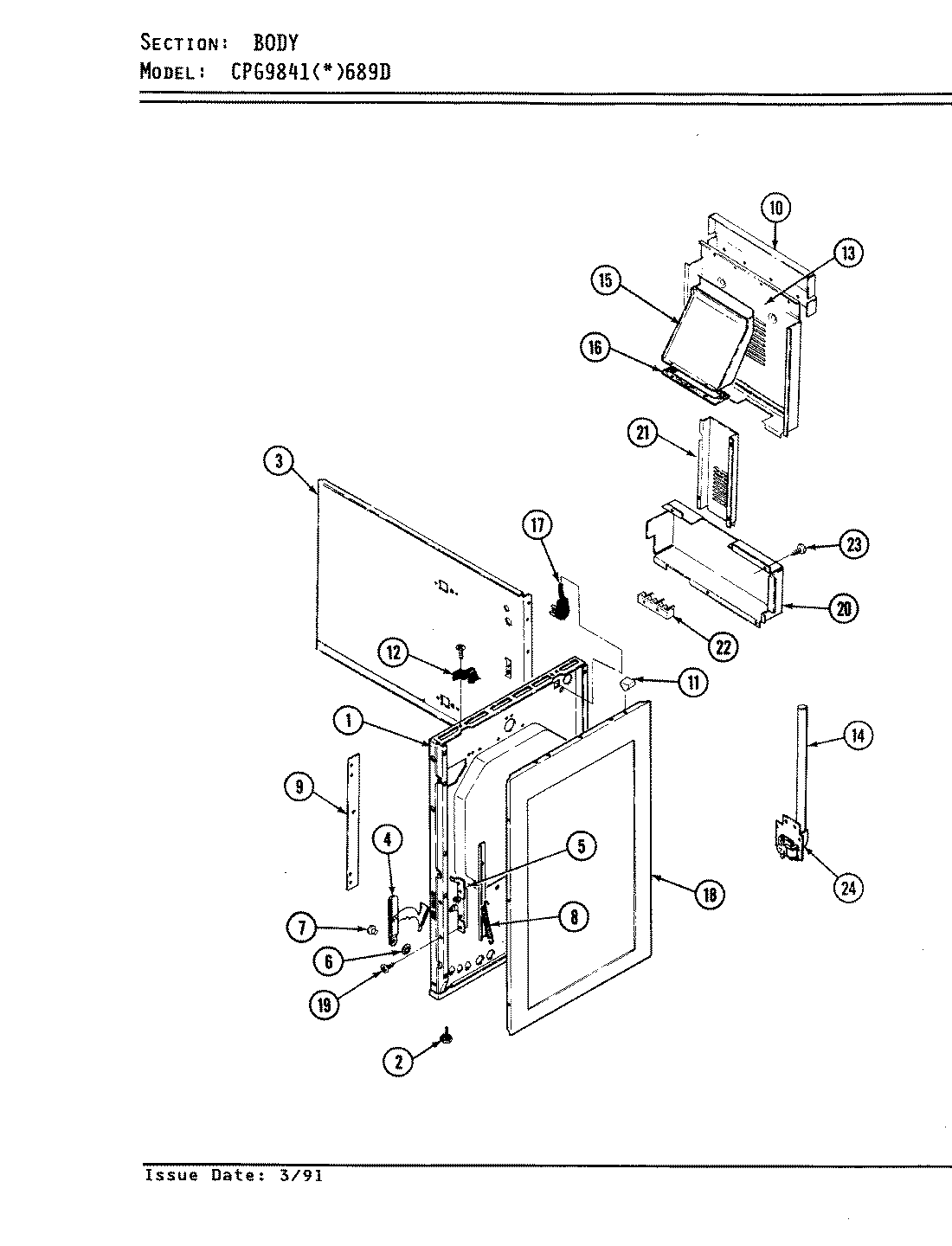

| 1 | MAY 4009W069-80 |
| 1 | SCREW, HINGE |
| 1 | MAY 7103P045-60 |
| 2 | MAY Y7101P25460 |
| 3 | MAY 4002F144-80 |
| 3 | MAY 8008P014-60 |
| 3 | MAY 8008P012-60 |
| 4 | MAY 3420A033-34 |
| 5 | MAY 8016P008-60 |
| 5 | MAY 3418A030-34 |
| 5 | MAY 3418A029-34 |
| 6 | MAY 7112P019-60 |
| 8 | WP7803P058-60 Whirlpool Spring |
| 9 | MAY 3601F106-51 |
| 10 | MAY 3601F107-51 |
| 11 | MAY 8003P011-60 |
| 12 | MAY 7112P073-60 |
| 13 | MAY 3601F112-51 |
| 13 | MAY 3604F132-51 |
| 14 | MAY 8026P006-60 |
| 15 | MAY 4006W026-23 |
| 16 | MAY 7201P013-60 |
| 17 | MAY 3801F021-45 |
| 17 | MAY 7401P018-60 |
| 17 | MAY 7402P024-60 |
| 17 | BUSHING, SNAP |
| 18 | MAY 7101P058-60 |
| 18 | MAY 2618F073-74 |
| 19 | WP4159193 Whirlpool Screw |
| 20 | MAY 4005F174-80 |
| 21 | MAY 3818F032-80 |
| 22 | MAY 7401P015-60 |
| 23 | MAY 7101P061-60 |
| 24 | MAY 7427P002-60 |
