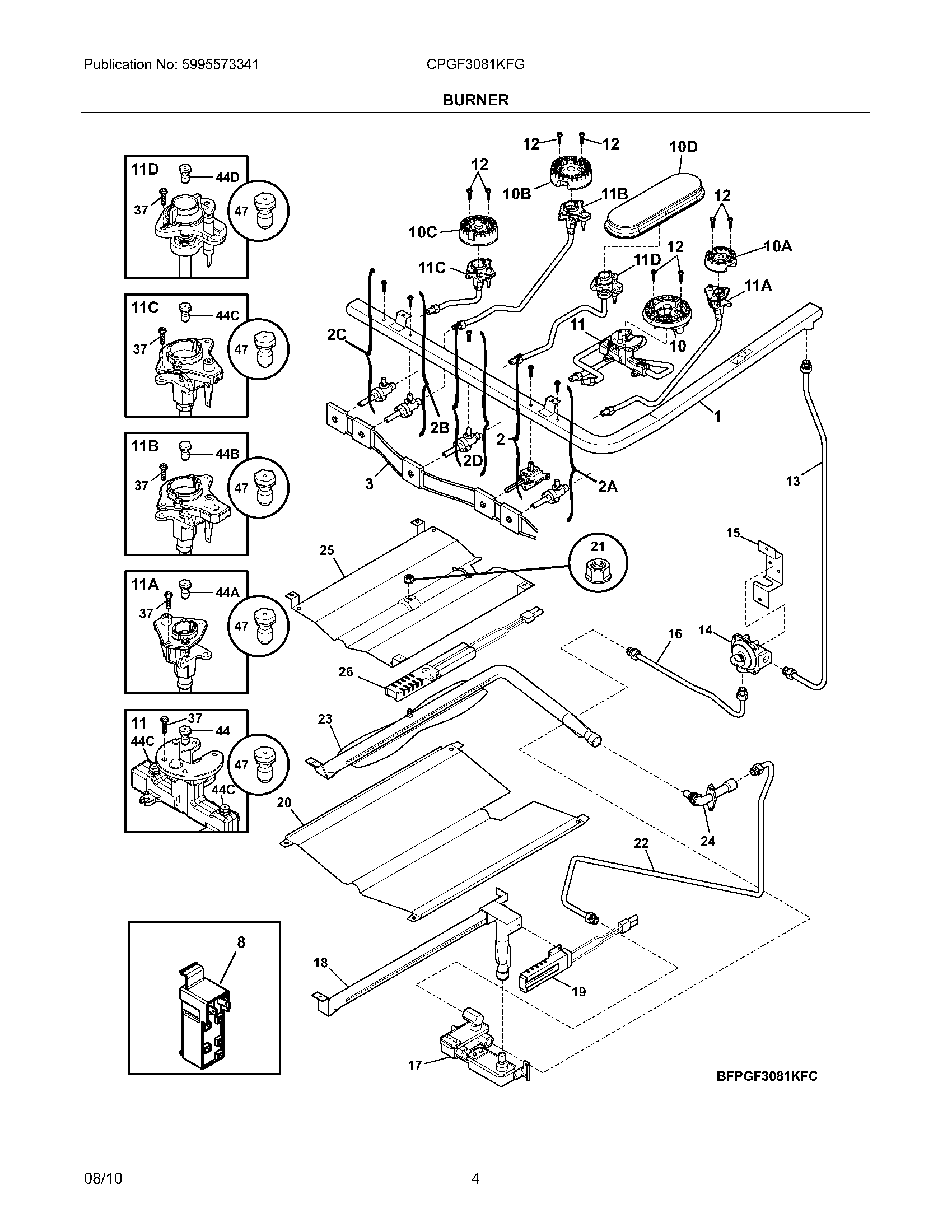

CPGF3081KFG 05 – BURNER

CPGF3081KFG 05 – BURNER

Written by

in

CPGF3081KFG 05 – BURNER

Products

PositionProduct
NI316021104 Frigidaire Oven Screw Assembly
NI316566901 Frigidaire Oven Sleeve
NI316001017 Frigidaire Screw
NI316089500 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
NI241853202 Frigidaire Refrigerator Screw
NI5304494425 Frigidaire Oven Harness
NI316417518 Frigidaire Instructions
NI316401500 Frigidaire Oven Cover
NI316257400 Frigidaire Oven Bracket
NI316215600 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
1WCI 316551202
2C5303935305 Frigidaire Oven Valve
2D5303935309 Frigidaire Top Burner Valve
2A5303935308 Frigidaire Oven Valve
2WCI 316412513
2B5303935307 Frigidaire Oven Valve
3WCI 316580618
85304508269 Frigidaire Oven Range Spark Module Kit
10316440300 Frigidaire Burner Assembly
10C316558300 Frigidaire Oven 9.5L Sealed Burner
10A316438200 Frigidaire Range Sealed Burner, 5K
10DWCI 316532001
10B316438600 Frigidaire Range Sealed Burner, 14K
11D316532601 Frigidaire Igniter/Orifice Assembly
11316572100 Frigidaire Igniter/Orifice Assembly
11B316536618 Frigidaire Igniter/Orifice Assembly
11A316536610 Frigidaire Igniter Assembly/Orifice
11C316536602 Frigidaire Oven Igniter/Orifice Assembly
12316540900 Frigidaire Oven Screw
13WCI 316545700
145304521339 Frigidaire Regulator
15316091600 Frigidaire Oven Bracket
165304507348 Frigidaire Oven Tube
17316404901 Frigidaire Oven Valve
18316404400 Frigidaire Oven Burner
19BAKE IGNITOR
205304519024 Frigidaire Oven Baffle
215303013272 Frigidaire Oven Nut
225304507768 Frigidaire Oven Tube
23316404304 Frigidaire Oven Burner
245304516894 Frigidaire Oven Elbow
25WCI 316401301
265304506545 Frigidaire Gas Oven Range Igniter
37316240600 Frigidaire Igniter Mounting Screw
44316527514 Frigidaire Oven Orifice Assembly
44B316527513 Frigidaire Oven Orifice
44D316237902 Frigidaire Orifice Top Burner
44A316527504 Frigidaire Oven Orifice
44C316527500 Frigidaire Oven Burner Orifice
47GRLP3 Frigidaire Oven LP Conversion Kit
