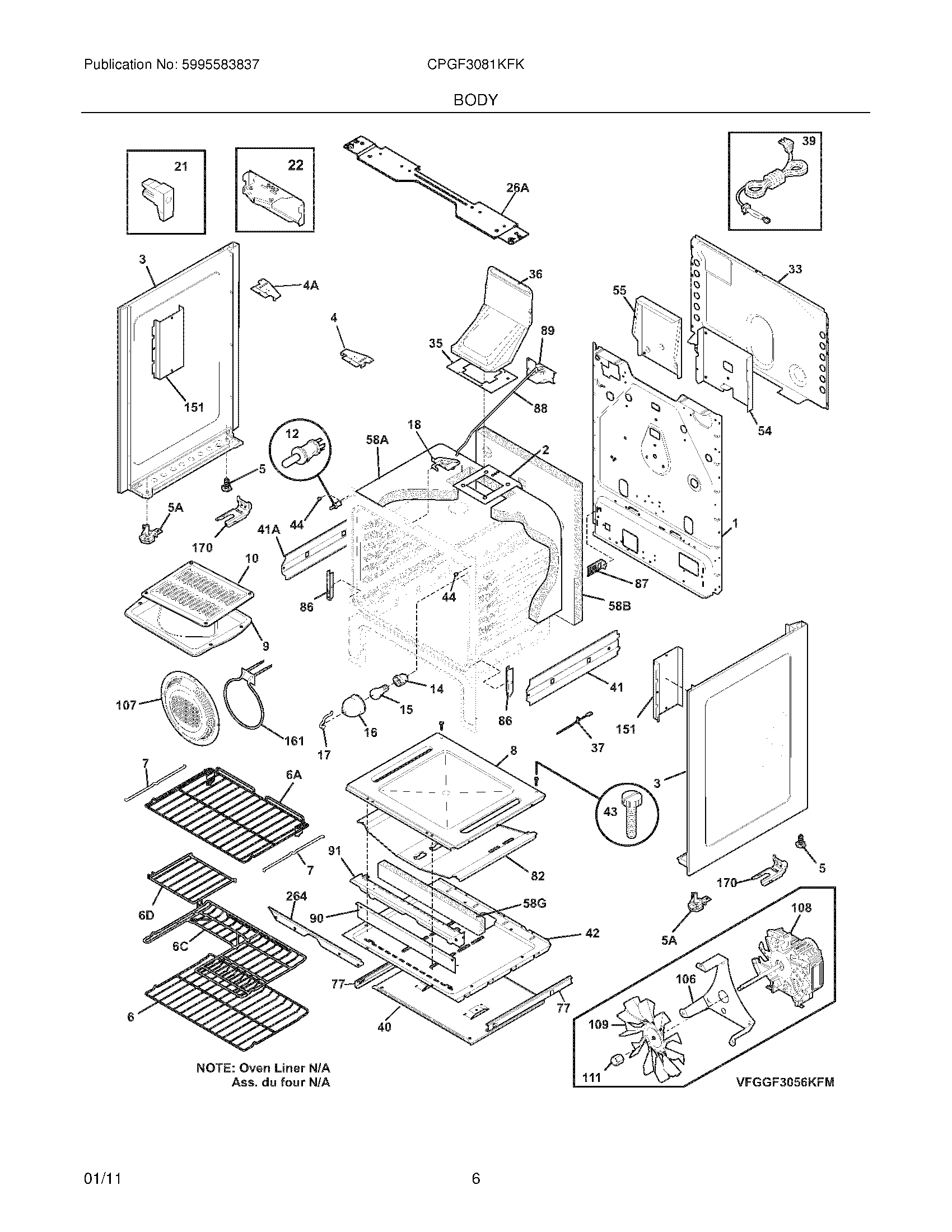

CPGF3081KFK 07 – BODY

CPGF3081KFK 07 – BODY

Written by

in

CPGF3081KFK 07 – BODY

Products

Position	Product
NI	316089500 Frigidaire Oven Screw
NI	241853202 Frigidaire Refrigerator Screw
NI	316418900 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316539800 Frigidaire Oven Retainer
NI	316001017 Frigidaire Screw
NI	316279600 Frigidaire Screw
NI	316432800 Frigidaire Clip
NI	WCI 316580301
NI	316021105 Frigidaire Oven Screw
NI	5303285179 Frigidaire Oven Door Screw
NI	316021109 Frigidaire Oven Screw
1	316401608 Frigidaire Back
2	316437100 Frigidaire Brace Assembly DSP
3	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
4A	WCI 316285001
4	316285000 Frigidaire Maintop Bracket
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6D	WCI 316419400
6C	WCI 316425600
6A	316577800 Frigidaire Oven Rack
6	316496201 Frigidaire Oven Rack
7	316546300 Frigidaire Coupler Link Arm
8	316400603 Frigidaire Oven Stove Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445500 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	316286300 Frigidaire Bodyside Bracket
26A	316498200 Frigidaire Oven Bracket
33	316402500 Frigidaire Oven Shield
35	316542102 Frigidaire Flue Gasket
36	FLUE
37	316490000 Frigidaire Oven Range Temperature Sensor
39	5304534000 Frigidaire Cord
40	WCI 316409600
41A	WCI 316409201
41	WCI 316409200
42	316400700 Frigidaire Shield
43	316282700 Frigidaire Oven Screw
44	316517600 Frigidaire Oven Spacer
54	WCI 316404200
55	5304510473 Frigidaire Shield
58A	316403700 Frigidaire Insulation
58B	WCI 316403600
58G	08067973 Frigidaire 0 Insulation
77	316456700 Frigidaire Oven Glide Assembly
82	316400801 Frigidaire Oven Shield
86	316441300 Frigidaire Receptacle
87	316401202 Frigidaire Bracket
88	316232702 Frigidaire Rod
89	MOTOR
90	WCI 316401100
91	WCI 316401000
106	316404100 Frigidaire Oven Bracket
107	316026701 Frigidaire Oven Cover Assembly
108	316256900 Frigidaire Oven Fan Motor
109	318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111	316136600 Frigidaire Oven Range Lock Nut
151	WCI 316404600
161	316211603 Frigidaire Oven Element
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
264	316404700 Frigidaire Bracket
