CPGS3085KF1 09 – TOP/DRAWER – Aparts

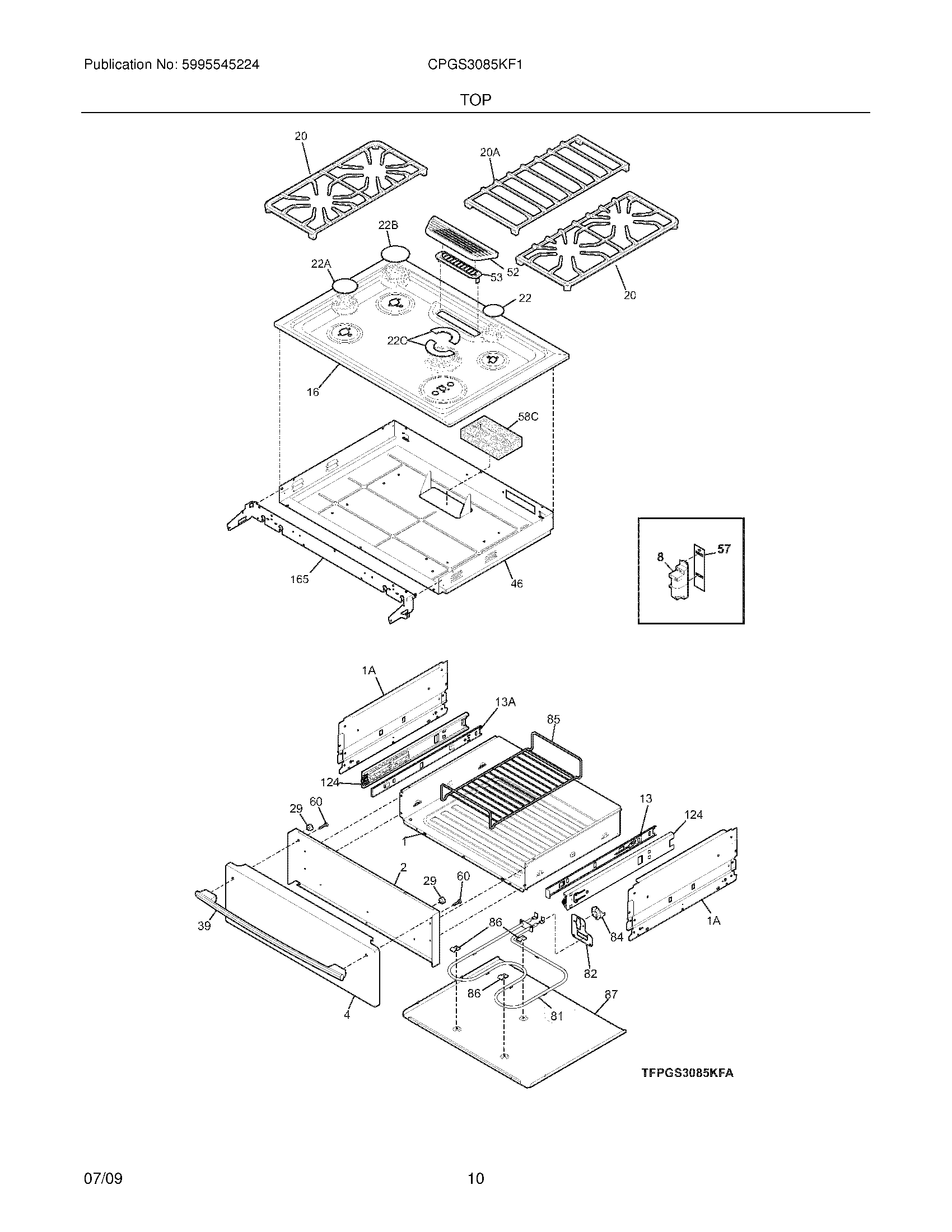

CPGS3085KF1 09 – TOP/DRAWER

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	SCREW-SHOULDER
NI	5303307980 Frigidaire Oven Screw
NI	134716700 Frigidaire Washer
NI	WCI 318199748
NI	WCI 5304440988
1	WCI 318304401
1A	318300003 Frigidaire Oven Panel
2	WCI 318303901
4	318298829 Frigidaire Oven Panel
8	5304505695 Frigidaire Oven Module
13	318259507 Frigidaire Oven Glide
13A	318259506 Frigidaire Oven Glide
16	WCI 318287568
20A	WCI 318560340
20	WCI 318560130
22A	Cap,9.5K burner ,black ,medium ,(2)
22B	WCI 316438704
22C	WCI 316441204
22	CAP
29	318147430 Frigidaire Oven Bumper
39	WCI 316551500
46	WCI 318921401
52	318291126 Frigidaire Cover
53	WCI 318308303
57	318295611 Frigidaire Panel
58C	318594401 Frigidaire Insulation
60	WCI 5304472906
81	318255301 Frigidaire Oven Element
82	WCI 318304500
84	318005108 Frigidaire Thermostat
86	316095800 Frigidaire Oven Clip
87	318300102 Frigidaire Oven Panel
124	316105501 Frigidaire P-1 Glide
165	WCI 318913300
