CPJ8441KA919D 05 – LOWER DOOR/DRAWER – Aparts

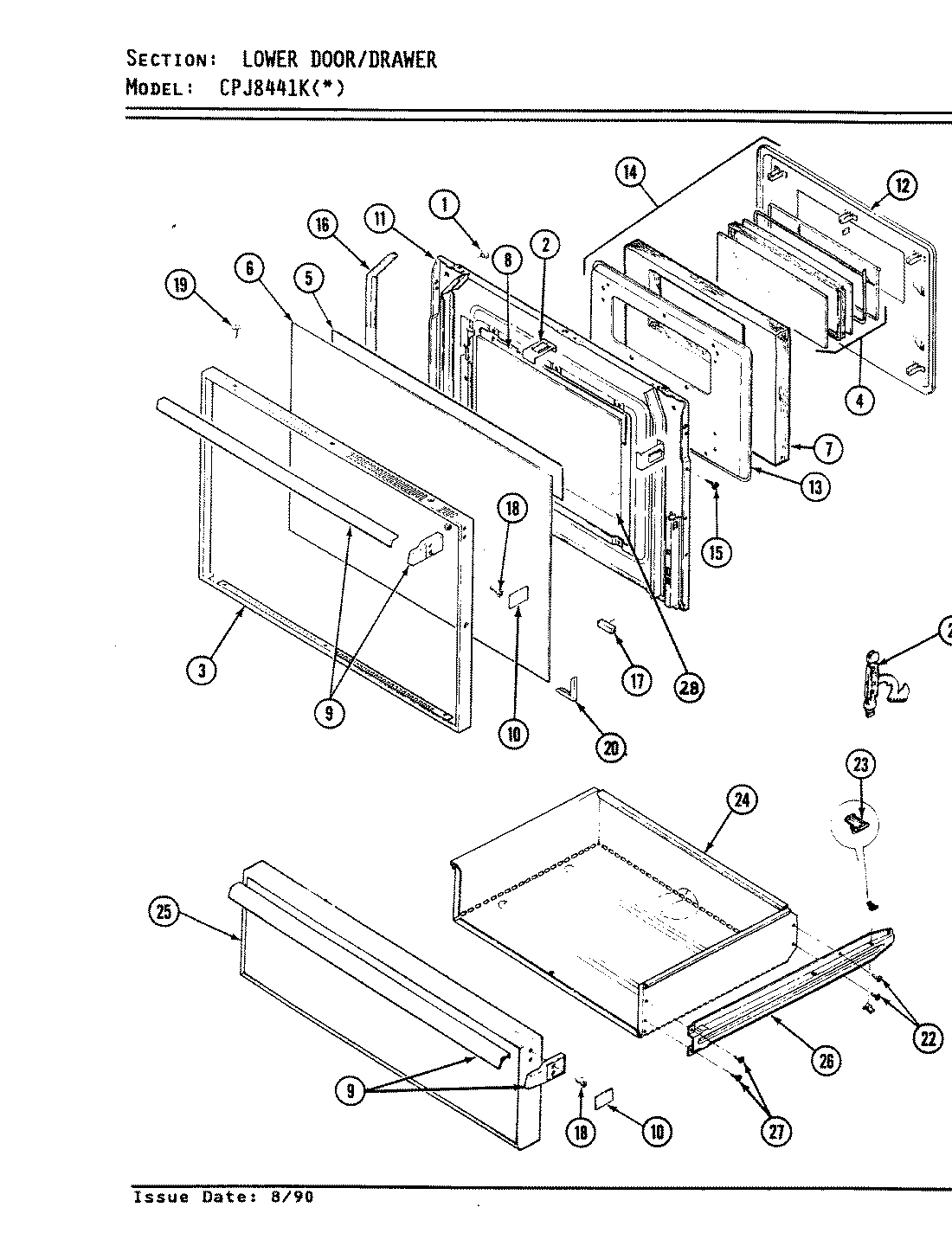

CPJ8441KA919D 05 – LOWER DOOR/DRAWER

Products

Position	Product
1	MAY 8003P009-60
2	CLIP, DOOR
3	MAY 7706P243-60
4	MAY 5700A091-60
5	MAY 8270P033-60
6	MAY 7902P276-60
7	MAY 4804F006-60
8	MAY 8270P071-60
9	MAY 7701P047-60
10	MAY 7728P068-60
11	MAY 2402W173-15
11	WP7103P114-60 Whirlpool Snap Nut
12	MAY 2410W041-15
13	MAY 2410F016-51
14	MAY 2410A041-15
15	MAY 7107P017-60
16	MAY 7208P002-60
17	MAY 7208P011-60
18	MAY 7101P123-60
19	WP7101P126-60 Whirlpool Screw
20	MAY 8010P045-60
21	MAY 3420A033-34
22	MAY 7101P061-60
23	MAY 8016P004-60
23	MAY 8016P009-60
24	MAY 3405F008-80
24	SCREW
25	MAY 5425A021-70
26	MAY 3406F020-80
28	MAY 7902P097-60
