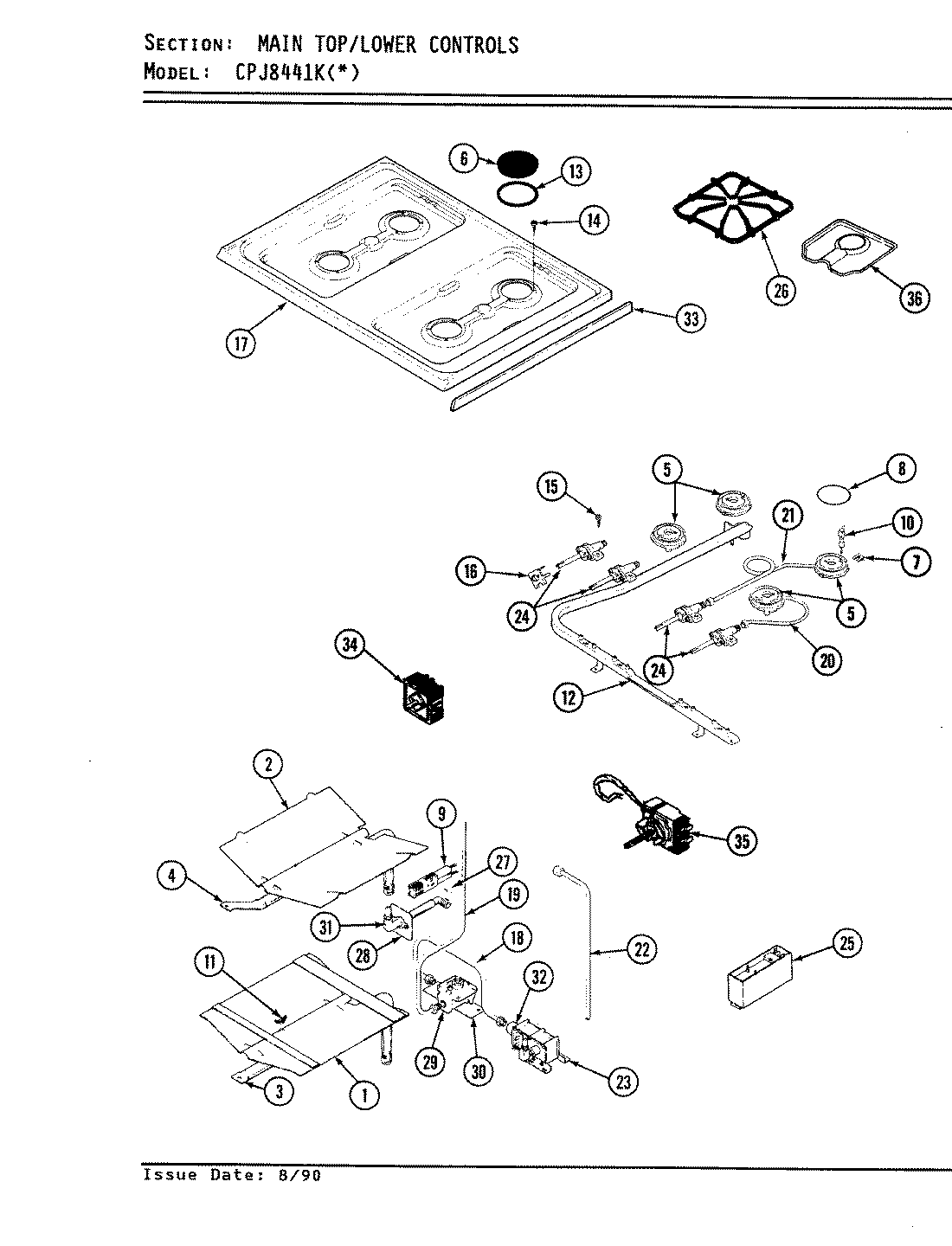

CPJ8441KA919D 06 – MAIN TOP & LOWER CONTROLS

Products

Position	Product
1	MAY 3601W184-15
2	MAY 3601F181-45
3	MAY 7505P101-60
4	MAY 7505P100-60
5	MAY 5415A015-60
5	MAY 7505A155-60
5	MAY 5415A016-60
5	MAY 5110A824-60
5	MAY 5110A825-60
6	MAY 7504P007-60
7	MAY 7112P072-60
8	MAY 7201P037-60
9	MAY 7432P067-60
10	MAY 7432P053-60
11	NUT, WING
12	MAY 7513P093-60
13	MAY 2014F001-00
14	MAY 7101P256-60
15	MAY 7101P043-60
16	WP7403P190-60 Whirlpool Switch
17	MAY 2001F063-84
18	MAY 7506P117-60
19	MAY 7506P101-60
20	MAY 7506P076-60
21	MAY 7506P077-60
22	MAY 7506P092-60
23	MAY 7501P034-60
24	MAY 7502P100-60
24	MAY 7214P003-60
25	MAY 3801F205-45
25	MAY 7431P016-60
26	MAY 7518P014-60
27	SCREW (10-24X5/16-NI)
28	MAY 3605F019-45
29	MAY 7510P028-60
30	MAY 3801F191-45
31	MAY 7507P028-60
32	MAY 1555251
33	MAY 7746P026-60
33	WP7101P072-60 Whirlpool Screw
33	MAY 7103P064-60
33	MAY 7746P025-60
34	MAY 7403P092-60
34	MAY 7101P279-60
35	MAY 7101P125-60
35	MAY 7515P020-60
36	MAY 7725P016-60
