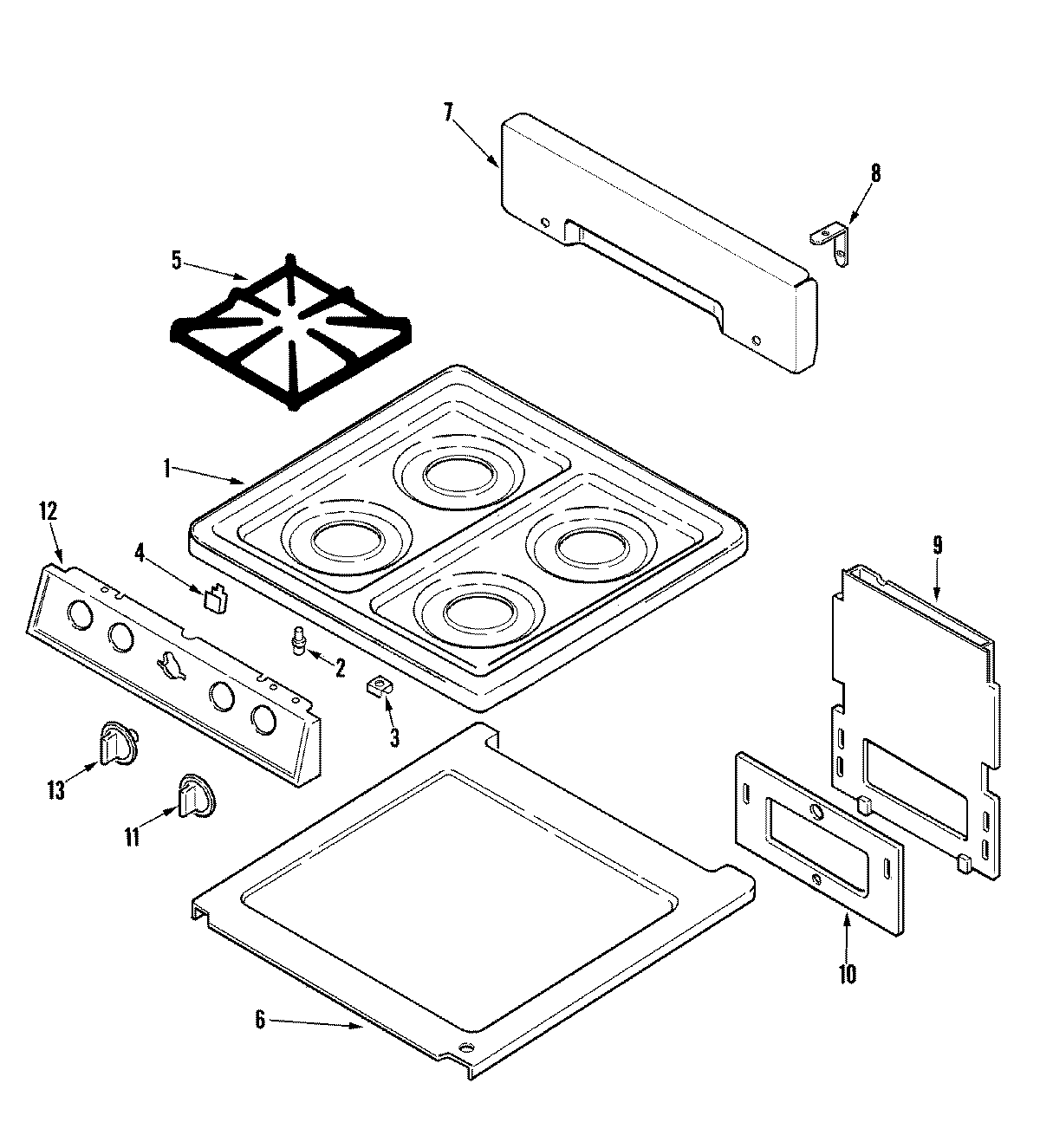

CPL1100ADQ 05 – TOP ASSEMBLY

CPL1100ADQ 05 – TOP ASSEMBLY

Written by

in

CPL1100ADQ 05 – TOP ASSEMBLY

Products

PositionProduct
1WP7101P072-60 Whirlpool Screw
1MAY 74006397
1MAY 7103P089-60
2MAY 8024P003-60
3MAY 7103P105-60
4MAY 8002P022-60
5WP2003X030-00 Whirlpool Burner Grate
6MAY 74003292
7MAY 74010479
8MAY 74003271
9MAY 74003294
10MAY 7201P038-60
11MAY 74010592
12MAY 7103P100-60
12MAY 7101P356-60
12MAY 74010574
13MAY 74010591
