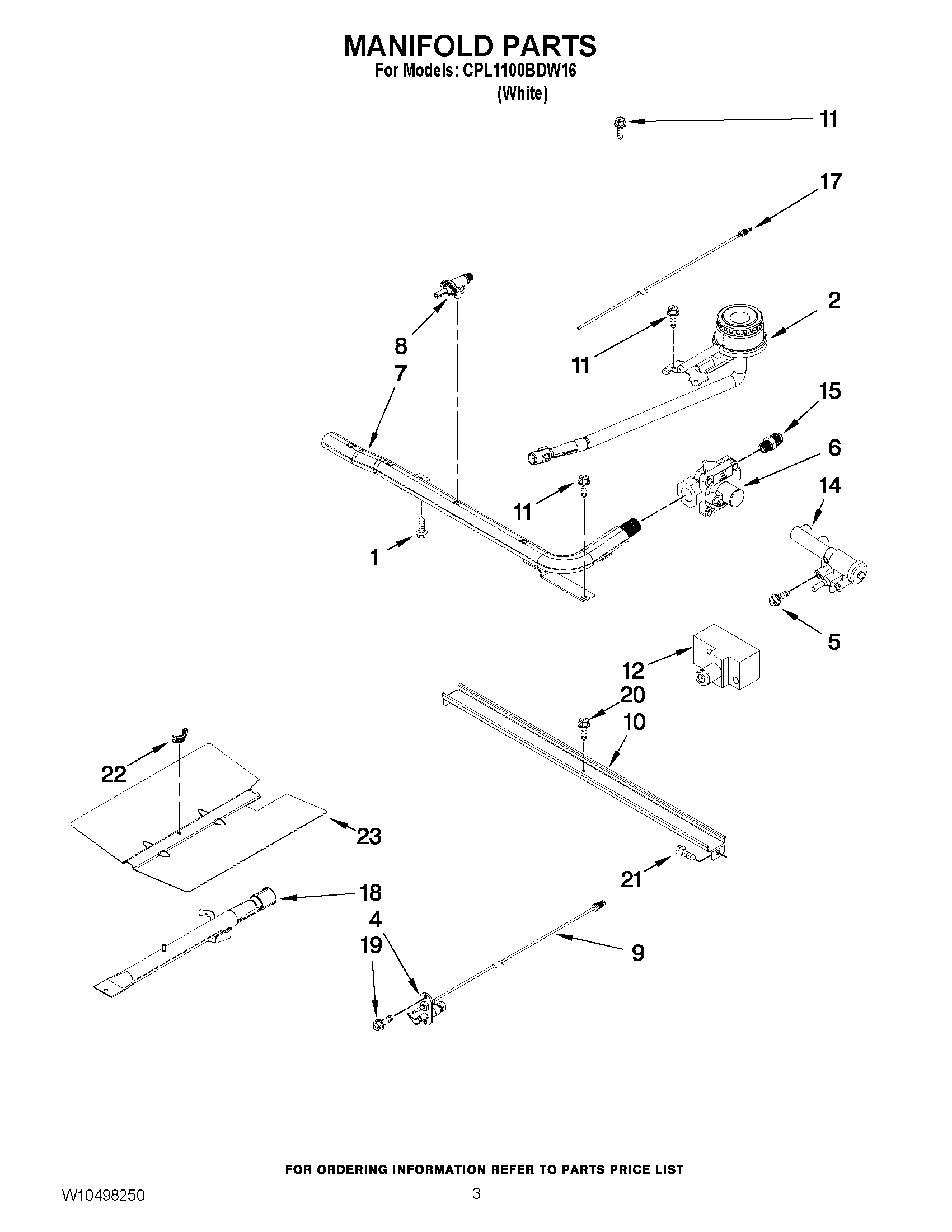

CPL1100BDW16 03 – MANIFOLD PARTS
Written by
in
CPL1100BDW16 03 – MANIFOLD PARTS
Products
Position
Product
1
SCREW
2
MAY 7505P325-60
2
MAY 3412D025-09
2
MAY 7505P326-60
4
MAY 7505P329-60
5
SCREW (10-24X5/16-NI)
6
MAY 7510P083-60
7
MAY 7513P512-60
8
MAY 7502P551-60
9
MAY 7506P520-60
10
MAY 3807F718-51
11
MAY 7101P376-60
12
MAY 7527P115-60
14
MAY 7507P422-60
15
MAY 7507P388-60
17
MAY 7506P518-60
18
MAY 7505P252-60
19
MAY 7101P188-60
20
SCREW (8BX3/8-NI)
21
MAY 7101P498-60
22
NUT, WING
23
MAY 3601P281-45
←
