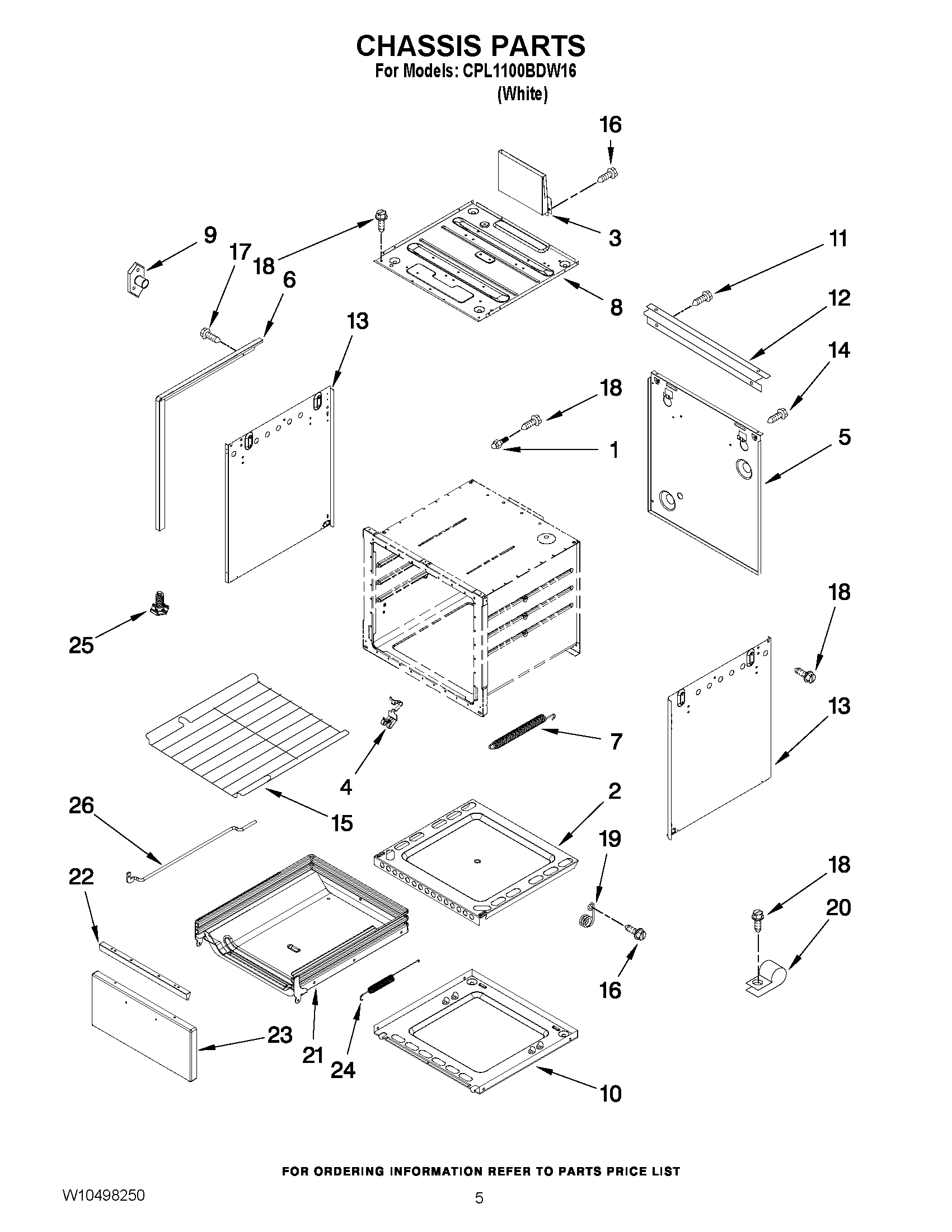

CPL1100BDW16 04 – CHASSIS PARTS
Written by
in
CPL1100BDW16 04 – CHASSIS PARTS
Products
Position
Product
NI
MAY 7002P495-60
NI
MAY 7002P429-60
1
MAY 8024P003-60
2
MAY 5720A003-23
3
MAY 4006W133-51
4
WP7112P004-60 Whirlpool Thermal Clip
5
MAY 4002F353-51
6
MAY 3608F148-70
6
MAY 3608F147-70
7
MAY 7803P032-60
8
MAY 4011F507-51
9
MAY 7103P105-60
10
MAY 4011F325-51
11
Screw (2) (Black)
12
MAY 3604F122-45
13
MAY 2618F193-71
14
SCREW (8BX3/8-NI)
15
MAY 7801P151-60
16
MAY 7101P500-60
17
MAY 7101P301-60
18
MAY 7101P376-60
19
MAY 7112P065-60
20
MAY 7111P009-60
21
MAY 3407W005-19
22
MAY 2411F012-71
23
MAY 2416F103-71
24
MAY 7803P068-60
25
Leg, Leveling
26
MAY 3808F007-61
26
MAY 3808F008-61
←
