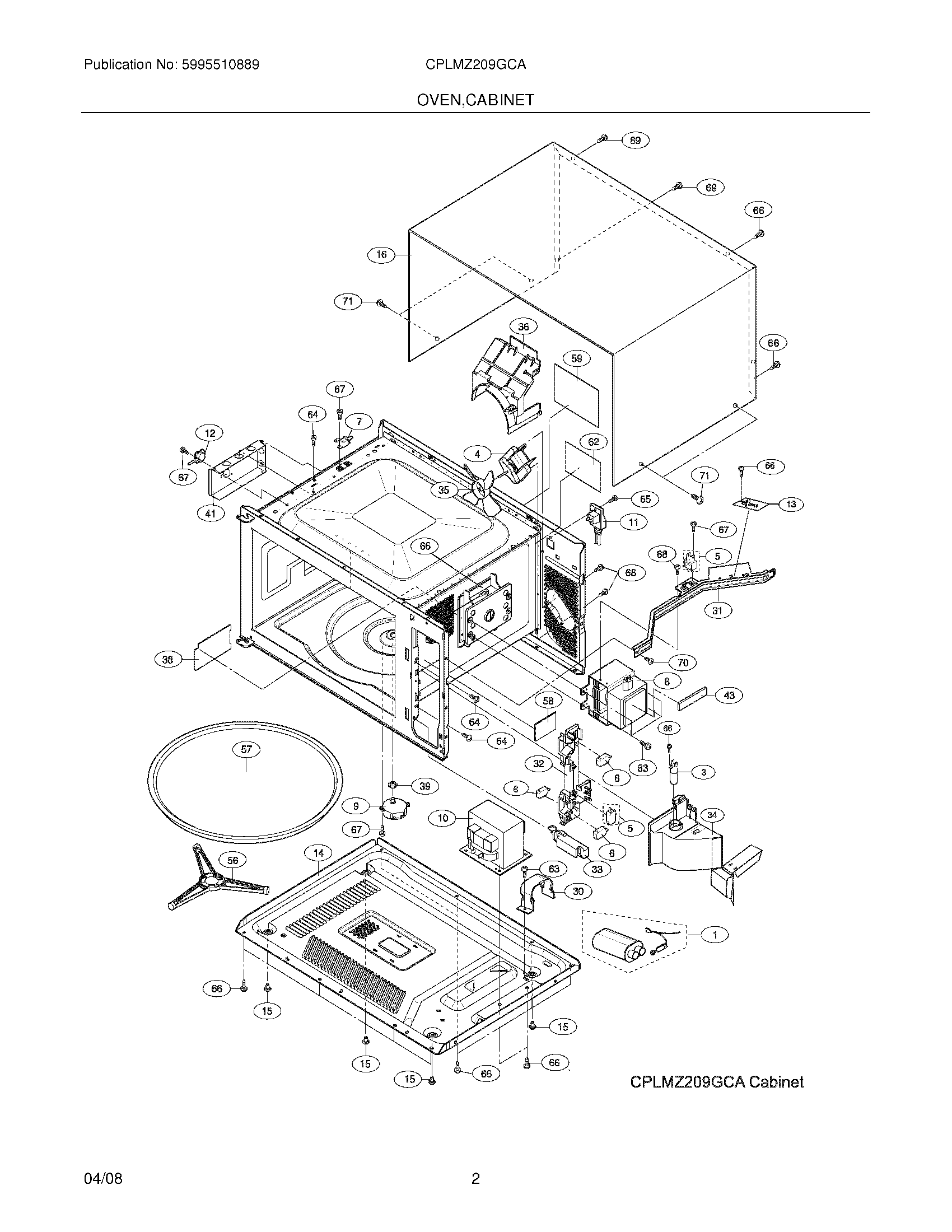

CPLMZ209GCA 03 – OVEN CABINET

Products

Position	Product
1	5304487566 Frigidaire Microwave Capacitor
3	5304500304 Frigidaire Microwave Lamp Assembly with SO
4	5304493152 Frigidaire Microwave Motor
5	5304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
6	5304493153 Frigidaire Microwave Door Switch
7	5304440780 Frigidaire Microwave Fuse
8	5304448837 Frigidaire Microwave Magnetron
9	5304448832 Frigidaire Microwave Motor
10	5304473321 Frigidaire Microwave Transformer
11	5304440784 Frigidaire Microwave Power Cord
12	5304440785 Frigidaire Microwave Sensor
13	5304493151 Frigidaire Microwave Filter
14	WCI 5304440814
15	WCI 5304440815
16	WCI 5304440816
30	WCI 5304440838
31	WCI 5304462313
32	5304503439 Frigidaire Microwave Latch Hook
33	5304485407 Frigidaire Microwave Door Release Assembly
34	WCI 5304440842
35	WCI 5304440843
36	WCI 5304440844
38	5304462314 Frigidaire Microwave Waveguide Cover
39	WCI 5304440288
41	WCI 5304440847
43	WCI 5304441910
56	5304467717 Frigidaire Microwave Glass Tray Support
57	5304529482 Frigidaire Glass Tray Assembly
58	5304440334 Frigidaire Microwave Label
59	5304440333 Frigidaire Label
62	5304465314 Frigidaire Label
63	WCI 5303319636
64	5303319641 Frigidaire Screw
65	5304462315 Frigidaire Microwave Screw
67	5304453725 Frigidaire Screw
68	5304450253 Frigidaire Microwave Screw
69	5304440873 Frigidaire Screw
70	5304451553 Frigidaire Microwave Screw
71	WCI 5304452261
