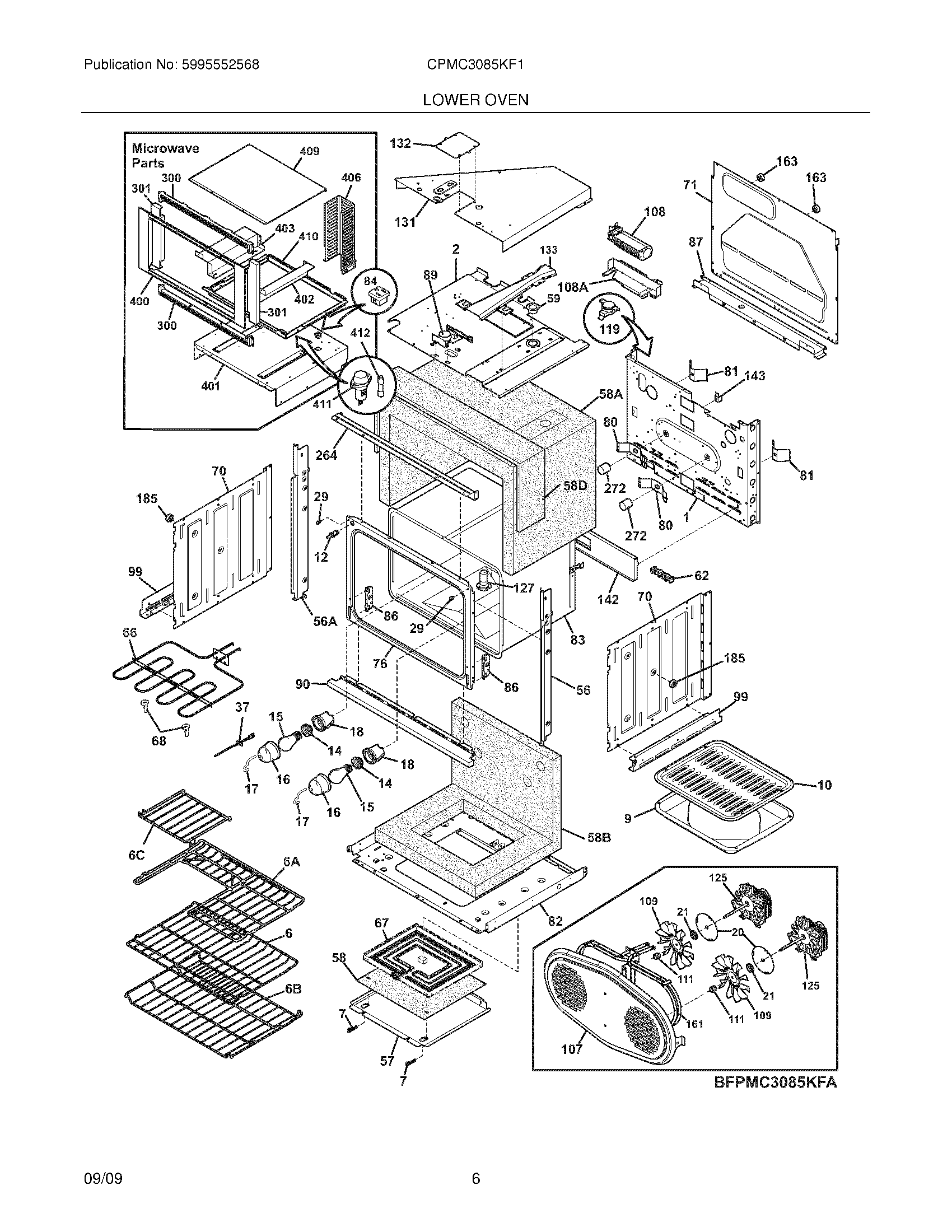

CPMC3085KF1 07 – LOWER OVEN

CPMC3085KF1 07 – LOWER OVEN

Written by

in

CPMC3085KF1 07 – LOWER OVEN

Products

PositionProduct
NI5303323277 Frigidaire Oven Screw
NIWCI 318402209
NISCREW, TOP TRIM, 6-32 X 3/8, BLACK, (2) (NOT ILLUSTRATED
NI5303211311 Frigidaire Refrigerator Screw
NIWCI 318368501
NI5304461333 Frigidaire Oven Screw
NIWCI 318532183
NI5304506955 Frigidaire Harness Assembly
NIWCI 5304400192
NIWCI 318231870
NI5303324184 Frigidaire Wall Oven Range Screw
NI318165800 Frigidaire Oven Door Glass Spacer with Screw
NI5304436875 Frigidaire Oven Screw
NISCREW,TRUSS HEAD,8-18 X 0.375
NIWCI 318268099
NI5303323130 Frigidaire Oven Screw
NI5303323129 Frigidaire Oven Screw
NI316205500 Frigidaire Oven Nut
NI5303323139 Frigidaire Oven Screw
NI5304453707 Frigidaire Oven Screw
NI5304415832 Frigidaire Oven Screw
NI5304480396 Frigidaire Screw
1WCI 318259224
2WCI 318258957
6CWCI 318929702
6AWCI 318926803
6BWCI 318919801
6318922301 Frigidaire Oven Rack
7318368300 Frigidaire PIN
9WCI 5303317977
10WCI 5303317976
12316445501 Frigidaire Oven Switch
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
165304524341 Frigidaire Lens
17WCI 5304400195
18WCI 318222400
20WCI 318389400
21318389000 Frigidaire Oven Seal
29316517600 Frigidaire Oven Spacer
37316217002 Frigidaire Oven Temperature Probe
56AWCI 318276329
56WCI 318276328
57WCI 318361610
58WCI 318330501
58BWCI 318926906
58AWCI 318536600
58DWCI 318372006
59318072577 Frigidaire Duct
625304409888 Frigidaire Oven Terminal Block with Hardware
66318255807 Frigidaire Oven Element
67WCI 318601601
685304403015 Frigidaire Oven Support
70WCI 318259105
71WCI 318260007
76WCI 318056292
80WCI 5303320846
81WCI 318192400
82WCI 318258775
83WCI 318261438
84WCI 318146833
86318561100 Frigidaire Receptacle
87WCI 318260622
89318261229 Frigidaire Oven Motor
90WCI 318259828
99318256201 Frigidaire Oven Bracket
107WCI 318550200
108WCI 318251300
108318073028 Frigidaire Oven Motor
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
119318004902 Frigidaire Oven Switch
1255304463302 Frigidaire Convection Motor
127WCI 318357001
131WCI 318272901
132318003000 Frigidaire Plate
133WCI 318347800
142WCI 318123910
143318172904 Frigidaire Bracket
161WCI 318535300
163Spacer,(4)
185318531800 Frigidaire Oven Spacer
264WCI 318257723
272WCI 318249409
300WCI 318925002
301WCI 318925104
400WCI 318930203
401WCI 318297207
402WCI 318276204
403WCI 318276206
406WCI 318277201
409WCI 318295301
410WCI 318297111
412318647300 Frigidaire Microwave Fuse and Holder
