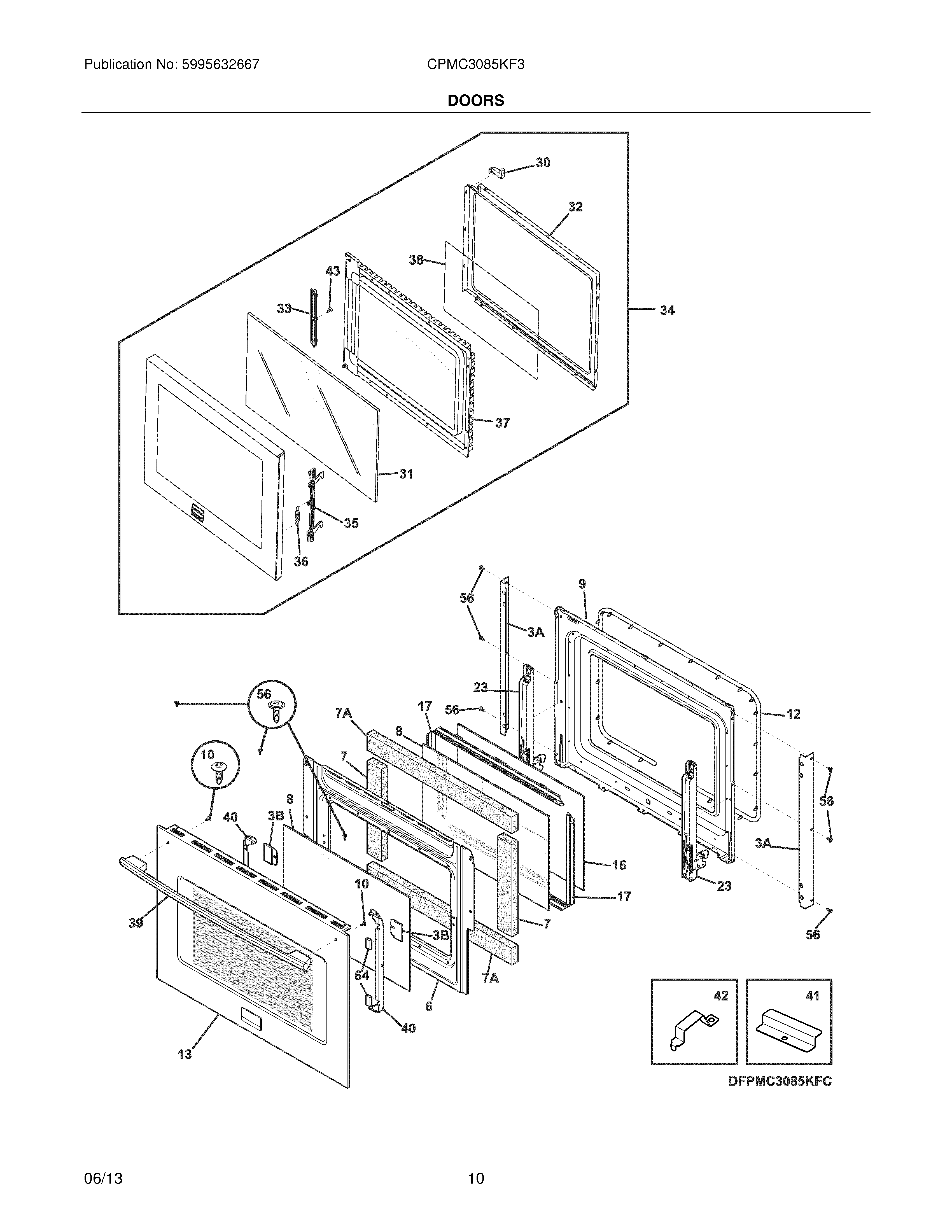

CPMC3085KF3 09 – DOORS

Products

Position	Product
NI	5303300265 Frigidaire Oven Screw
NI	WCI 807661501
NI	316418900 Frigidaire Oven Screw
NI	5304461333 Frigidaire Oven Screw
3A	WCI 318260401
3B	318262104 Frigidaire Oven Cover
6	Baffle,door
7	318372017 Frigidaire Insulation
7A	318372016 Frigidaire Insulation
8	5304503232 Frigidaire Oven Inner Door Glass
9	WCI 318411684
10	WCI 5304472906
12	318053132 Frigidaire Oven Gasket
13	WCI 318927820
16	WCI 318212210
17	318264733 Frigidaire Oven Spacer
23	Hinge,oven door ,(2)
30	5304442145 Frigidaire Microwave Door STOP
31	WCI 5304472853
32	5304440861 Frigidaire Microwave CHOKE Cover
33	WCI 5304440862
34	WCI 5304475289
35	5304441893 Frigidaire Microwave Latch
36	5304440316 Frigidaire Microwave Spring Assembly
37	WCI 5304472852
38	5304440860 Frigidaire Microwave Seal
39	WCI 316551500
40	318242702 Frigidaire Oven Bracket Assembly
41	318370602 Frigidaire Oven Bracket
42	318382302 Frigidaire Bracket
43	5304452259 Frigidaire Screw
56	5304436875 Frigidaire Oven Screw
64	318165800 Frigidaire Oven Door Glass Spacer with Screw
