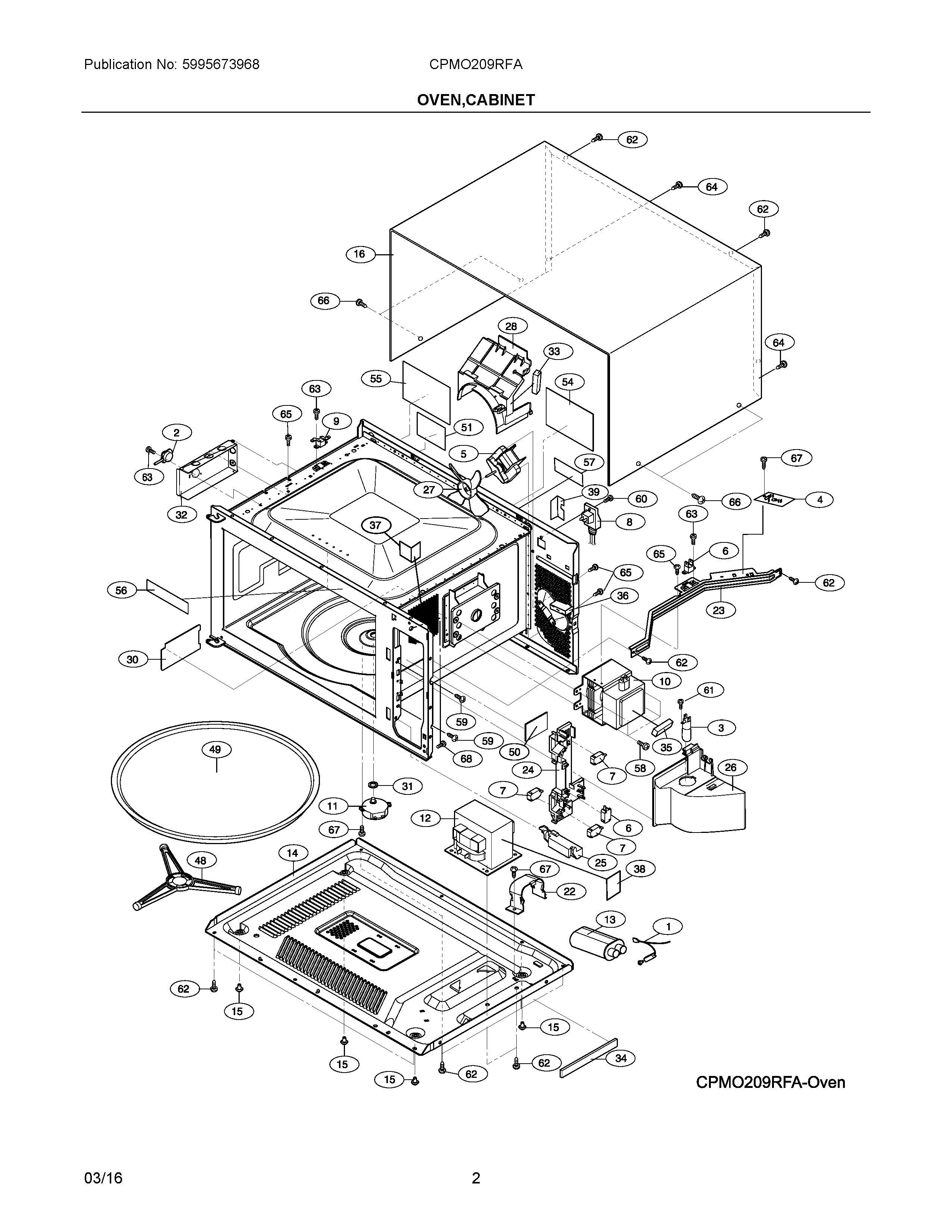

CPMO209RFA 02 – OVEN,CABINET

CPMO209RFA 02 – OVEN,CABINET

Written by

in

CPMO209RFA 02 – OVEN,CABINET

Products

PositionProduct
15304493150 Frigidaire Microwave Assembly Rectifier
25304440785 Frigidaire Microwave Sensor
35304500304 Frigidaire Microwave Lamp Assembly with SO
45304493151 Frigidaire Microwave Filter
55304493152 Frigidaire Microwave Motor
65304468224 Frigidaire Microwave Oven Relay Micro Switch Assembly
75304493153 Frigidaire Microwave Door Switch
85304440784 Frigidaire Microwave Power Cord
95304440780 Frigidaire Microwave Fuse
105304521745 Frigidaire Microwave Magnetron
115304440021 Frigidaire Microwave Oven Turntable Drive Motor
125304473321 Frigidaire Microwave Transformer
135304487566 Frigidaire Microwave Capacitor
14BASE, UNIT CHASSIS
15FOOT, CABINET SUPPORT
16CABINET, OUTER CASING, BLACK
225304478941 Frigidaire Retainer
23BRACKET, CHASSIS SUPPORT
245304503439 Frigidaire Microwave Latch Hook
255304485407 Frigidaire Microwave Door Release Assembly
26DUCT, MAGNETRON
275304493155 Frigidaire Microwave Fan Blade
28DUCT, COOLING FAN
305304462314 Frigidaire Microwave Waveguide Cover
315304467718 Frigidaire Microwave Bushing
32DUCT, HUMIDITY SENSOR
33CUSHION
34CUSHION, BASE PLATE
355304493207 Frigidaire Cushion
36CUSHION, FAN MOTOR
37CUSHION, CAVITY, CONTROL PANEL
38CUSHION, TRANSFORMER PAD
39BRACKET, ANGLE, POWER CORD
485304467717 Frigidaire Microwave Glass Tray Support
495304529482 Frigidaire Glass Tray Assembly
50LABEL, CAUTION-MONITOR
51LABEL, CAUTION, UL SCREW
54LABEL, HEIGHT CAUTION
55LABEL, HWC CAUTION
56LABEL, MENU
575304467770 Frigidaire Microwave Label
585304467780 Frigidaire Microwave Screw
595303319641 Frigidaire Screw
605304462315 Frigidaire Microwave Screw
61SCREW, 4 MM X 10 MM, WHITE
625304502863 Frigidaire Microwave Screw
63WCI 5304505545
645304440873 Frigidaire Screw
655304450253 Frigidaire Microwave Screw
665304467777 Frigidaire Microwave Screw
675304451550 Frigidaire Screw
685304505546 Frigidaire Screw
