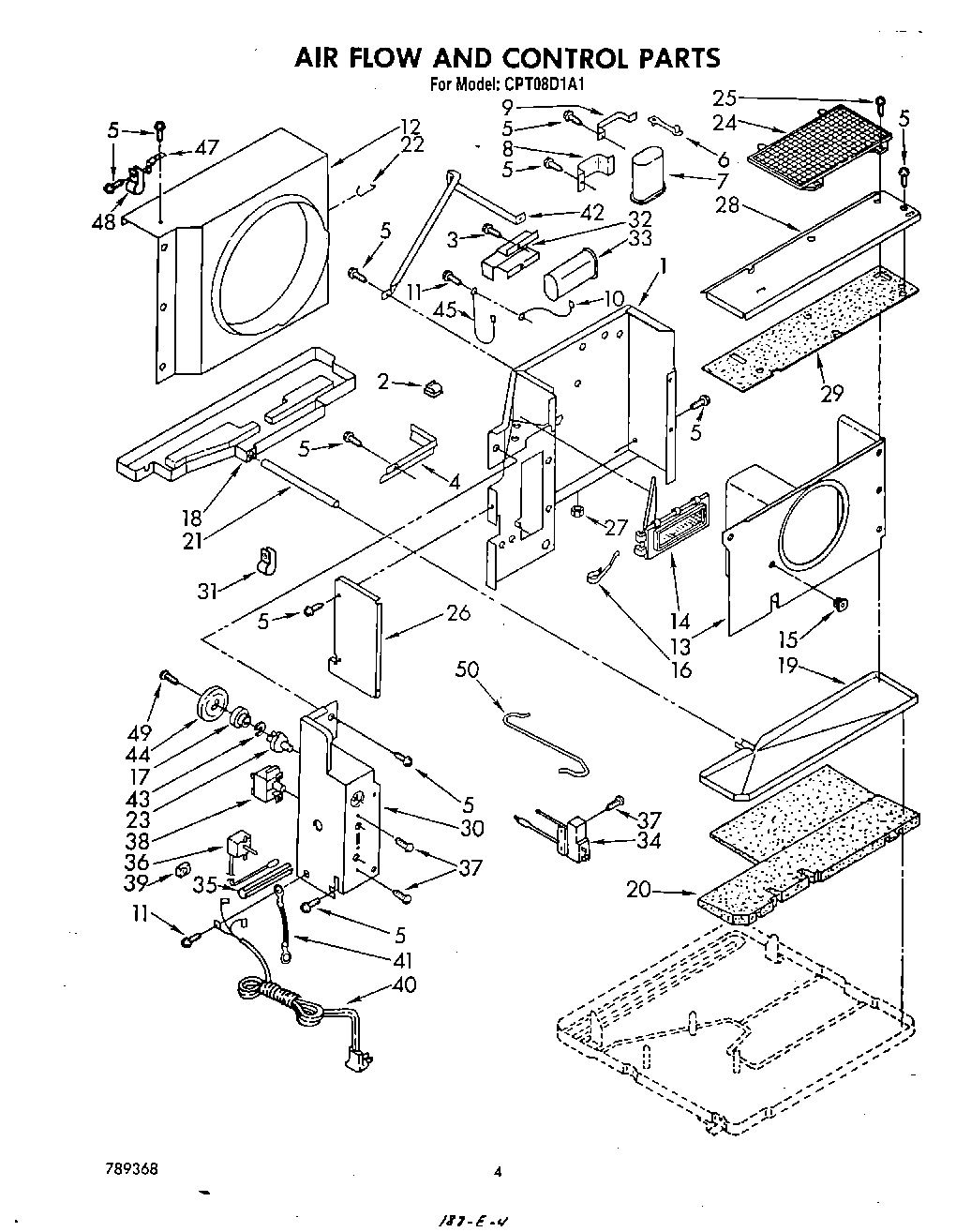

CPT08DA1A 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
	WPL LIT953096
	WPL LIT951455
	WPL LIT789368
	WPL LIT953077
1	Wall, Dividing
2	Capillary Clamp
3	Screw, Repair
4	Channel, Wiring
5	WP489069 Whirlpool Compactor Screw
6	Clamp, Cable
7	WPL 951444
8	Bracket (Upper)
9	Bracket (Lower)
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Shroud, Condenser
13	Housing, Blower Wheel
14	Door, Exhaust
15	Fastener, snap (2)
16	Spring, Door
17	Bushing, Shaft
18	Pan, Condensate
19	Pan, Evaporator Condensate
20	Insulation, Condensate Pan
21	Tube, Condensate
22	Clip, Shroud (3)
23	Shaft, Control
24	Guard, Evaporator Impeller
25	WP488729 Whirlpool Refrigerator Door Screw
26	Dividing Wall Assembly, L.S.
27	Clip, Speed
28	Cover, Evaporator
29	Insulation, Evaporator Cover
30	WPL 951086
31	Clamp, Cable
32	Bracket, Fan Motor Capacitor
33	capacitor, fan
34	WPL 950634
35	Insulation, Sleeve
36	Control, Temperature
37	Screw, 6-32 x .175
38	Switch, Rotary
39	Grommet
40	Cable, Appliance
41	Wire, Ground
42	Support, Unit
43	Washer
44	Cam, Exhaust
45	Ground Wire
47	Bracket
48	Clamp
49	WP98165 Whirlpool Screw
50	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
50	212643 Whirlpool Refrigerator Permagum Sealer
50	Wire, Red, (25 Ft.)
50	WP854334 Whirlpool Air Conditioner Sealing Strip
50	Insulation, Cabinet (Top)
50	WPL 647848
50	Cover, Winter (27 x 19 x 6 to 27“)
50	Wire, 25“ Roll (Black 12 GA.)
50	Lacquer, Starlight Gray (1/2 Pt. Uncut)
50	WPL 647847
50	Seal
50	Wire, 25“ Roll (White 12 GA.)
50	Wire, C
