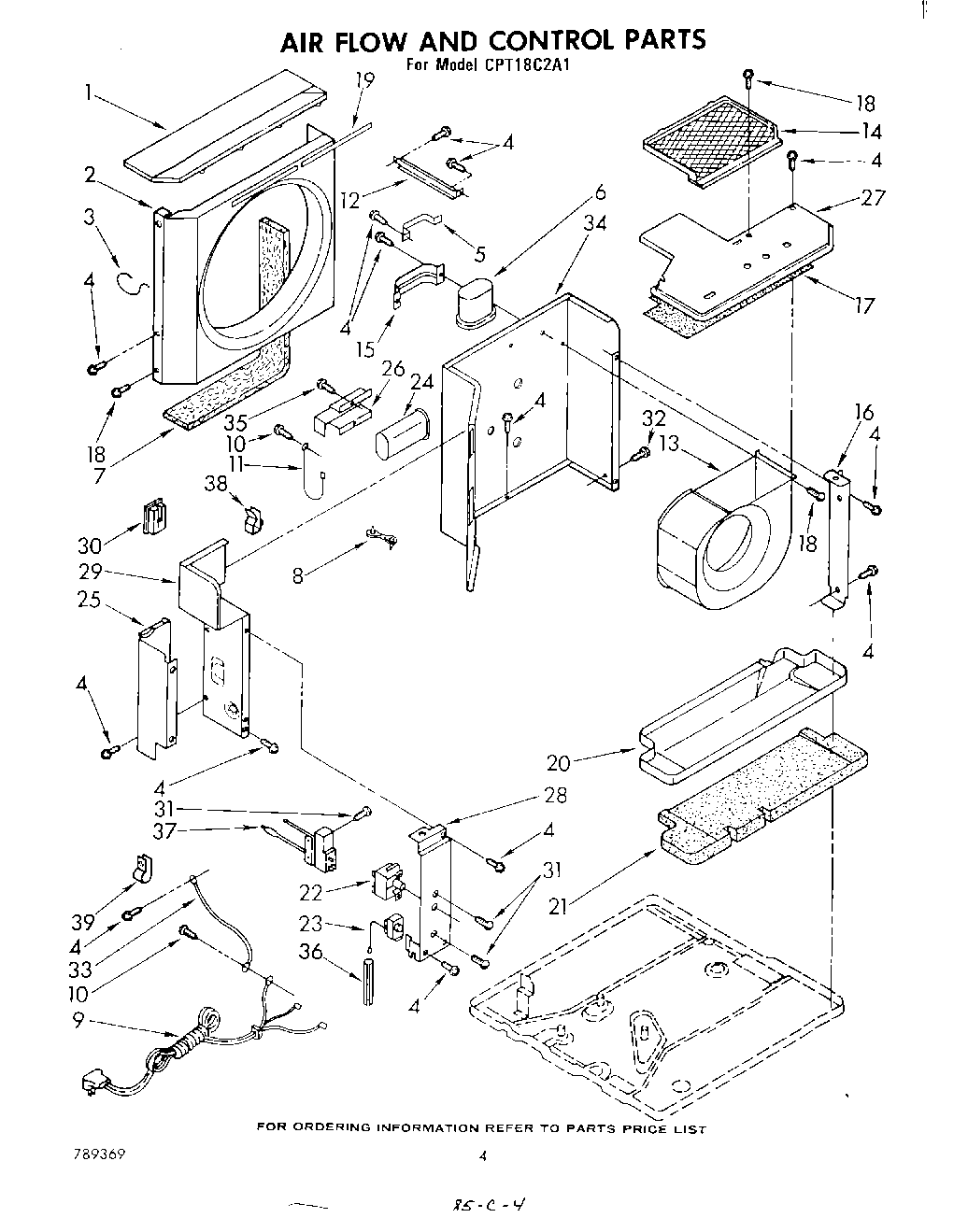

CPT18C2A1 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
	WPL LIT953095
	WPL LIT953077
	Sheet, Service Tech (Service Information)
	WPL LIT789369
1	Cover, Condenser Shroud
2	Shroud, Condenser
3	Clip, Shroud (2)
4	WP489069 Whirlpool Compactor Screw
4	WP308685 Whirlpool Microwave Screw
5	Bracket (Lower)
6	WPL 951516
7	Seal, Condenser Fin
8	Clamp, Cable
9	WPL 648411
10	WPW10141604 Whirlpool Screw
11	Wire, Ground (2)
12	support, unit (2)
13	Housing, Blower Wheel
14	Guard, Evaporator Impeller
15	Bracket (Upper)
16	Adapter, Evaporator Header Plate
17	WPL 948236
18	WP488729 Whirlpool Refrigerator Door Screw
19	seal, strip (shroud) (side)
19	WP854334 Whirlpool Air Conditioner Sealing Strip
20	Pan, Condensate
21	Insulation, Pan
22	WPL 950526
23	WPL 853749
24	Capacitor, Fan Motor
25	Cover, Control Access
26	Bracket, Fan Motor Capacitor
27	Cover, Evaporator
28	WPL 852219
29	Extension, Dividing Wall
30	Seal, Tube
31	Screw, 6-32 x .175
32	Screw, 8 x 3/8
33	Wire, Ground
34	Wall, Dividing
36	Sleeve, Insulator
37	WPL 950635
38	Clamp (2)
39	Clamp, Cable
39	Insulation, Base
39	Wire, 25“ Roll (White 12 GA.)
39	WPL 854937
39	WPL 854938
39	WPL 855438
39	Wire, Red, (25 Ft.)
39	212643 Whirlpool Refrigerator Permagum Sealer
39	Retainer, Cord (Winter Cover)
39	Cover, Winter (27 x 19 x 6 to 27“)
39	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
39	Wire, 25“ Roll (Black 12 GA.)
39	Lacquer, Starlight Gray (1/2 Pt. Uncut)
