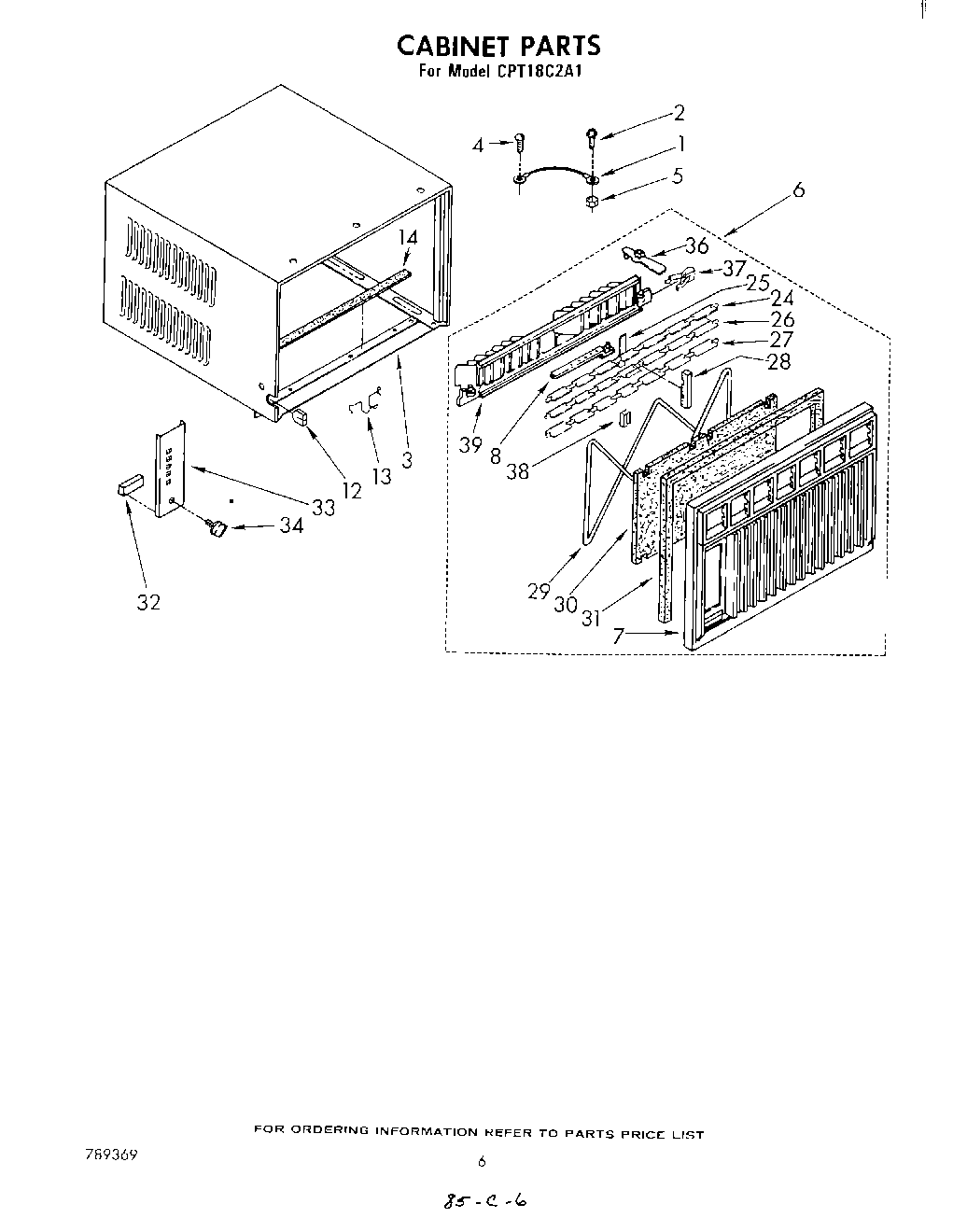

CPT18C2A1 04 – CABINET

Products

Position	Product
1	Wire, Ground
2	Screw, 8 x 3/8
3	Cabinet Also order Insulation NO.1157053 (3)
4	Screw, 8 x 3/8
5	WP486255 Whirlpool Air Conditioner Nut
6	WPL 953024
7	WPL 953018
8	Link, Louver (2)
12	Grommet, Appliance Cable
13	Clip, Mtg. (3)
14	Seal, Bottom
24	Louver, Horizontal (4)
25	Retainer (4)
26	louver, horizontal (handle)
27	louver, horizontal (notched)
28	Rack, Louver (2)
29	Retainer, Filter
30	Filter, Air
31	Seal, Front (Bottom)
31	Seal, Front (Top & Sides)
32	Spacer, Escutcheon Plate (2)
33	Escutcheon
34	Knob, Control (3)
36	Handle, Louver (2)
37	Detent Spring (2)
38	Clip, Retainer (4)
39	WPL 953064
