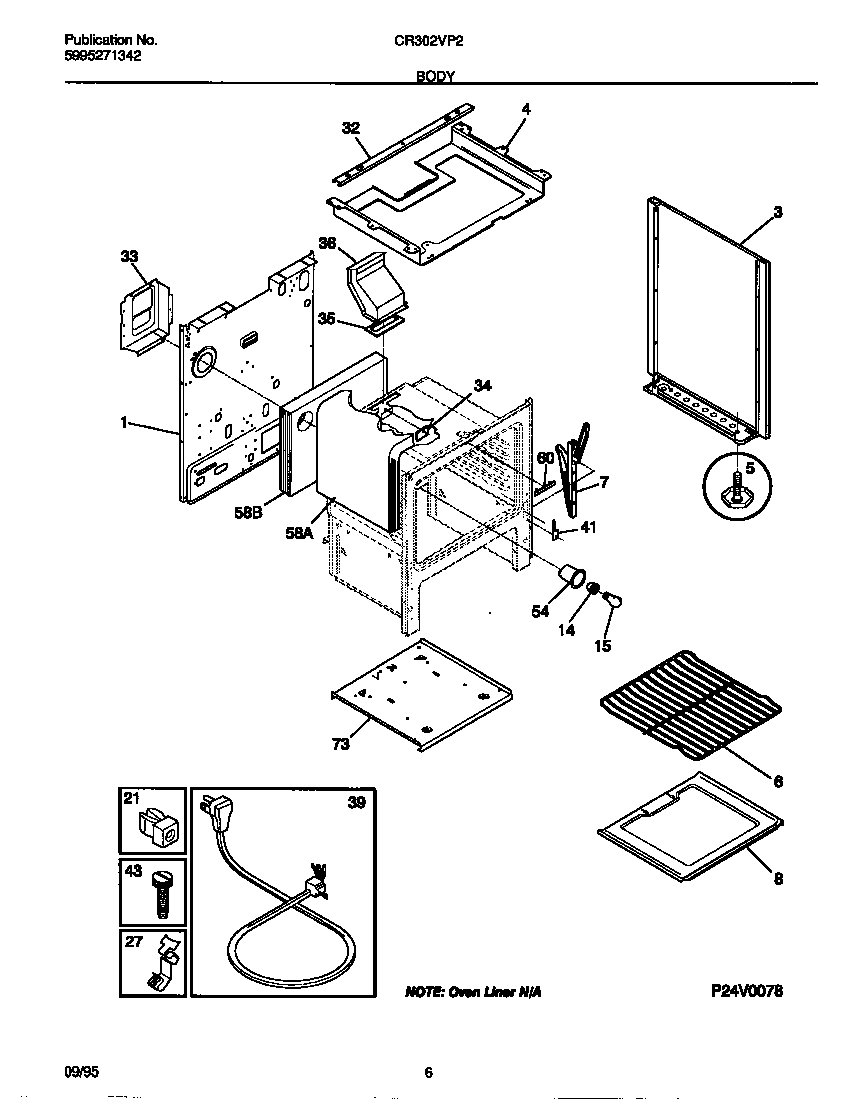

CR302VP2D03 04 – BODY

CR302VP2D03 04 – BODY

Written by

in

CR302VP2D03 04 – BODY

Products

PositionProduct
*40843WCI 316056500
*40845WCI 5303281584
*40842316064600 Frigidaire Oven Support
*40844WCI 5303280614
1WCI 316029410
3WCI 316081007
3WCI 316081006
4WCI 316067204
5DNUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
5C316116000 Frigidaire Screw
5ASCREW-LEVELING
5BWCI 3934058
6316067902 Frigidaire Oven Rack
7B3203010 Frigidaire Clip
7AHinge,oven door ,(2)
8BTTM-OVEN
14316116400 Frigidaire Oven Light Socket
15WCI 5300067016
21SPACER-BODYSIDE, (8)
275303284616 Frigidaire Range Bulb Clip Thermostat
32WCI 3203394
33WCI 316055601
34COVER-IGNITOR
35316542102 Frigidaire Flue Gasket
36WCI 3131904
39WCI 316001220
41WCI 3131570
43316282700 Frigidaire Oven Screw
54WCI 5303271606
58INSUL – OVEN BACK (NON-ILLUSTRATED)
58INSULATION, OVEN WRAPPER
60COVER-OVEN FRONT
73BASE-BROIL
