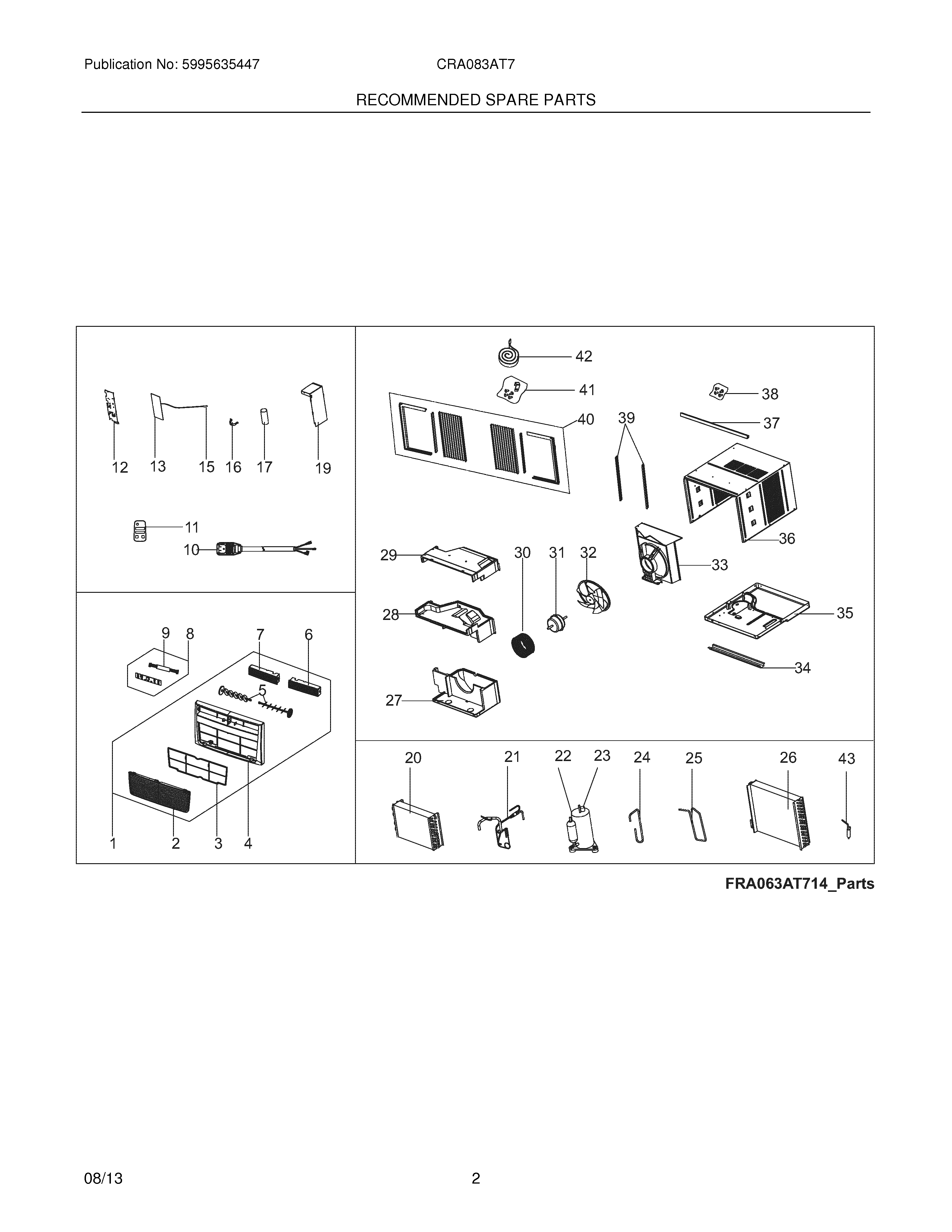

CRA083AT718 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477067
2	Panel,front grille ,tilt-out
3	Filter,air ,plastic frame
4	WCI 5304477068
5	WCI 5304477050
6	5304477051 Frigidaire LOUVER
7	5304477052 Frigidaire LOUVER
8	PC Board,display/input
9	5304482356 Frigidaire Wire
10	Power Cord,electric ,LCDI
11	5304476802 Frigidaire Air Conditioner Remote Control
12	WCI 5304477053
13	WCI 5304487221
15	5304504724 Frigidaire Sensor
16	Strap,capacitor clamp
17	WCI 5304476003
19	WCI 5304486035
20	Evaporator,with ,capillary tube
21	Ã‚Â· Tube,capillary
22	5304489721 Frigidaire Air Conditioner Compressor
23	5304492022 Frigidaire Air Conditioner Overload Protector
24	Tube,suction
25	Tube,discharge
26	WCI 5304492025
27	WCI 5304486052
28	WCI 5304492026
29	WCI 5304486039
30	Blower Wheel,centrifugal fan
31	Motor,fan
32	5304483089 Frigidaire Blade Fan
33	Shroud,condenser/fan
34	WCI 5304483091
35	Base,unit chassis
36	WCI 5304483093
37	Rail,shutter track ,top
38	Screw Kit,top rail mount
39	WCI 5304476523
40	WCI 5304476524
41	5304491953 Frigidaire Air Conditioner Hardware
42	Seal kit,foam ,sash filler
43	5304476201 Frigidaire Air Conditioner Filter Drier
