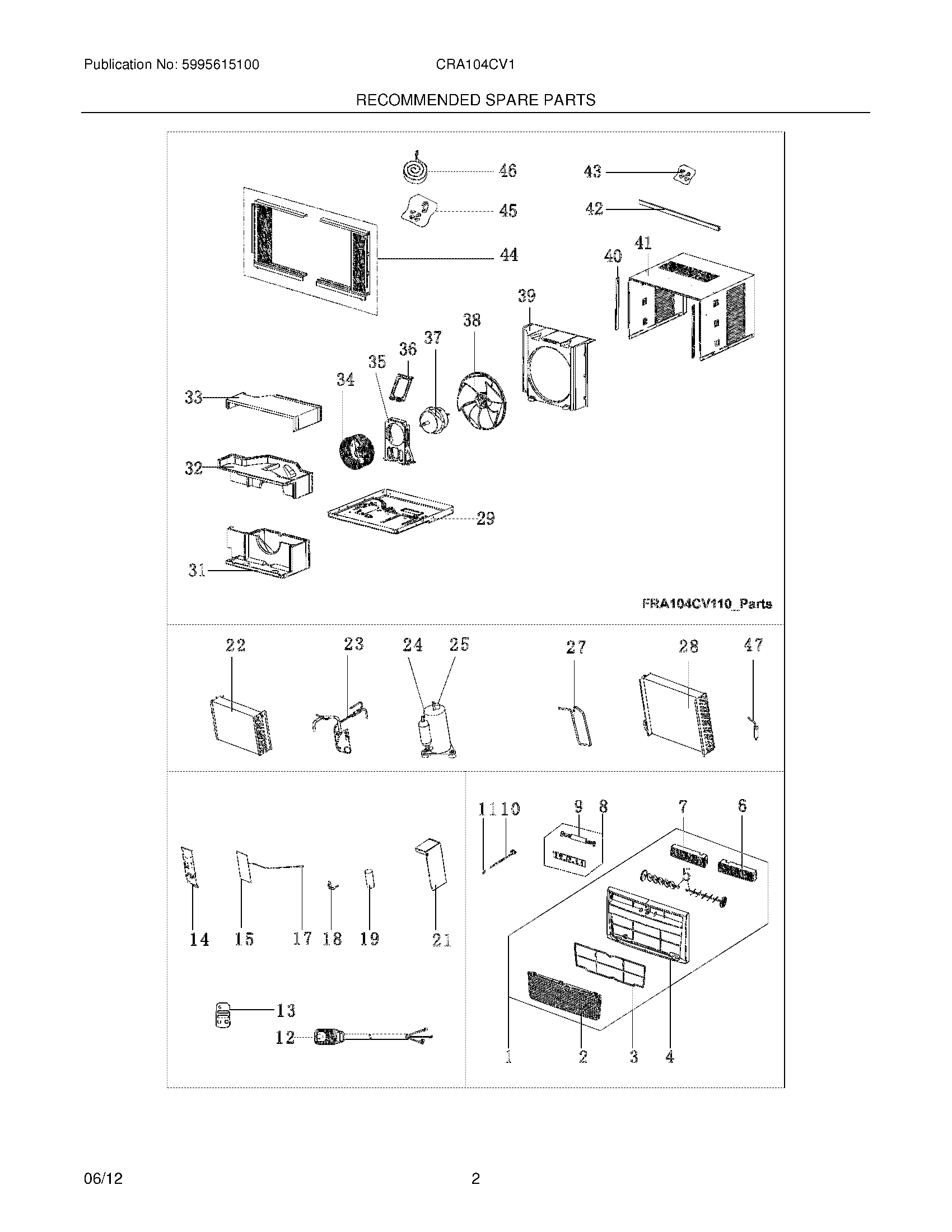

CRA104CV110 03 – RECOMMENDED SPARE PARTS

CRA104CV110 03 – RECOMMENDED SPARE PARTS

Written by

in

CRA104CV110 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476841
25304476793 Frigidaire Air Conditioner Panel
35304535830 Frigidaire Filter
4WCI 5304476842
5WCI 5304476796
75304476798 Frigidaire Air Conditioner Louver
8PC Board,display/input
95304482356 Frigidaire Wire
105304476178 Frigidaire Air Conditioner Door Assembly
115304476179 Frigidaire Air Conditioner Sleeve
125304476180 Frigidaire Power Cord Air Conditioner
135304476802 Frigidaire Air Conditioner Remote Control
14Cover,control box
15WCI 5304487221
175304476053 Frigidaire Air Conditioner Sensor
18Strap,capacitor clamp
19WCI 5304476003
21WCI 5304487222
22WCI 5304485964
23WCI 5304485965
24WCI 5304476056
25WCI 5304476293
27Tube,discharge
28WCI 5304476233
29Base,unit chassis
31Scroll,blower housing ,bottom
32Scroll,blower housing ,middle
33Scroll,blower housing ,top
345304485443 Frigidaire Air Conditioner Blower Wheel
35Support,motor mount ,left
36Support,motor mount ,right
37WCI 5304485442
385304476059 Frigidaire Air Conditioner Fan Blade
39Shroud,condenser fan
40Retainer,shutter ,cabinet sides
41Cabinet,wrapper/sleeve
42WCI 5304476843
43Screw Kit,top rail mount
445304476200 Frigidaire Air Conditioner Window Filler Kit
45WCI 5304472192
46Seal kit,foam ,sash filler
475304476201 Frigidaire Air Conditioner Filter Drier
