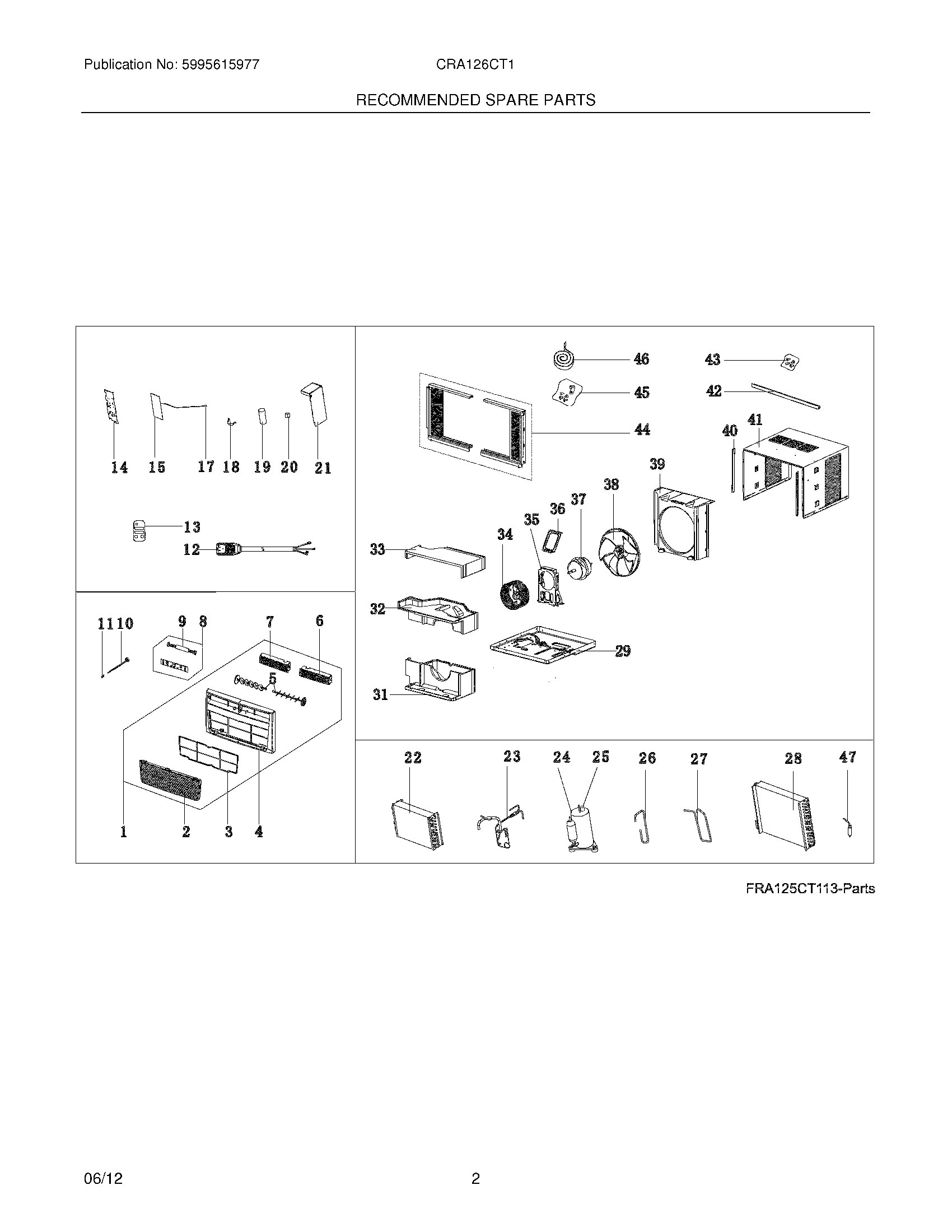

CRA126CT115 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476848
2	5304476793 Frigidaire Air Conditioner Panel
3	5304535830 Frigidaire Filter
4	5304476849 Frigidaire FRAME
5	WCI 5304476796
7	5304476798 Frigidaire Air Conditioner Louver
8	WCI 5304476850
9	5304482356 Frigidaire Wire
10	5304476178 Frigidaire Air Conditioner Door Assembly
11	5304476179 Frigidaire Air Conditioner Sleeve
12	5304476180 Frigidaire Power Cord Air Conditioner
13	WCI 5304476852
14	Cover,control box
15	WCI 5304487534
17	5304476053 Frigidaire Air Conditioner Sensor
18	Strap,capacitor clamp
19	5304476066 Frigidaire Air Conditioner Capacitor
20	Ionizer,anion generator
21	WCI 5304487222
22	WCI 5304485981
23	WCI 5304487538
24	WCI 5304476069
25	WCI 5304476296
26	WCI 5304485982
27	WCI 5304476232
28	WCI 5304476233
29	Base,unit chassis
31	Scroll,blower housing ,bottom
32	Scroll,blower housing ,middle
33	Scroll,blower housing ,top
34	5304485443 Frigidaire Air Conditioner Blower Wheel
35	Support,motor mount ,left
36	Support,motor mount ,right
37	Motor,fan
38	5304476059 Frigidaire Air Conditioner Fan Blade
39	Shroud,condenser fan
40	Retainer,shutter ,cabinet sides
41	Cabinet,wrapper/sleeve
42	WCI 5304476843
43	Screw Kit,top rail mount
44	5304476200 Frigidaire Air Conditioner Window Filler Kit
45	WCI 5304472192
46	Seal kit,foam ,sash filler
47	5304476201 Frigidaire Air Conditioner Filter Drier
