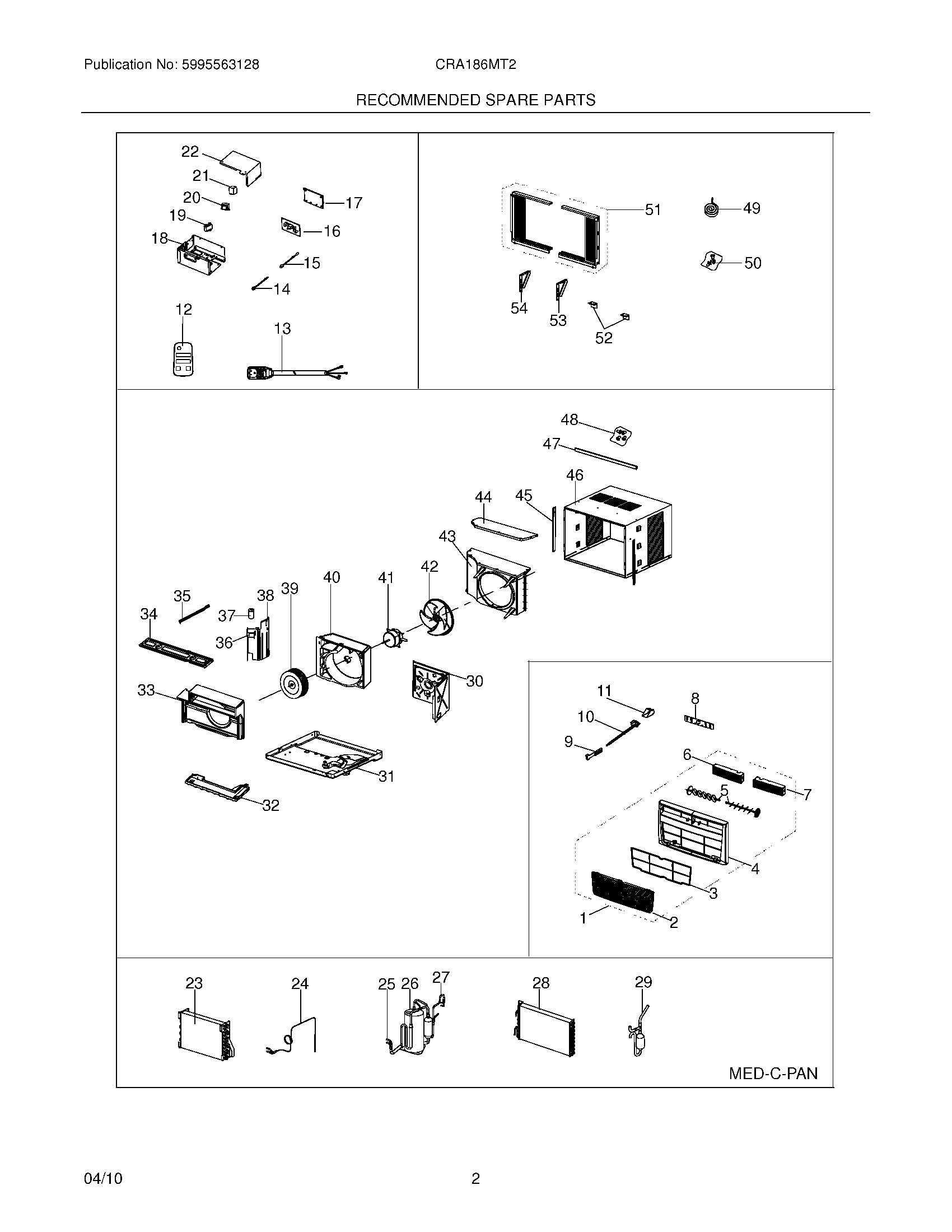

CRA186MT21 03 – RECOMMENDED SPARE PARTS

CRA186MT21 03 – RECOMMENDED SPARE PARTS

Written by

in

CRA186MT21 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304476952
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4WCI 5304476953
55304476946 Frigidaire Louver
6WCI 5304476948
7WCI 5304476947
8WCI 5304476954
9Handle,vent control
10Door,vent control ,with lever
115304476359 Frigidaire Air Conditioner Link Assembly
12WCI 5304476852
13Power Cord,electric ,LCDI
145304512375 Frigidaire Air Conditioner Sensor
15Sensor,temperature ,ambient
165304476951 Frigidaire Air Conditioner PC Board
17WCI 5304476251
18WCI 5304476361
195304472609 Frigidaire Air Conditioner Capacitor
205304471063 Frigidaire Air Conditioner Transformer
215304472418 Frigidaire Air Conditioner IONIZER
22WCI 5304476314
23WCI 5304476377
24WCI 5304476378
25WCI 5304476319
26WCI 5304475740
27WCI 5304476379
28WCI 5304476380
295304476322 Frigidaire Air Conditioner Filter Drier
30WCI 5304472538
31Base,unit chassis
32Tray,drip pan
33Scroll,blower housing ,front
34WCI 5304476326
35WCI 5304476327
36Strap,capacitor clamp
37WCI 5304475736
38WCI 5304476371
395304472407 Frigidaire Air Conditioner Blower Wheel
40Scroll,blower housing ,rear
415304483059 Frigidaire Air Conditioner Motor
42BLADE-FAN
43WCI 5304476329
44WCI 5304476330
45Retainer,shutter ,cabinet sides
46WCI 5304476332
47Rail,shutter track ,top angle
48Screw Kit,top rail mount
49WCI 5304472548
50Hardware,mounting ,screws/locks
51Window Filler Kit,slider panel
52Bracket,sill angle
53WCI 5304476268
54WCI 5304476269
