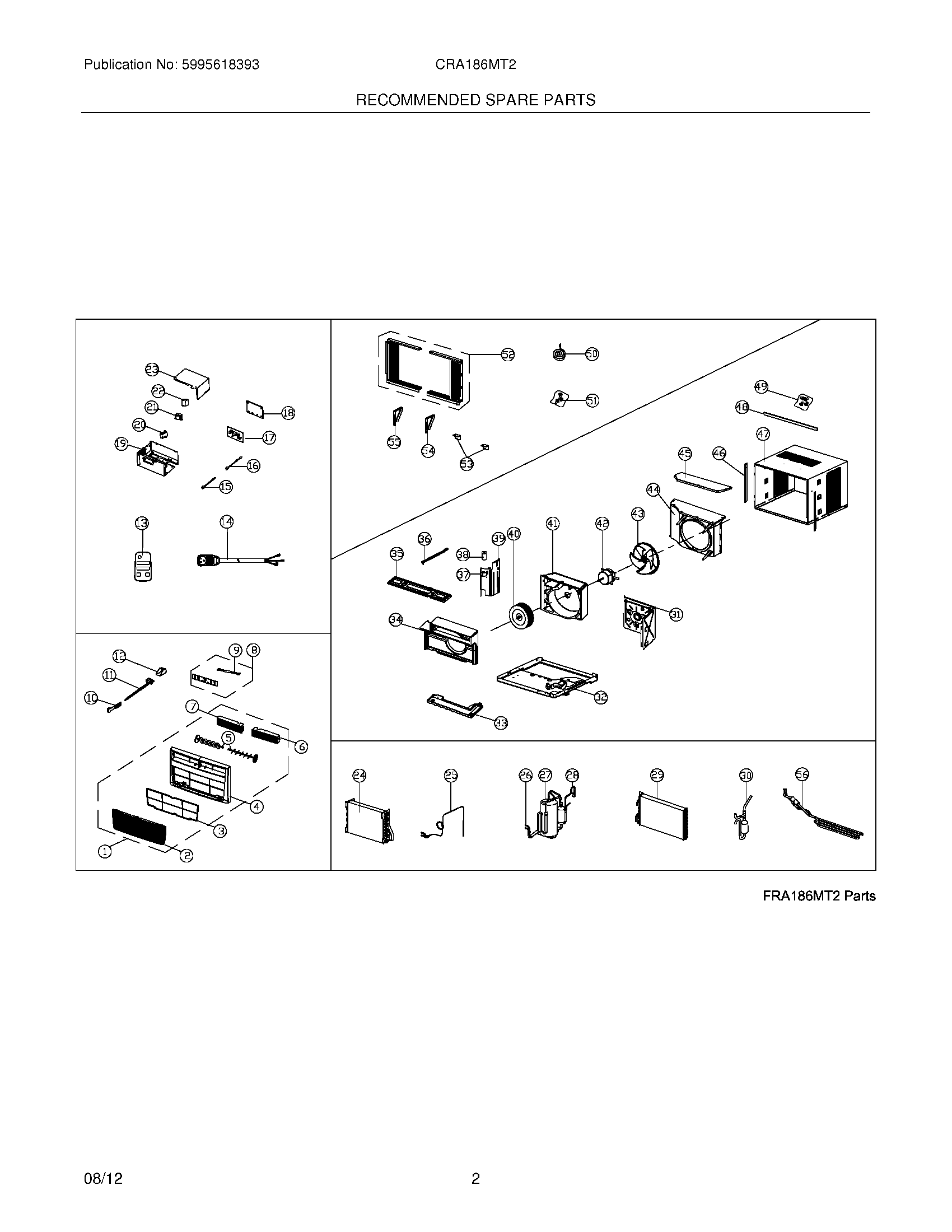

CRA186MT215 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304476952
2	Panel,front grille ,tilt-out
3	5304525598 Frigidaire Air Conditioner Filter
4	WCI 5304476953
5	5304476946 Frigidaire Louver
6	WCI 5304476947
7	WCI 5304476948
8	WCI 5304476949
9	WCI 5304482877
10	Handle,vent control
11	Door,vent control ,with lever
12	5304476359 Frigidaire Air Conditioner Link Assembly
13	5304501878 Frigidaire Remote Control
14	Power Cord,electric ,LCDI
15	5304512375 Frigidaire Air Conditioner Sensor
16	Sensor,temperature ,ambient
17	5304476951 Frigidaire Air Conditioner PC Board
18	WCI 5304476251
19	WCI 5304476361
20	5304482883 Frigidaire Air Conditioner Capacitor
21	5304471063 Frigidaire Air Conditioner Transformer
22	5304472418 Frigidaire Air Conditioner IONIZER
23	WCI 5304476314
24	WCI 5304486015
25	WCI 5304486016
26	WCI 5304486017
27	WCI 5304485448
28	WCI 5304486018
29	WCI 5304486019
30	5304476322 Frigidaire Air Conditioner Filter Drier
31	WCI 5304472538
32	Base,unit chassis
33	Tray,drip pan
34	Scroll,blower housing ,front
35	WCI 5304476326
36	WCI 5304476327
37	Strap,capacitor clamp
38	WCI 5304475736
39	WCI 5304486009
40	5304472407 Frigidaire Air Conditioner Blower Wheel
41	Scroll,blower housing ,rear
42	5304483059 Frigidaire Air Conditioner Motor
43	BLADE-FAN
44	WCI 5304486011
45	WCI 5304476330
46	Retainer,shutter ,cabinet sides
47	Cabinet,wrapper/sleeve
48	Rail,shutter track ,top angle
49	Screw Kit,top rail mount
50	WCI 5304472548
51	Hardware,mounting ,screws/locks
52	Window Filler Kit,slider panel
53	Bracket,sill angle
54	Bracket,mounting ,right window
55	Bracket,mounting ,left window
56	WCI 5304486020
