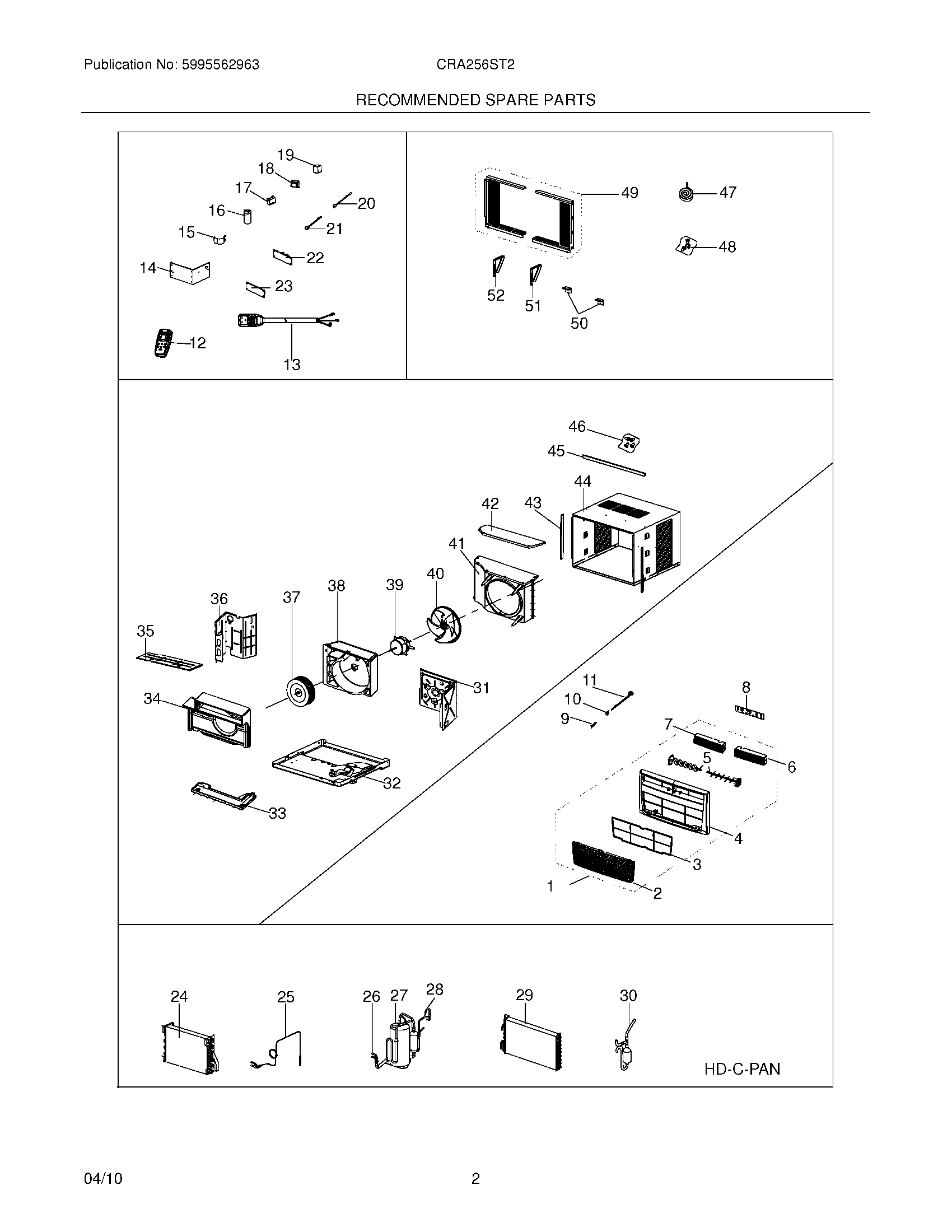

CRA256ST20 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304477142
2	5304477143 Frigidaire Front Grille
3	FILTER
4	WCI 5304477145
5	5304477146 Frigidaire LOUVER
6	5304477147 Frigidaire Louver
7	5304477148 Frigidaire LOUVER
8	WCI 5304476954
9	Handle,vent control
10	WCI 5304476244
11	5304477149 Frigidaire Air Conditioner Door Assembly
12	WCI 5304476852
13	Power Cord,electric ,LCDI
14	WCI 5304476248
15	WCI 5304476249
16	WCI 5304472621
17	5304472609 Frigidaire Air Conditioner Capacitor
18	5304471063 Frigidaire Air Conditioner Transformer
19	5304472418 Frigidaire Air Conditioner IONIZER
20	Sensor,temperature ,ambient
21	5304512375 Frigidaire Air Conditioner Sensor
22	5304476951 Frigidaire Air Conditioner PC Board
23	WCI 5304476251
24	WCI 5304476252
25	WCI 5304476253
26	WCI 5304476254
27	5304475741 Frigidaire Air Conditioner Compressor
28	WCI 5304477173
29	5304476256 Frigidaire Air Conditioner Condenser
30	5304476257 Frigidaire Air Conditioner Filter Drier
31	WCI 5304472351
32	Base,unit chassis
33	Tray,drip pan ,foam
34	WCI 5304476259
35	WCI 5304476260
36	WCI 5304476261
37	5304472407 Frigidaire Air Conditioner Blower Wheel
38	Scroll,blower housing ,rear
39	WCI 5304472353
40	BLADE-FAN
41	WCI 5304472355
42	WCI 5304472354
43	WCI 5304476263
44	WCI 5304477172
45	Rail,shutter track ,top channel
46	Screw Kit,top rail mount
47	Seal kit,foam ,sash & rails
48	Hardware,mounting ,screws/locks
49	Window Filler Kit,slider panels ,accordion
50	Bracket,sill angle
51	WCI 5304476268
52	WCI 5304476269
