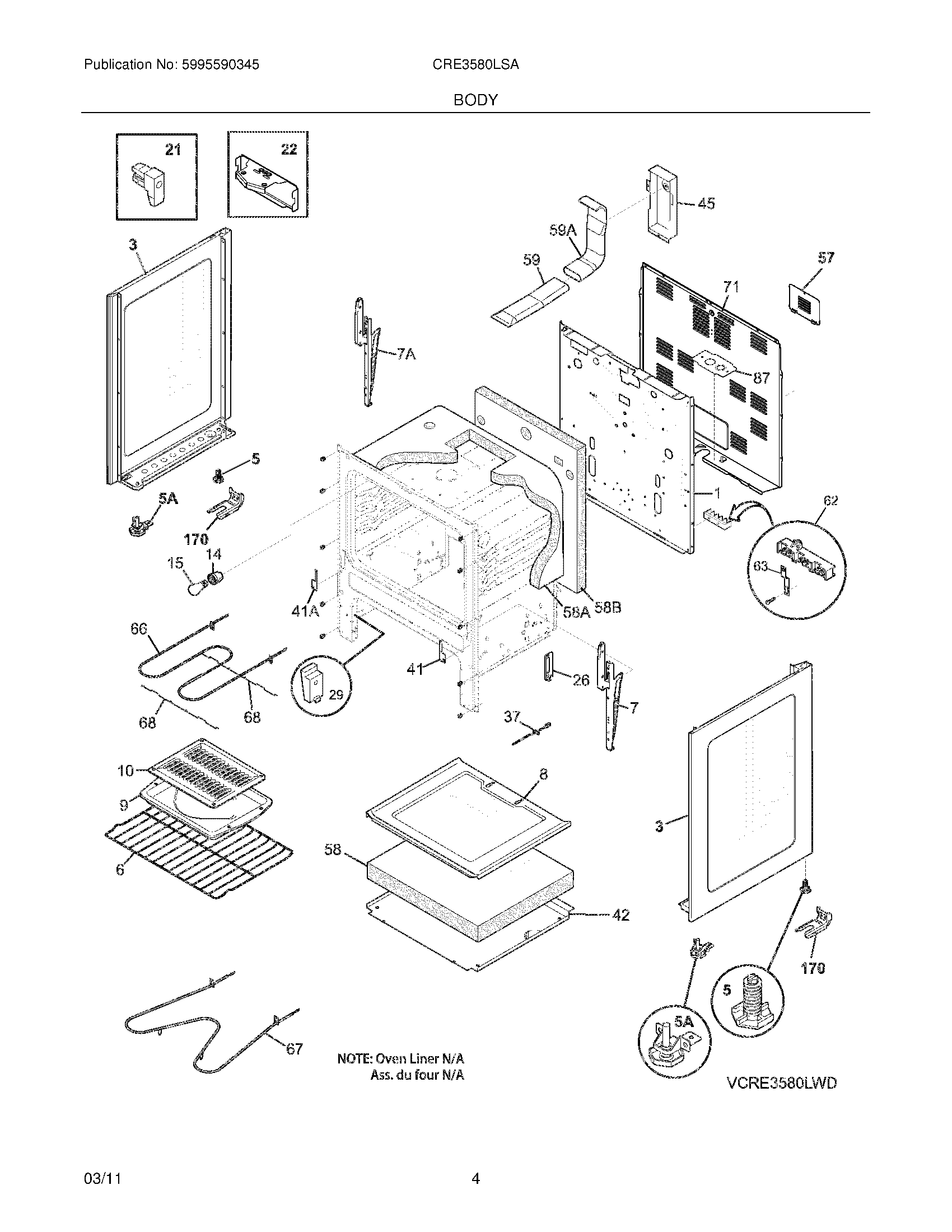

CRE3580LSA 05 – BODY

CRE3580LSA 05 – BODY

Written by

in

CRE3580LSA 05 – BODY

Products

PositionProduct
NI5303285179 Frigidaire Oven Door Screw
NI316205500 Frigidaire Oven Nut
NI316001017 Frigidaire Screw
NISPACER, SHIELD, REAR WALL
NIWCI 316444100
NIWCI 316256200
NIWASHER-BLACK
NI316210800 Frigidaire Button Plug
NI5304517513 Frigidaire Harness
NI316418901 Frigidaire Oven Screw
NIScrew,cup pt ,8-18 x 0.375 ,chrome
NI316089500 Frigidaire Oven Screw
NI316021105 Frigidaire Oven Screw
NI5303271648 Frigidaire Oven Screw
NI5303289910 Frigidaire Oven Screw
NI316021109 Frigidaire Oven Screw
1WCI 316201300
3316400144 Frigidaire Panel
3316400145 Frigidaire Panel Assembly
5A5304509869 Frigidaire Oven Leveling Leg Assembly
5316272900 Frigidaire Oven Leg Levelling Plastic Screw
6316067902 Frigidaire Oven Rack
7A316566205 Frigidaire Oven Hinge
7316566204 Frigidaire Oven Hinge
8WCI 316495903
9WCI 316081900
10Insert,broiler panOPTIONAL ACCESS0RY
14316116400 Frigidaire Oven Light Socket
15316538904 Frigidaire Oven Lamp Light
21316408000 Frigidaire Oven Clip Assembly
22316286300 Frigidaire Bodyside Bracket
26316206300 Frigidaire Oven Support
29807047102 Frigidaire Oven Front Drawer Glide
37316233903 Frigidaire Range Oven Temperature Sensor
41AWCI 316233500
41WCI 316233400
42SHIELD, WOOL, LOWER
45316234100 Frigidaire Oven Shield
57316283600 Frigidaire Oven Cover
58316403803 Frigidaire Insulation
58A316047707 Frigidaire Insulation
58B316054202 Frigidaire Insulation
59A316208304 Frigidaire Oven Tube
59316208201 Frigidaire Oven Tube
625303935271 Frigidaire Oven Terminal Block
635304536404 Frigidaire Strap
66316203200 Frigidaire Oven Broil Element 2400W
67316075103 Frigidaire Oven Bake Element
68316203400 Frigidaire Oven Support
71316283204 Frigidaire Oven Shield
87316081200 Frigidaire Oven Bracket
170316116000 Frigidaire Screw
170316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
