CRE383 03 – DOOR/DRAWER – Aparts

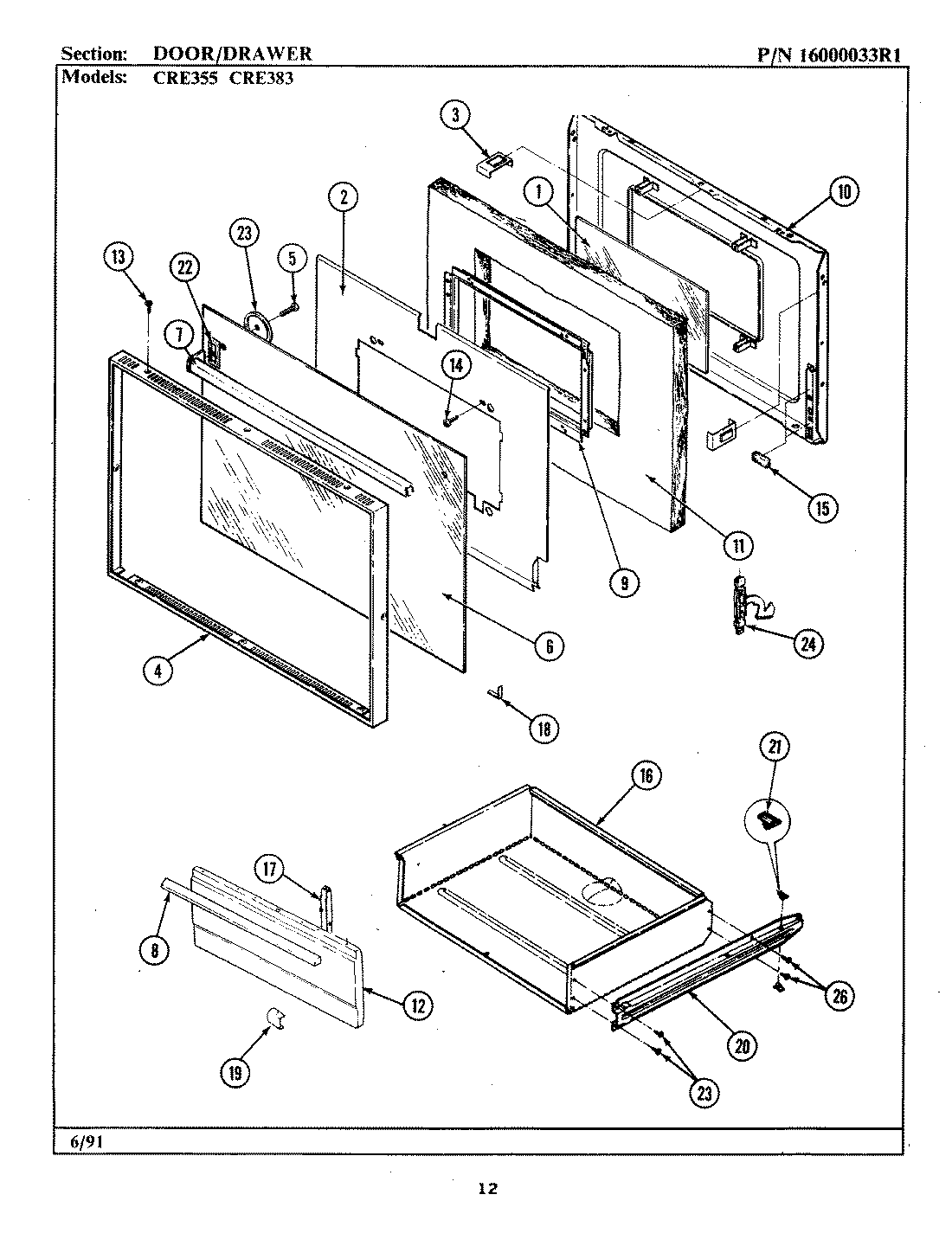

CRE383 03 – DOOR/DRAWER

Products

Position	Product
NI	74002481 Whirlpool Screw
1	MAY 7902P035-60
2	MAY 3601F094-51
3	CLIP, DOOR
4	MAY 7706P246-60
5	MAY 7101P080-60
6	MAY 7902P297-60
7	MAY 7701P045-60
8	MAY 7701P084-60
9	MAY 3603F013-80
10	MAY 2402W154-19
10	MAY 2402W091-23
11	MAY 7002P012-60
12	MAY 2416F029-74
12	MAY 2416F029-71
12	MAY 2416F029-70
13	WP7101P126-60 Whirlpool Screw
14	MAY 7101P061-60
15	MAY 7208P011-60
16	MAY 3405F008-80
17	MAY 3802F044-51
18	MAY 8010P045-60
19	MAY 3801F031-51
20	MAY 3406F020-80
20	MAY 3406F026-80
21	MAY 8016P009-60
21	MAY 8016P004-60
22	MAY 8010P052-60
23	MAY 8010P051-60
24	MAY 3420A033-34
