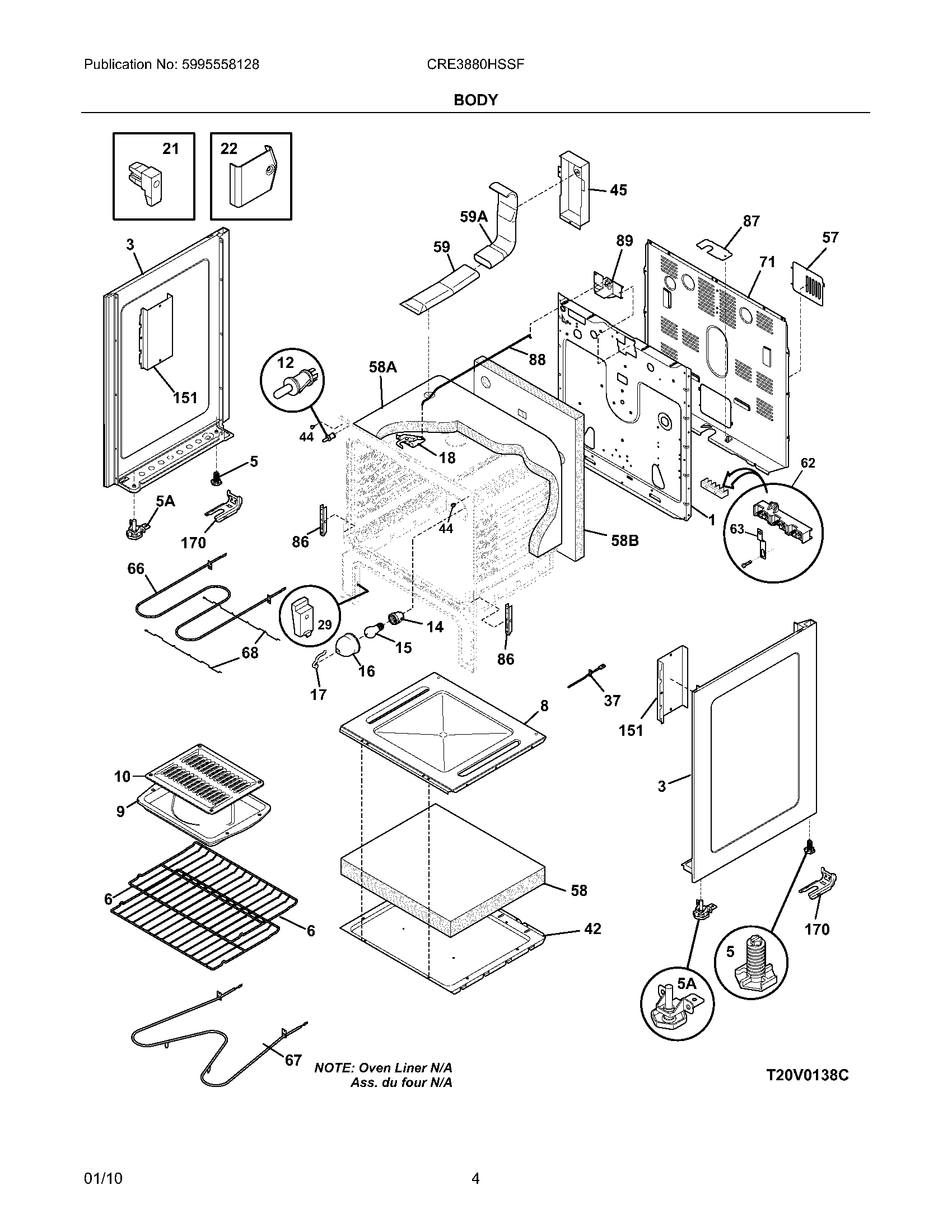

CRE3880HSSF 05 – BODY

CRE3880HSSF 05 – BODY

Written by

in

CRE3880HSSF 05 – BODY

Products

Position	Product
NI	5303285179 Frigidaire Oven Door Screw
NI	5308014215 Frigidaire Oven Screw
NI	316001017 Frigidaire Screw
NI	316089500 Frigidaire Oven Screw
NI	316021109 Frigidaire Oven Screw
NI	316468101 Frigidaire Cleaner Assembly
NI	WCI 316506279
NI	316418900 Frigidaire Oven Screw
NI	316418901 Frigidaire Oven Screw
NI	316021105 Frigidaire Oven Screw
NI	316260800 Frigidaire Screw-SHOULDER
NI	316506000 Frigidaire Oven Bracket
NI	WCI 316256200
NI	WASHER-BLACK
NI	316542203 Frigidaire Insulator
NI	316205500 Frigidaire Oven Nut
1	WCI 316401802
3	316400145 Frigidaire Panel Assembly
3	316400144 Frigidaire Panel
5A	5304509869 Frigidaire Oven Leveling Leg Assembly
5	316272900 Frigidaire Oven Leg Levelling Plastic Screw
6	316496201 Frigidaire Oven Rack
8	316400601 Frigidaire Oven Range Bottom Panel
9	WCI 316081900
10	Insert,broiler panOPTIONAL ACCESS0RY
12	316445501 Frigidaire Oven Switch
14	316116400 Frigidaire Oven Light Socket
15	316538904 Frigidaire Oven Lamp Light
16	5304524341 Frigidaire Lens
17	316087500 Frigidaire Oven Retainer
18	316405800 Frigidaire Assembly Latch
21	316408000 Frigidaire Oven Clip Assembly
22	WCI 316567600
29	807047102 Frigidaire Oven Front Drawer Glide
37	316490000 Frigidaire Oven Range Temperature Sensor
42	316400701 Frigidaire Oven Shield
44	316517600 Frigidaire Oven Spacer
45	316234100 Frigidaire Oven Shield
57	316457801 Frigidaire Oven Cover
58B	316406500 Frigidaire Insulation
58	316403803 Frigidaire Insulation
58A	316406602 Frigidaire Insulation
59	316208401 Frigidaire Oven Vent Tube
59A	316208304 Frigidaire Oven Tube
62	5303935271 Frigidaire Oven Terminal Block
63	5304536404 Frigidaire Strap
66	316203200 Frigidaire Oven Broil Element 2400W
67	316075103 Frigidaire Oven Bake Element
68	316404002 Frigidaire Support Assembly
71	WCI 316422304
86	316441300 Frigidaire Receptacle
87	316081200 Frigidaire Oven Bracket
88	316203500 Frigidaire Oven Rod
89	MOTOR
151	WCI 316404600
170	316112005 Frigidaire Oven Anti-Tip Range Bracket Kit
170	316116000 Frigidaire Screw
