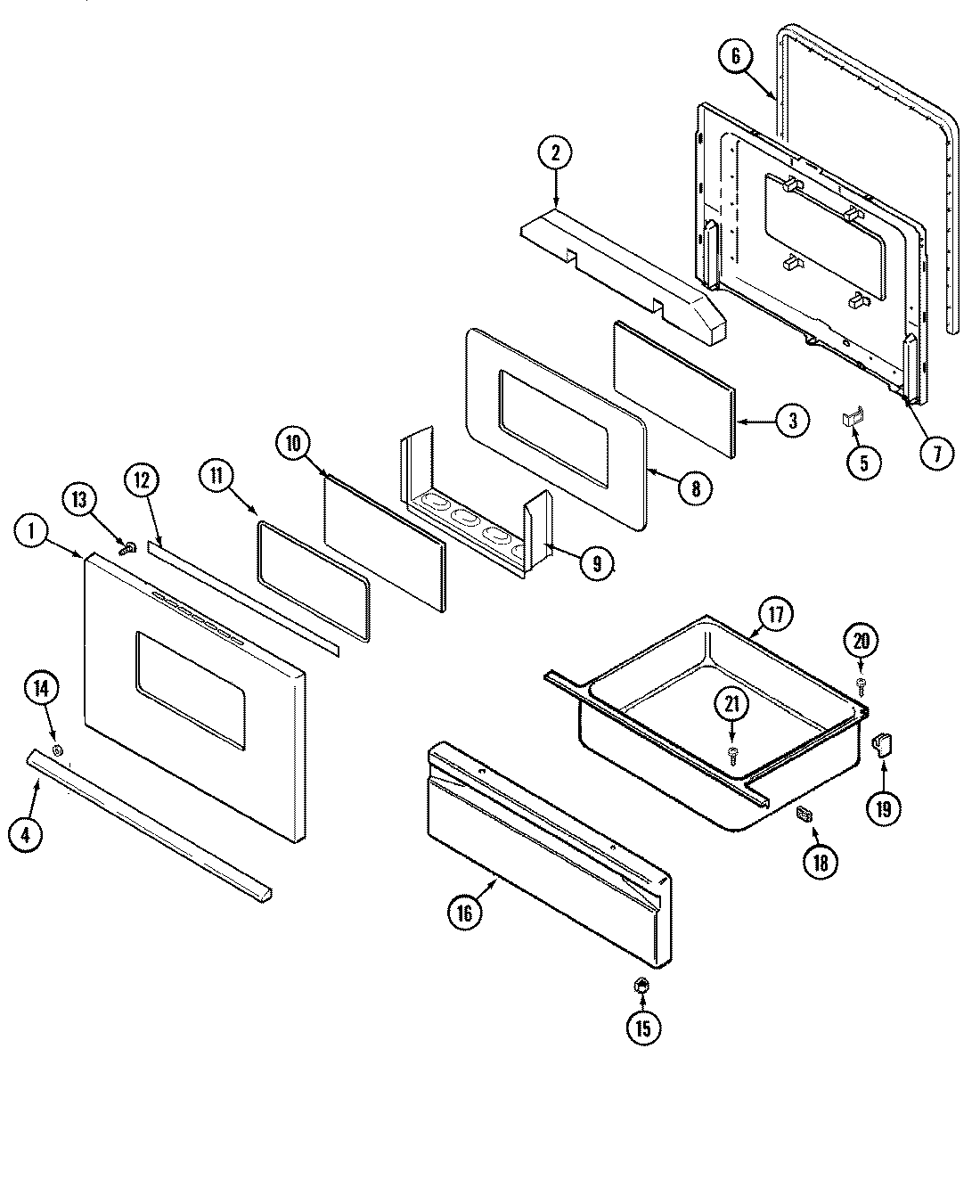

CRE7500BDW 03 – DOOR/DRAWER (CRE7500BDx)

CRE7500BDW 03 – DOOR/DRAWER (CRE7500BDx)

Written by

in

CRE7500BDW 03 – DOOR/DRAWER (CRE7500BDx)

Products

PositionProduct
1MAY 2401F121-71
2MAY 74002458
3MAY 74002459
4MAY 7701P119-60
5CLIP, DOOR
6WP7212P043-60 Whirlpool Oven Door Seal Gasket
7MAY 74003248
7MAY 74002460
8MAY 74002461
9MAY 74002462
10MAY 74002463
11MAY 7201P017-60
12MAY 8270P078-60
13WP3387230 Whirlpool Screw
14MAY 8010P084-60
15WPW10131078 Whirlpool Nut Assembly
16MAY 2416F039-62
17MAY 74003618
17MAY 3405F019-80
18WP854334 Whirlpool Air Conditioner Sealing Strip
19WP488130 Whirlpool Air Conditioner Nut
19WP8004P026-60 Whirlpool Support
19MAY 74003566
20MAY 7101P329-60
