CRE7500BDW 05 – TOP ASSEMBLY
Written by
in

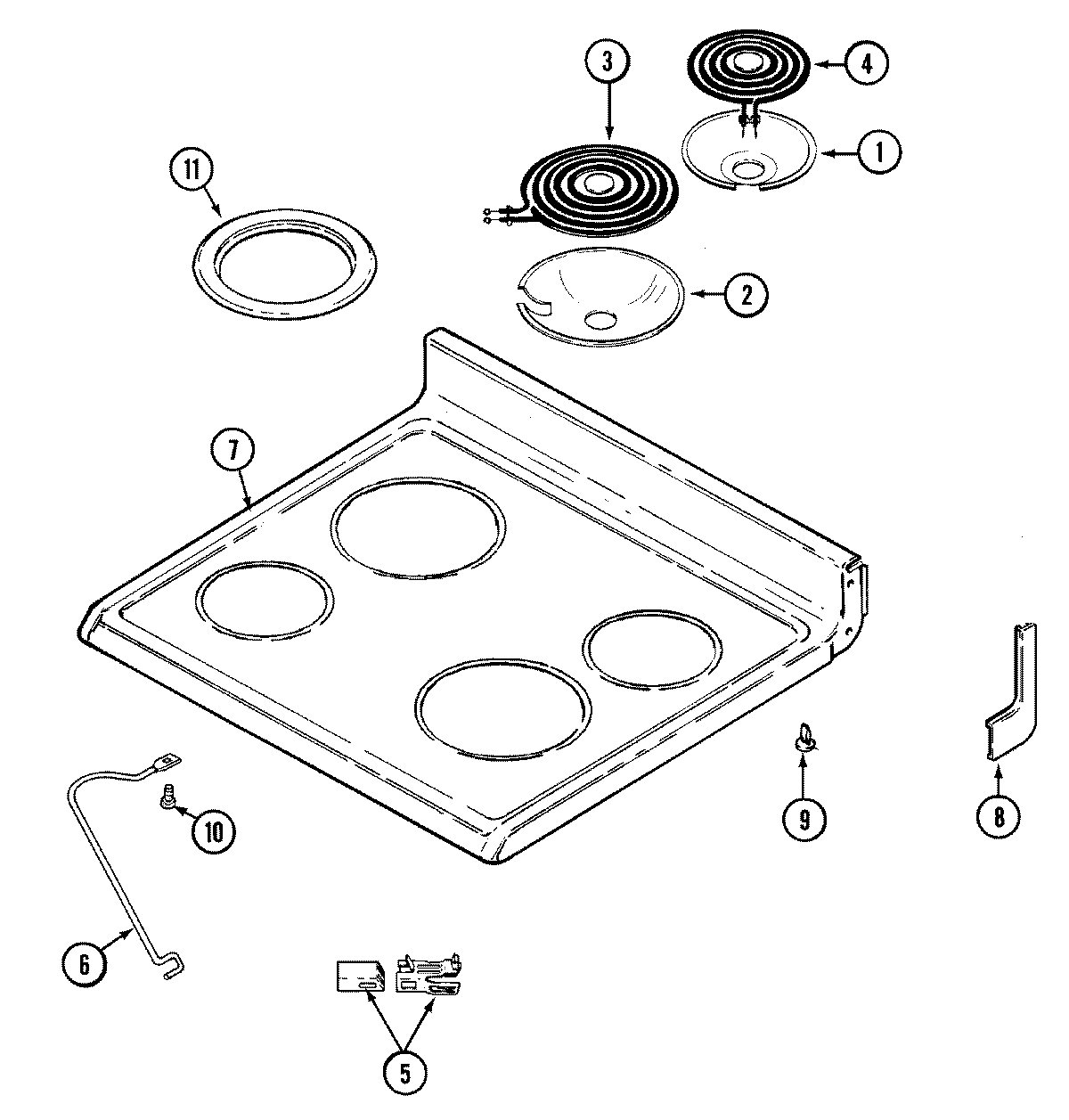

CRE7500BDW 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 7725P036-60
1
MAY 7725P038-60
1
MAY 7725P013-60
1
MAY 74001519
1
W10291024 Whirlpool Range Cooktop Gray Porcelain Drip Bowl Set
2
MAY 74001518
2
WP74001479 Whirlpool Oven Drip Bowl
2
MAY 7725P039-60
2
MAY 7725P037-60
3
MAY 12001230
3
MP26MA Chromalox Electric Stove Range 8" Top Burner Unit 2600W 240V
3
MAY Y04000055
4
WPW10259868 Whirlpool Surface Heating Element
4
MAY 74001780
4
MAY Y04000056
5
MAY 1430306K
6
MAY 7809P014-60
7
MAY 2002W103-81
8
MAY 8270P095-60
8
WP3195558 Whirlpool Nut
8
MAY 7746P031-60
8
MAY 7746P030-60
9
MAY 8016P013-60
10
MAY 7101P280-60
11
MAY 7744P131-60
11
MAY 7744P130-60
11
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
