CRE7600BDL 01 – BODY – Aparts

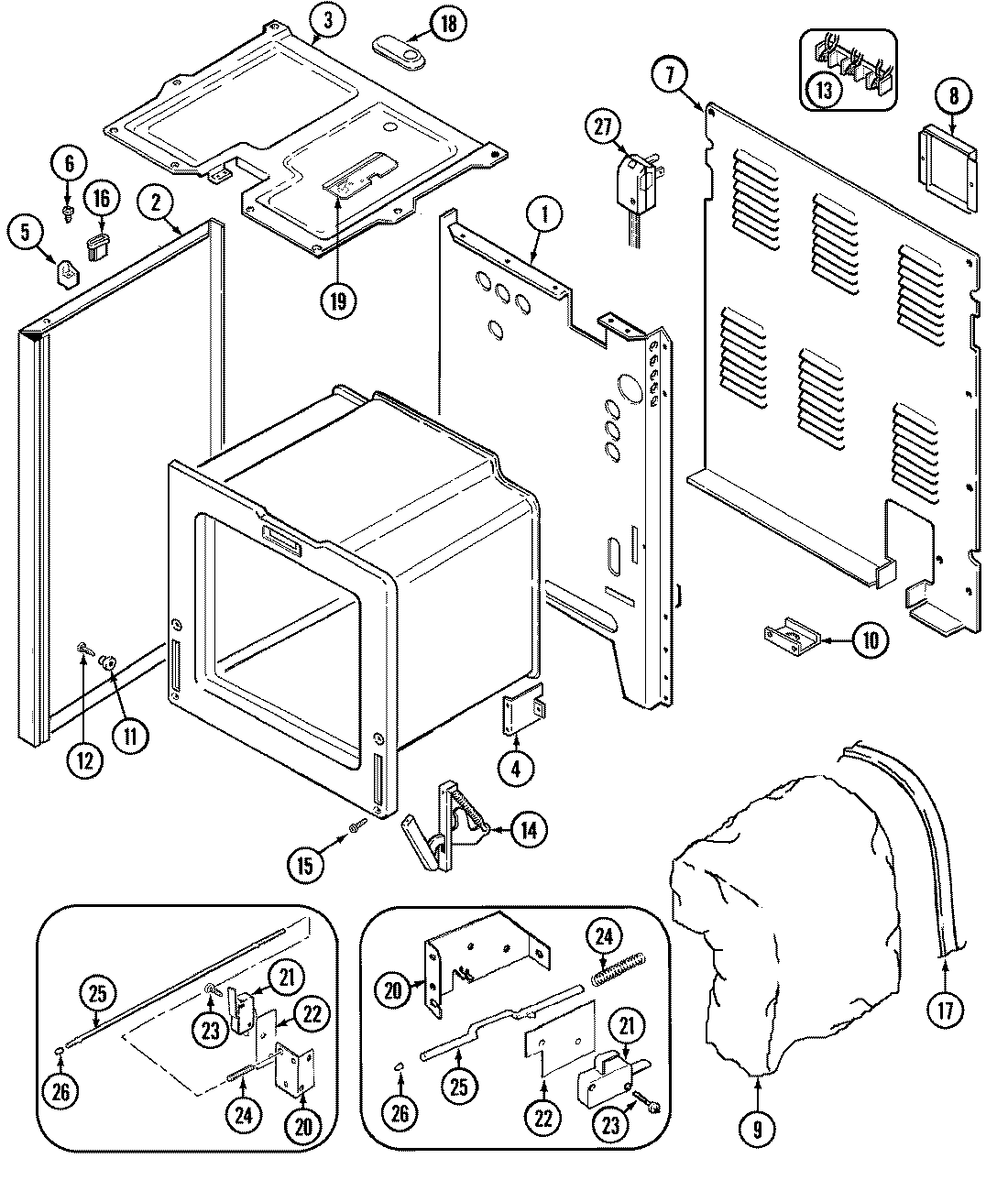

CRE7600BDL 01 – BODY

Products

Position	Product
1	MAY 4002F189-80
1	MAY 74001341
2	MAY 7003P067-60
2	MAY 2618F110-74
2	MAY 8270P078-60
3	MAY 4011F239-19
4	SUPPORT,OVEN REAR
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	MAY 4005F455-51
8	MAY 4005F427-51
9	MAY 4804F044-60
9	MAY 4804F039-60
10	MAY 3605F174-51
11	MAY 8004P024-60
13	MAY 7401P038-60
14	MAY 7106P055-60
15	SCREW (10-24X5/16-NI)
16	MAY 74001256
17	MAY 4820F001-59
18	MAY 74001449
18	COVER, VENT
19	MAY 74001598
20	WPY706189 Whirlpool Stove Screw
20	MAY 3801F316-51
20	BRACKET, SWITCH ACTUATOR
20	MAY 3801F354-51
21	MAY 12001053
21	MAY 74001628
22	MAY 74001626
22	MAY 7003P047-60
22	MAY 7003P062-60
23	MAY 7101P330-60
24	MAY 7803P067-60
25	MAY 74001630
25	MAY 7809P022-60
26	MAY 8003P012-60
26	MAY 74001631
27	MAY 7402P050-60
