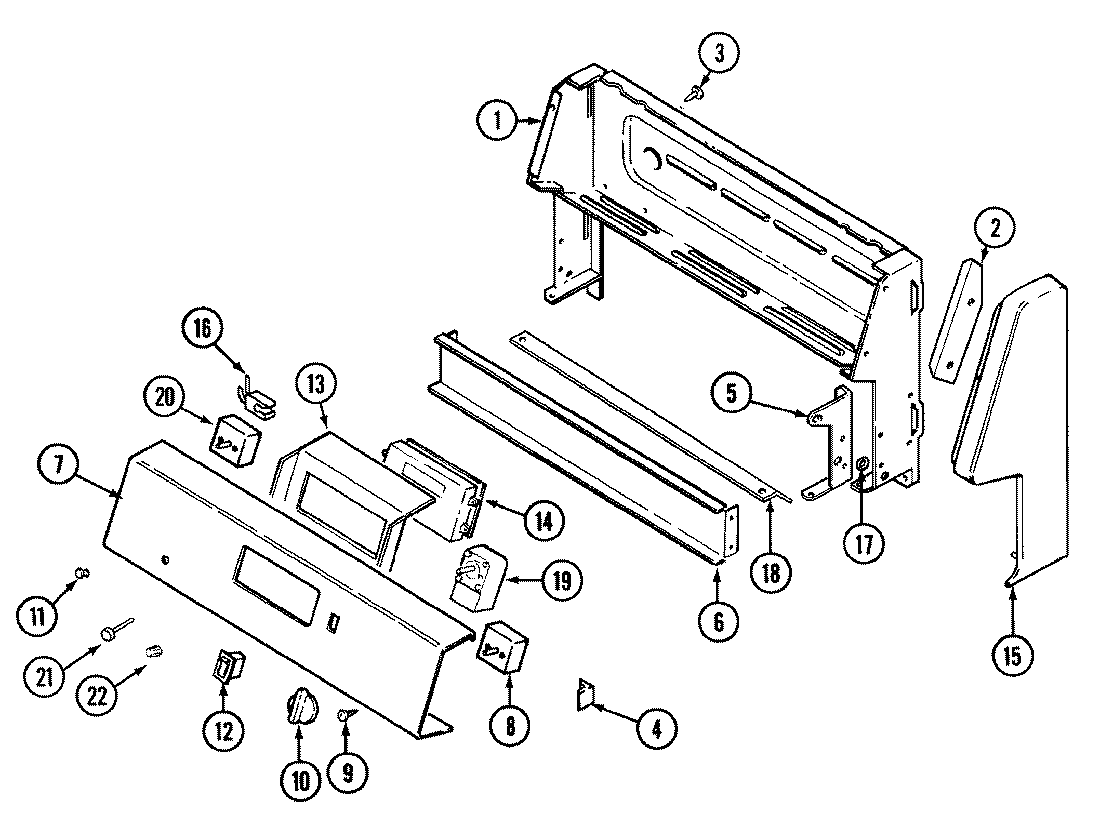

CRE7600BDL 02 – CONTROL PANEL

Products

Position	Product
NI	MAY 16000327
NI	MAY 8111P018-60
NI	MAY 5170D169-60
NI	MAY 74001610
1	MAY 4001F091-51
2	MAY 3807F450-45
2	MAY 3807F449-45
4	MAY 7101P148-60
4	MAY 8010P083-60
5	MAY 3418D098-60
5	MAY 3418D097-60
6	MAY 3802F088-51
7	WPY706189 Whirlpool Stove Screw
7	MAY 7703P367-60
8	WP7403P239-60 Whirlpool Oven Switch
8	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
9	SCREW
10	MAY 7737P036-60
11	WP7730P011-60 Whirlpool Indicator Lens
12	MAY 7403P309-60
13	MAY 3801F273-45
14	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
14	MAY 7601P190-60
14	MAY 8312P019-60
15	MAY 7726P061-60
15	MAY 7726P062-60
16	MAY 7407P101-60
17	WP3195558 Whirlpool Nut
18	MAY 3604F201-80
18	MAY 7118P015-60
19	WP7404P105-60 Whirlpool Thermostat
20	MAY 7403P254-60
21	MAY 7711P171-60
22	MAY 7711P478-60
