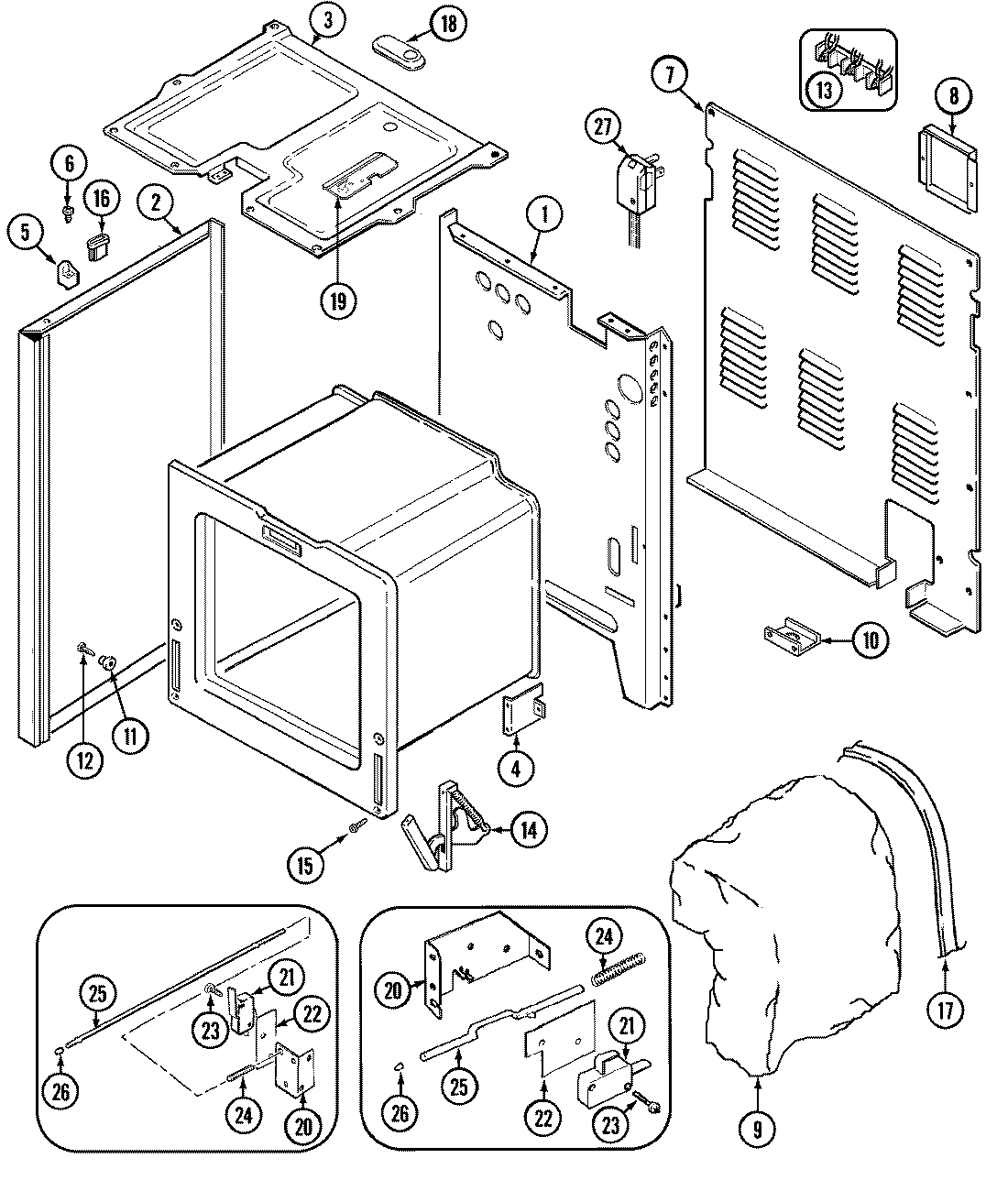

CRE7600BDW 01 – BODY

CRE7600BDW 01 – BODY

Products

PositionProduct
1MAY 4002F189-80
1MAY 74001341
2MAY 7003P067-60
2MAY 2618F110-71
2MAY 8270P078-60
3MAY 4011F239-19
4SUPPORT,OVEN REAR
5SPACER, MAIN TOP (RT)
5SPACER, MAIN TOP (LT)
6MAY 7101P313-60
7MAY 4005F455-51
8MAY 4005F427-51
9MAY 4804F039-60
9MAY 4804F044-60
10MAY 3605F174-51
11MAY 8004P024-60
13MAY 7401P038-60
14MAY 7106P055-60
15SCREW (10-24X5/16-NI)
16MAY 74001256
17MAY 4820F001-59
18MAY 74001449
18COVER, VENT
19MAY 74001598
20WPY706189 Whirlpool Stove Screw
20MAY 3801F316-51
20BRACKET, SWITCH ACTUATOR
20MAY 3801F354-51
21MAY 12001053
21MAY 74001628
22MAY 74001626
22MAY 7003P047-60
22MAY 7003P062-60
23MAY 7101P330-60
24MAY 7803P067-60
25MAY 74001630
25MAY 7809P022-60
26MAY 8003P012-60
26MAY 74001631
27MAY 7402P050-60
