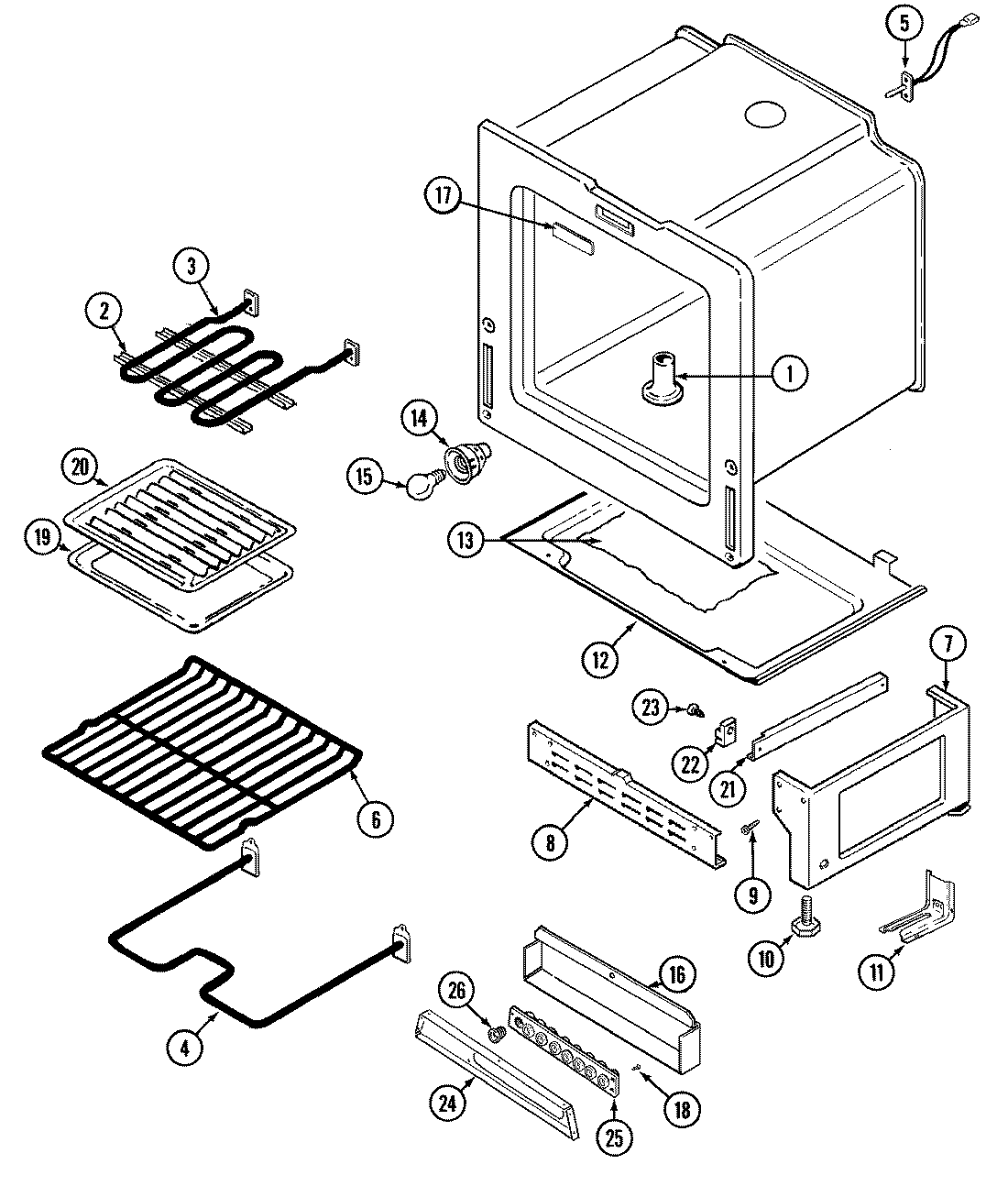

CRE7600CDE 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	MAY 3807F389-45
3	WPY04000059 Whirlpool Bake Element
4	MAY Y04000058
5	MAY 7430P010-60
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003016
7	MAY 4020W017-80
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
10	MAY 74001311
11	MAY 7101P344-60
11	MAY 74002311
12	SCREW
12	MAY 3804F112-51
13	MAY 8312P058-60
14	WP7407P182-60 Whirlpool Lamp
15	RANGE ONLY 40W 120V APPL BULB
16	MAY 4005F445-51
17	MAY 7718P013-60
18	MAY 7101P068-60
18	MAY 7103P064-60
19	MAY Y3401F02019
20	MAY Y3413F01619
21	MAY 3406F028-51
21	RUNNER, DRAWER
22	MAY 74002312
22	WP488130 Whirlpool Air Conditioner Nut
22	MAY 74003566
23	MAY 74001449
23	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
24	MAY 74001339
25	MAY 7401A032-60
26	MAY 7416P006-60
26	MAY 7416P005-60
