CRE7700ADL 01 – BODY
Written by
in

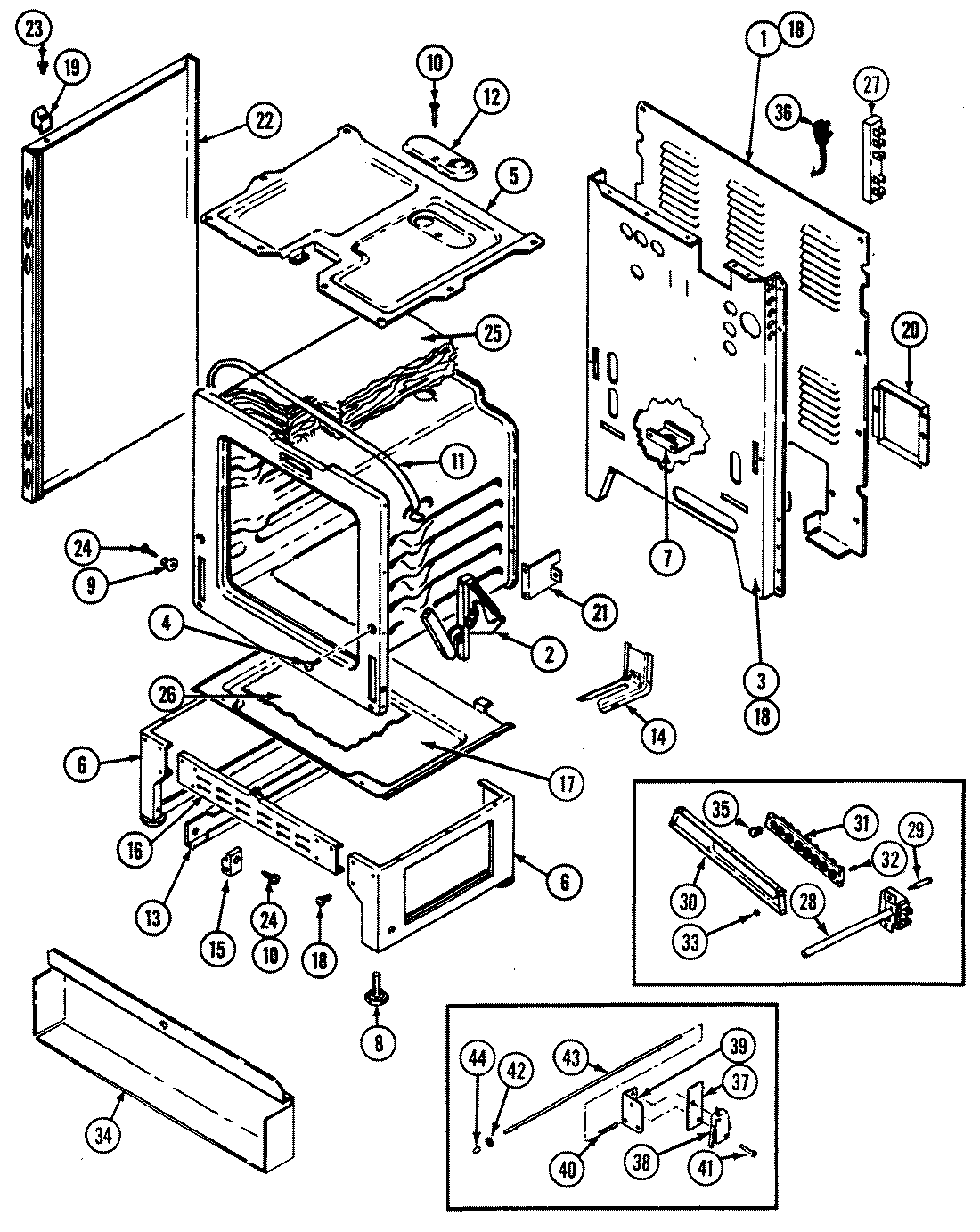

CRE7700ADL 01 – BODY
Products
Position
Product
1
MAY 4005F381-51
2
MAY 7106P048-60
3
MAY 4002F189-80
4
WP4159193 Whirlpool Screw
5
MAY 4011F208-19
6
MAY 4020W007-80
7
MAY 3605F174-51
8
MAY 7101P306-60
9
MAY 8004P024-60
10
SCREW
11
MAY 4820F001-59
12
COVER, VENT
13
MAY 3406F028-51
14
MAY 3801F218-51
14
MAY 7101P289-60
15
MAY 8004P025-60
16
MAY 4020F001-80
17
MAY 3804F109-51
18
MAY 7101P290-60
19
SPACER, MAIN TOP (LT)
19
SPACER, MAIN TOP (RT)
20
MAY 4005F427-51
21
SUPPORT,OVEN REAR
22
MAY 2618F099-71
22
MAY 2618F085-74
22
MAY 2618F099-74
22
MAY 2618F085-71
23
MAY 7118P013-60
24
MAY 7101P334-60
25
MAY 4804F032-60
25
MAY 4804F031-60
26
MAY 8312P058-60
27
MAY 7401P038-60
28
MAY 7404P057-60
29
MAY 7118P020-60
30
MAY 3801F309-80
31
MAY 7401P031-60
32
MAY 7101P068-60
33
MAY 7103P064-60
33
MAY 7101P263-60
34
MAY 4005F417-51
35
MAY 7416P006-60
35
MAY 7416P005-60
36
MAY 7402P036-60
37
MAY 7003P047-60
38
MAY 7403P281-60
39
MAY 3801F316-51
40
MAY 7803P067-60
41
MAY 7101P330-60
42
MAY 7109P020-60
43
MAY 7809P017-60
44
MAY 8003P012-60
44
MAY 5175D080-60
←
