CRE7700ADL 03 – DOOR/DRAWER – Aparts

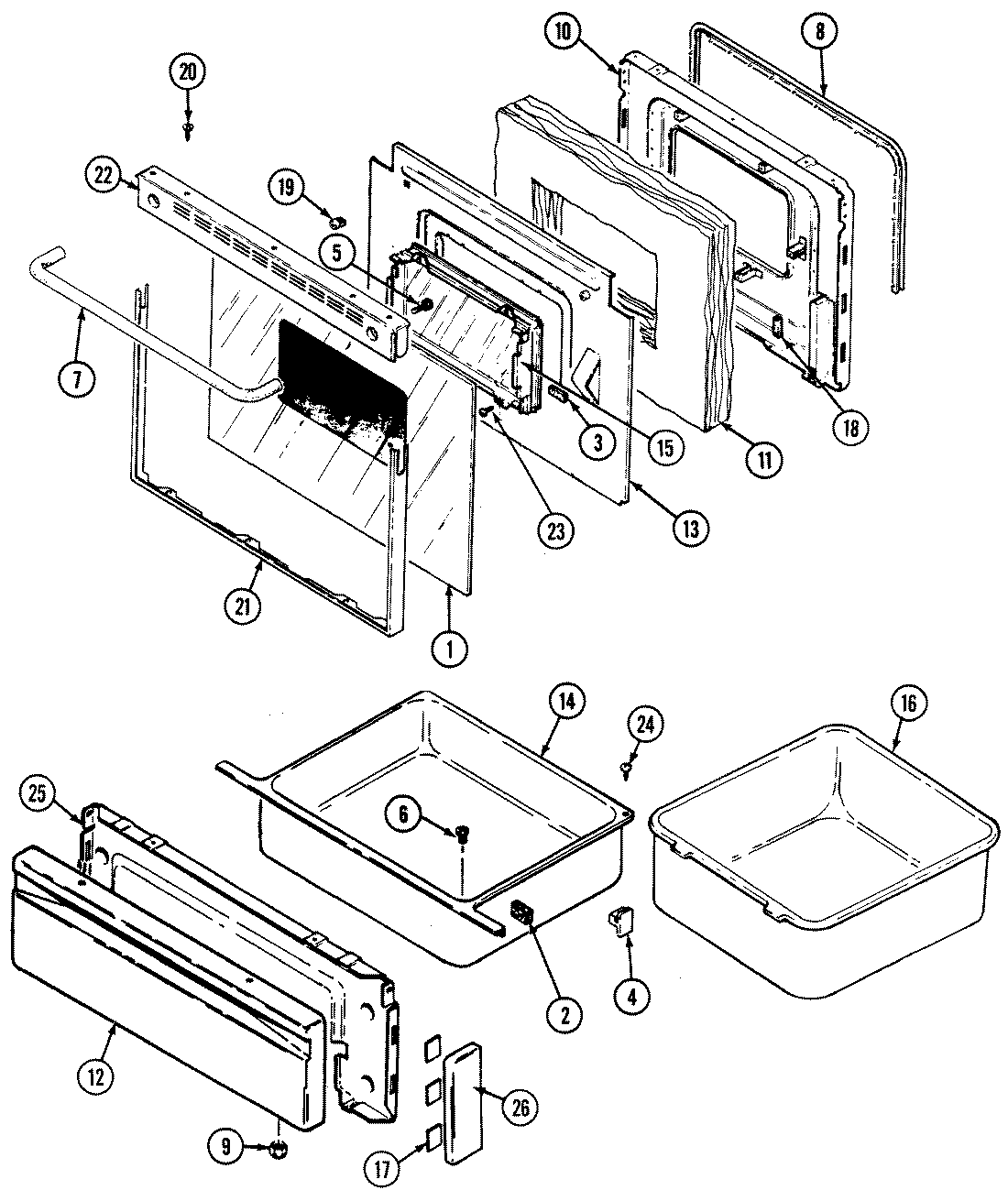

CRE7700ADL 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7103P136-60
1	MAY 7902P361-60
2	MAY 8010P086-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	WP4159193 Whirlpool Screw
7	MAY 7701P127-60
8	MAY 7212P034-60
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W203-19
11	MAY 4804F033-60
12	MAY 2416F043-74
13	MAY 3601F232-45
14	MAY 3405F015-80
16	MAY 8312P073-60
17	MAY 8270P095-60
18	MAY 7208P011-60
19	MAY 7103P045-60
20	WP98008545 Whirlpool Screw
21	MAY 7101P321-60
21	MAY 7706P294-60
22	MAY 7744P088-60
23	MAY 7101P290-60
24	MAY 7101P329-60
25	MAY 2404F033-80
26	MAY 7744P094-60
