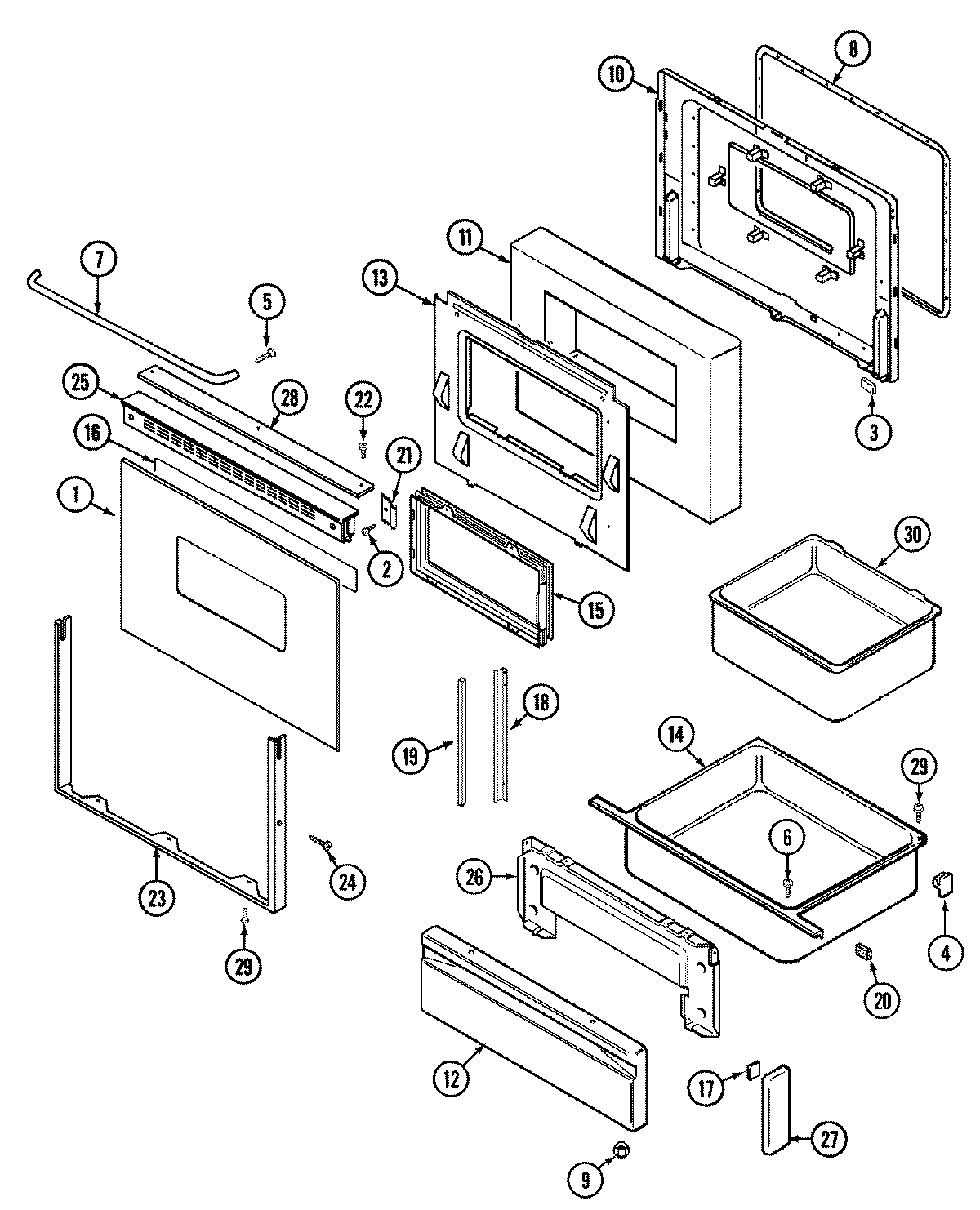

CRE7700BDE 03 – DOOR/DRAWER (SERIAL PREFIX 10)

CRE7700BDE 03 – DOOR/DRAWER (SERIAL PREFIX 10)

Written by

in

CRE7700BDE 03 – DOOR/DRAWER (SERIAL PREFIX 10)

Products

PositionProduct
1MAY 7902P360-60
2MAY 74001449
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 7701P150-60
7MAY 7103P045-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W203-19
10MAY 7103P136-60
11MAY 4804F051-60
12MAY 2416F050-71
13MAY 3601F236-51
14MAY 3405F019-80
15MAY 7907P021-60
16MAY 8270P078-60
17TAPE
18MAY 3818F052-80
19MAY 7208P002-60
20MAY 7208P011-60
21MAY 3805F002-34
22MAY 74001278
23MAY 7706P298-60
24WP98008544 Whirlpool Screw Assembly
25MAY 7744P129-60
26MAY 2404F043-80
27MAY 7744P093-60
28MAY 7728P094-60
29MAY 7101P290-60
30MAY 8312P079-60
