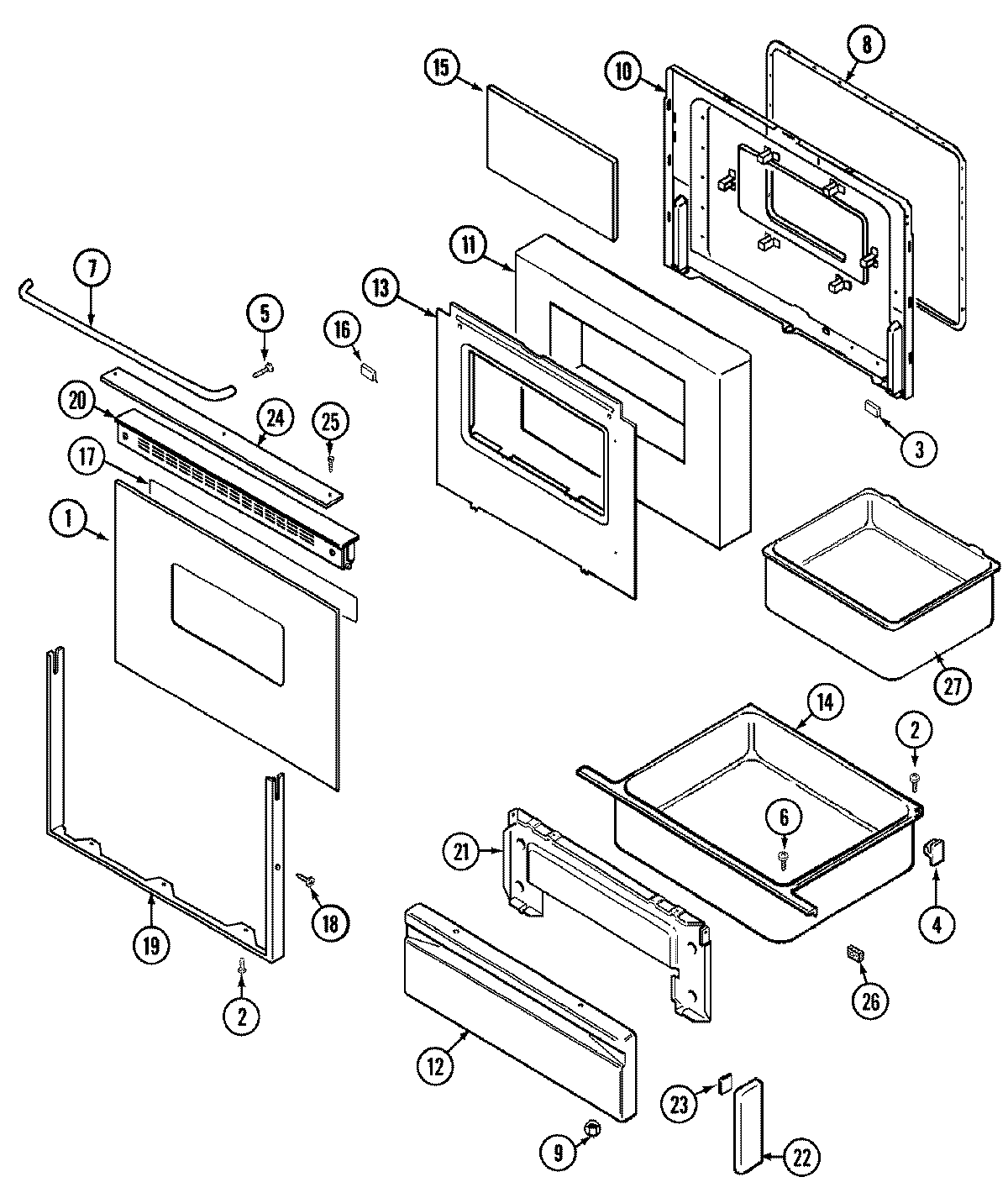

CRE7700BDE 04 – DOOR/DRAWER (SERIAL PREFIX 13)

Products

Position	Product
1	MAY 7902P360-60
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	SCREW
7	MAY 7701P150-60
8	WP7212P043-60 Whirlpool Oven Door Seal Gasket
9	WPW10131078 Whirlpool Nut Assembly
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 2402W213-19
10	NUT, SNAP (ROUND-BLK)
11	MAY 7002P158-60
12	MAY 2416F050-71
13	MAY 7101P290-60
13	MAY 3601F240-80
14	MAY 3405F019-80
15	MAY 7902P319-60
16	MAY 8270P095-60
17	MAY 8270P078-60
19	MAY 7706P298-60
19	MAY 7706P310-60
20	MAY 7706P306-60
20	MAY 7744P129-60
21	MAY 2404F043-80
22	MAY 7744P093-60
23	TAPE
24	MAY 7728P094-60
25	WP98008544 Whirlpool Screw Assembly
25	MAY 74001278
26	MAY 7208P011-60
27	MAY 8312P079-60
