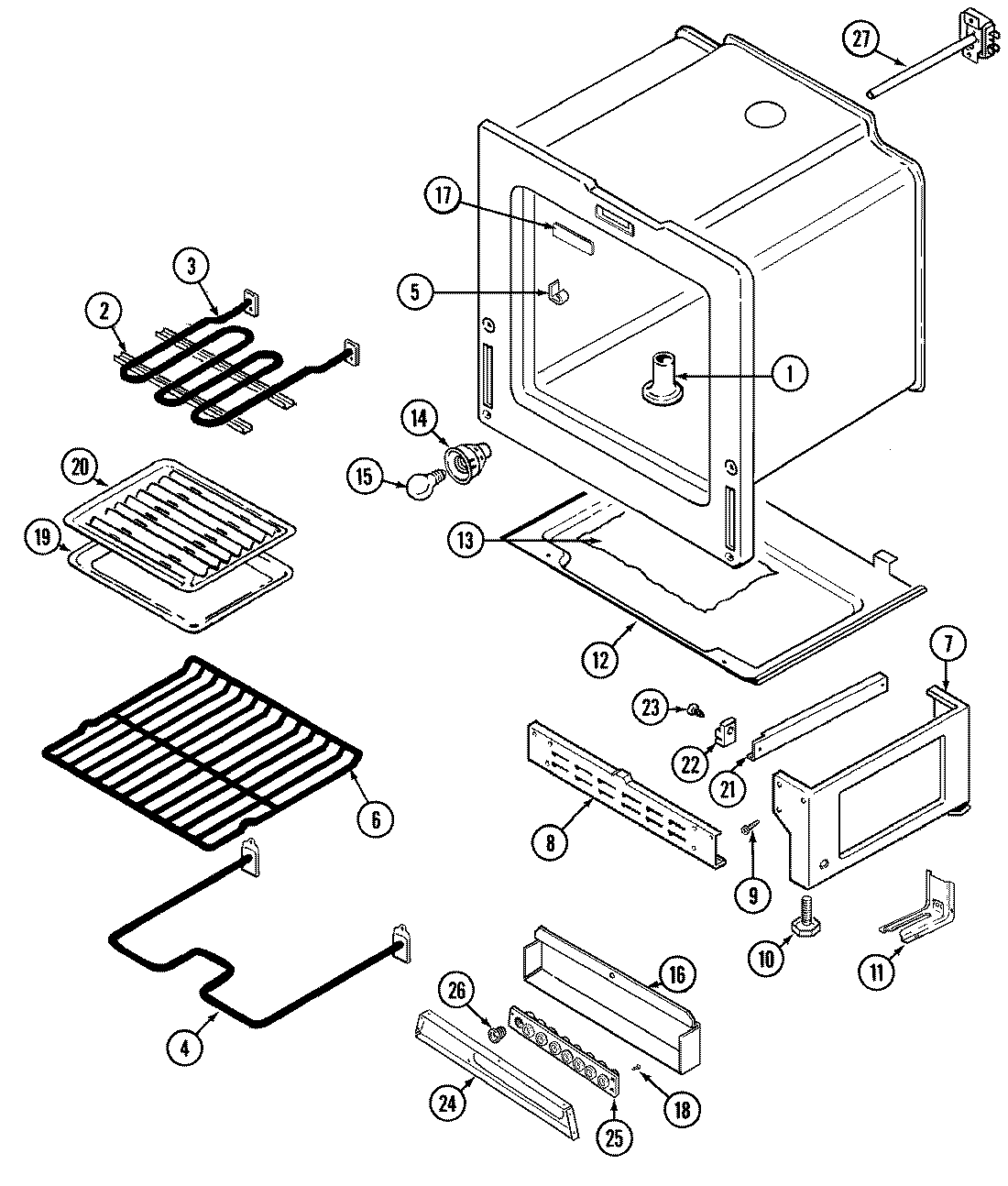

CRE7700BDE 05 – OVEN/BASE

CRE7700BDE 05 – OVEN/BASE

Products

PositionProduct
1MAY 8026P019-60
2MAY 3807F389-45
3WPY04000059 Whirlpool Bake Element
4MAY Y04000058
5WP7112P004-60 Whirlpool Thermal Clip
6WPW10282492 Whirlpool Oven Rack
7MAY 4020W017-80
8MAY 4020F001-80
10MAY 74001311
11MAY 74002311
11MAY 7101P344-60
12MAY 3804F112-51
13MAY 8312P058-60
14WP7407P182-60 Whirlpool Lamp
15RANGE ONLY 40W 120V APPL BULB
16MAY 4005F445-51
17MAY 7718P013-60
18MAY 7101P068-60
18MAY 7103P064-60
19MAY Y3401F02019
20MAY Y3413F01619
21MAY 3406F028-51
22MAY 74002312
23MAY 74001449
23SCREW
24MAY 3801F309-80
24MAY 74001339
25MAY 7401A032-60
26MAY 7416P006-60
26MAY 7416P005-60
27MAY 7404P057-60
