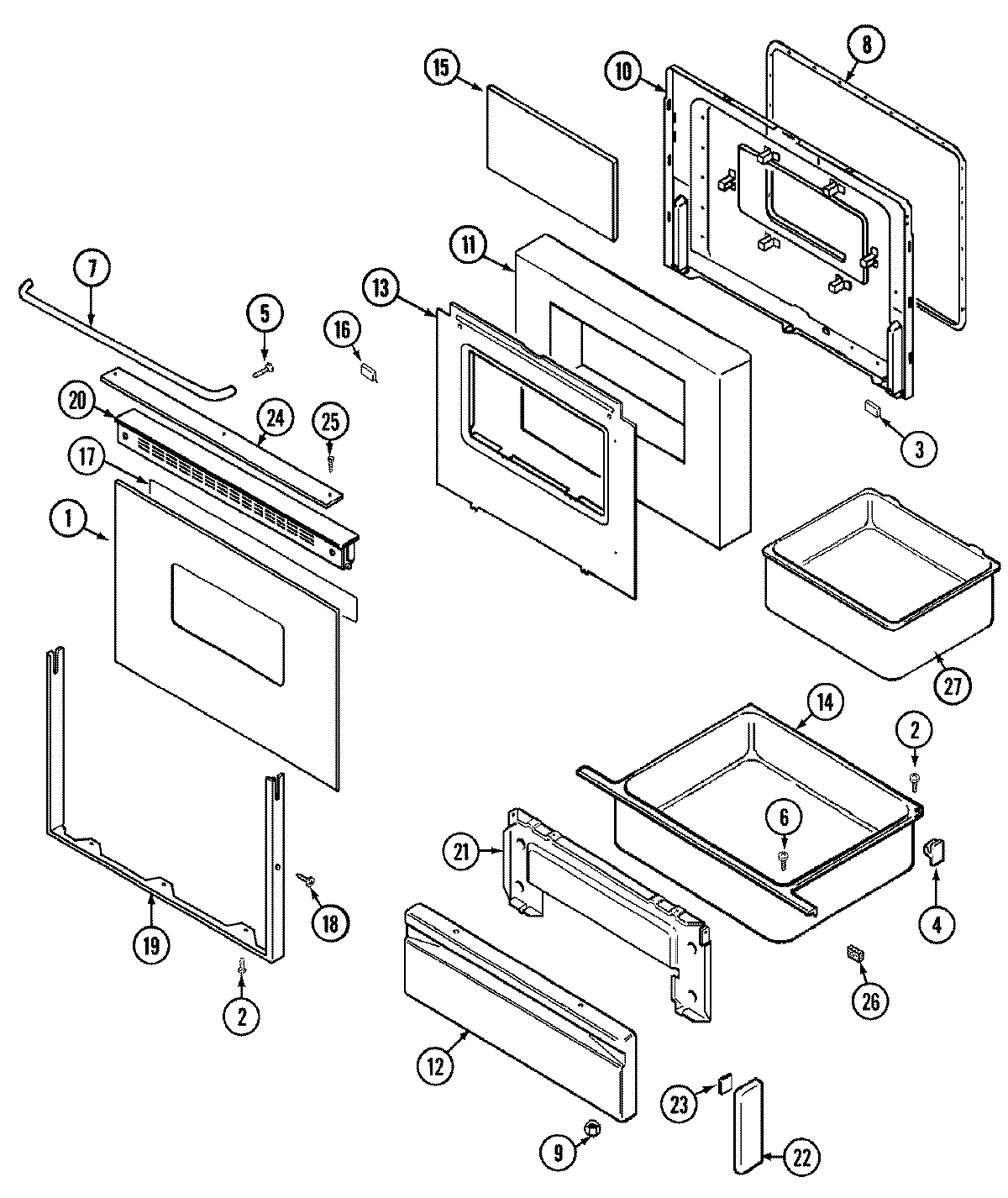

CRE7700CDM 03 – DOOR/DRAWER

CRE7700CDM 03 – DOOR/DRAWER

Written by

in

CRE7700CDM 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74001294
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5SCREW
6SCREW
7MAY 74001284
8WP7212P043-60 Whirlpool Oven Door Seal Gasket
9WPW10131078 Whirlpool Nut Assembly
10MAY 2402W213-19
10WP7103P114-60 Whirlpool Snap Nut
11MAY 7002P158-60
12MAY 2416F050-74
13MAY 3601F240-80
13MAY 7101P290-60
14MAY 3405F019-80
15MAY 7902P319-60
16MAY 8270P095-60
17MAY 8270P078-60
19MAY 7706P311-60
20MAY 74001279
21MAY 2404F043-80
22MAY 7744P094-60
23TAPE
24MAY 7728P095-60
25MAY 7101P370-60
25WP74009541 Whirlpool Screw Assembly
26MAY 7208P011-60
27MAY 8312P079-60
