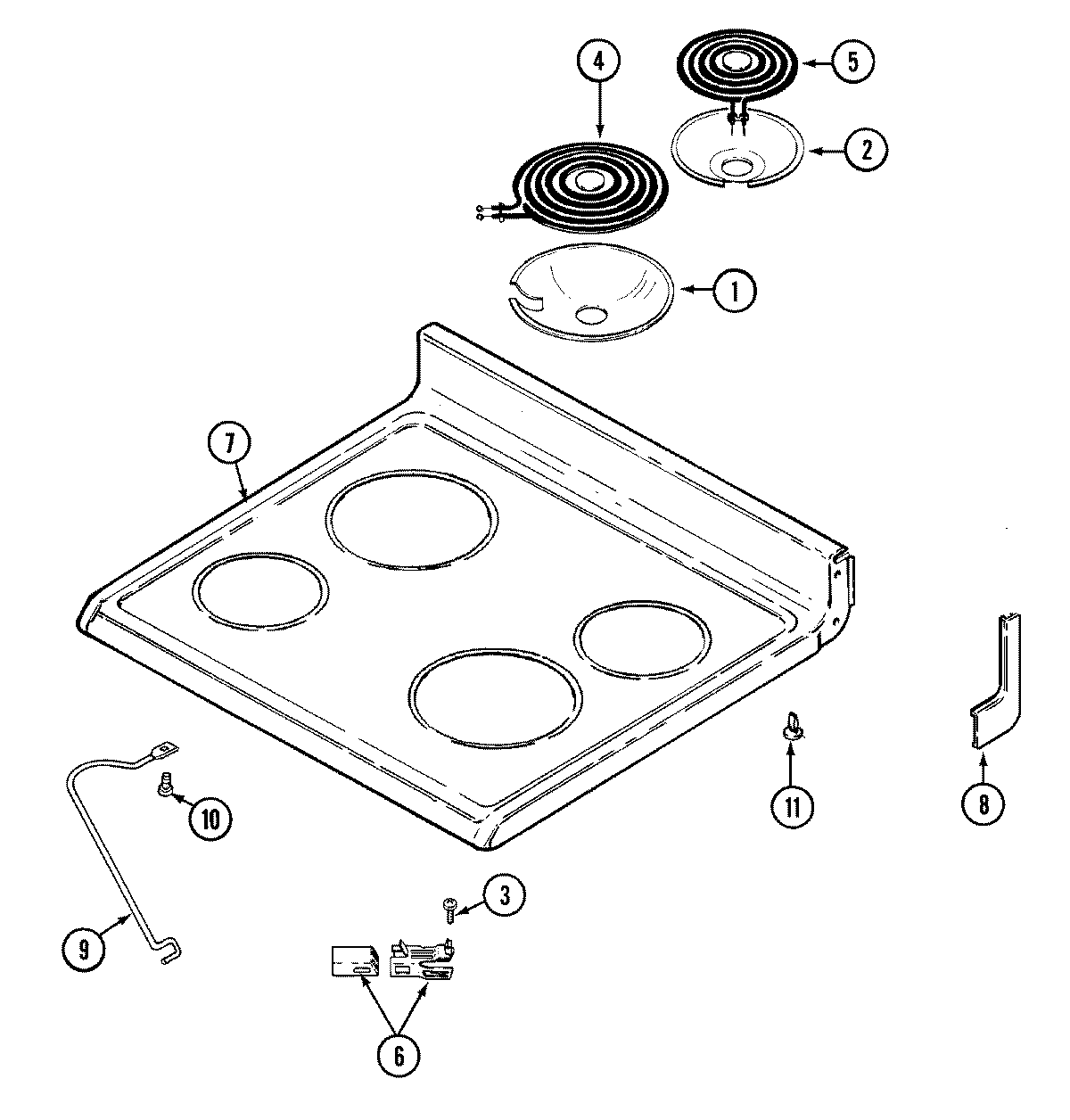

CRE7700CDM 05 – TOP ASSEMBLY
Written by
in
CRE7700CDM 05 – TOP ASSEMBLY
Products
Position
Product
NI
MAY 8270P095-60
NI
MAY 8114P348-60
1
MAY Y04100393
2
MAY 7725P040-60
2
W10288050 Whirlpool Range Bisque Cooktop Drip Pan Kit
2
WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
3
MAY 7118P013-60
4
MP26MA Chromalox Electric Stove Range 8" Top Burner Unit 2600W 240V
5
MAY 74001780
6
MAY 1430306K
7
MAY 2002W103-84
8
MAY 7746P036-60
8
MAY 7746P037-60
8
MAY 7103P129-60
9
MAY 74001170
10
MAY 7101P141-60
11
MAY 8016P015-60
←
