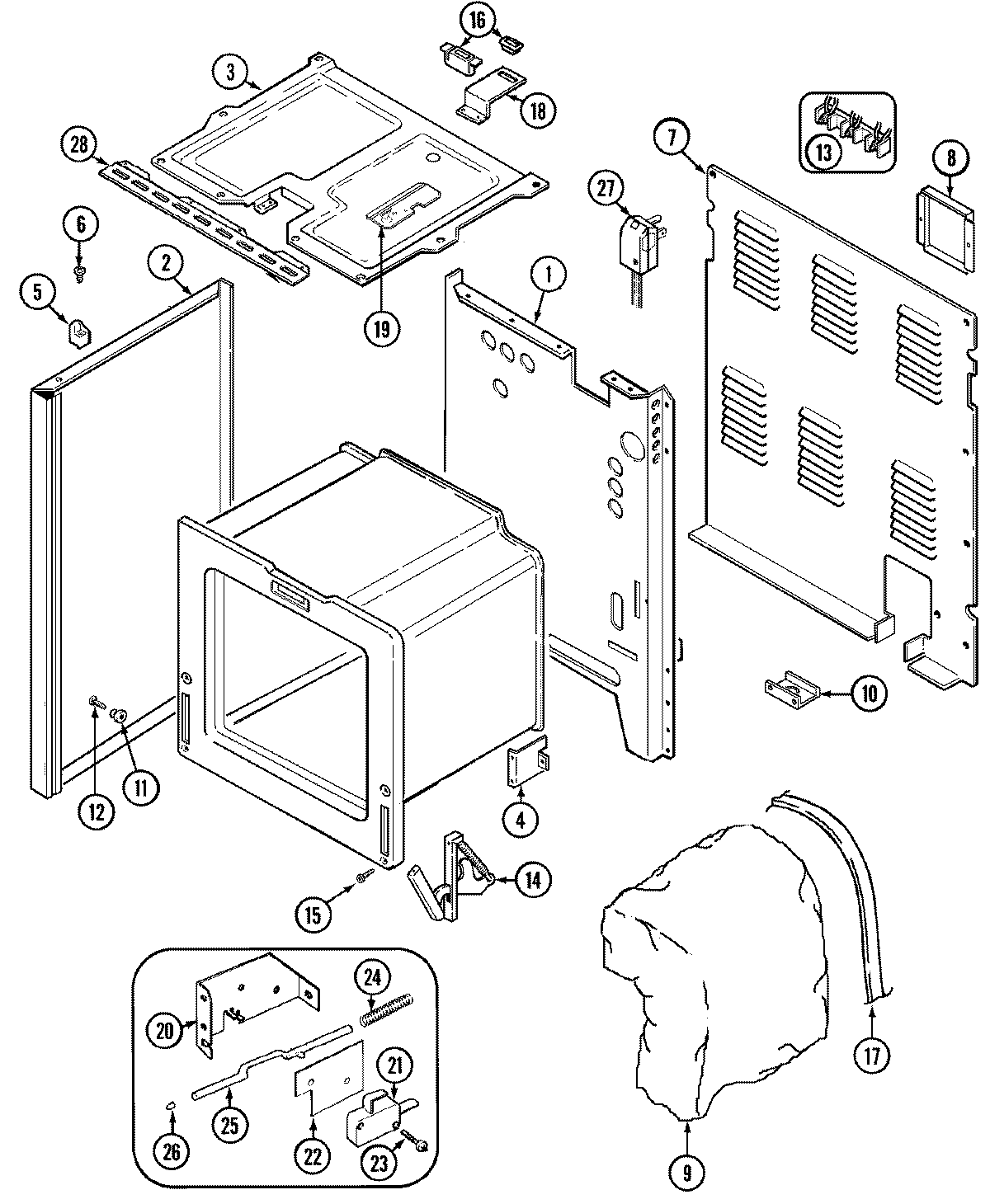

| NI | MAY 7111P020-60 |
| NI | SCREW |
| 1 | MAY 74001772 |
| 1 | MAY 3604F218-51 |
| 1 | MAY 7101P337-60 |
| 2 | MAY 7003P067-60 |
| 2 | MAY 8270P078-60 |
| 2 | MAY 74001885 |
| 3 | MAY 74001695 |
| 3 | MAY 74001707 |
| 4 | SUPPORT,OVEN REAR |
| 5 | SPACER, MAIN TOP (RT) |
| 5 | SPACER, MAIN TOP (LT) |
| 6 | MAY 7101P313-60 |
| 7 | MAY 4005F455-51 |
| 8 | MAY 4005F427-51 |
| 9 | MAY 4804F044-60 |
| 9 | MAY 4804F039-60 |
| 10 | MAY 3605F174-51 |
| 11 | MAY 8004P024-60 |
| 12 | MAY 74001449 |
| 13 | WPW10245259 Whirlpool Terminal Block |
| 14 | MAY 7106P055-60 |
| 15 | SCREW (10-24X5/16-NI) |
| 16 | MAY 7407P106-60 |
| 17 | MAY 4820F001-59 |
| 18 | MAY 3801F312-45 |
| 18 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 19 | MAY 74001598 |
| 20 | WPY706189 Whirlpool Stove Screw |
| 20 | BRACKET, SWITCH ACTUATOR |
| 21 | MAY 74001628 |
| 22 | MAY 74001872 |
| 23 | MAY 7101P330-60 |
| 25 | MAY 74001630 |
| 26 | MAY 74001631 |
| 27 | MAY 7402P050-60 |
| 28 | MAY 3801F305-80 |
