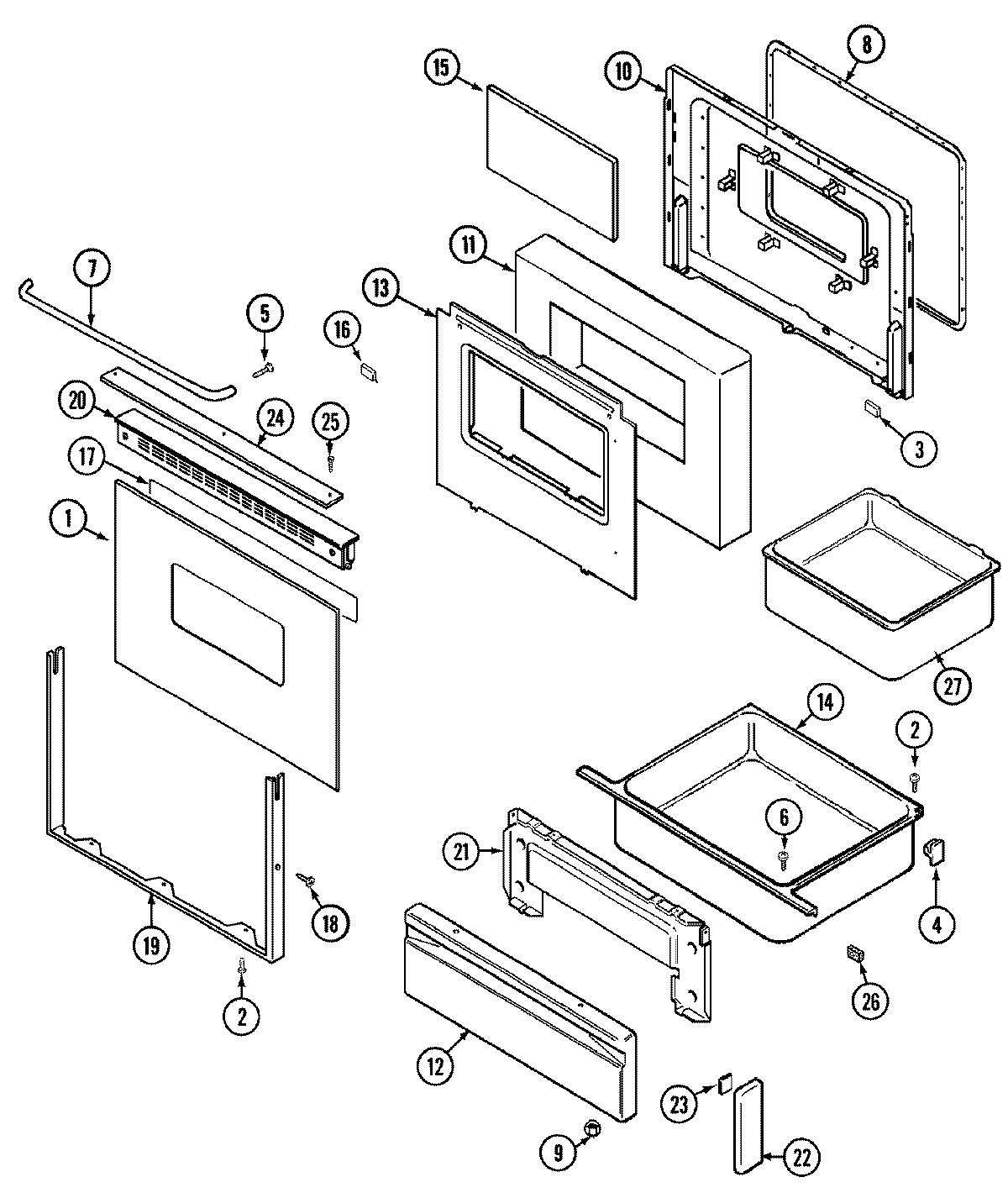

CRE7900ADM 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74001294
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	SCREW
7	MAY 74001284
8	WP7212P043-60 Whirlpool Oven Door Seal Gasket
9	WPW10131078 Whirlpool Nut Assembly
10	WP7103P114-60 Whirlpool Snap Nut
10	MAY 74002460
10	MAY 2402W213-19
10	NUT, SNAP (ROUND-BLK)
11	MAY 74002458
11	MAY 7002P158-60
12	MAY 2416F050-74
13	MAY 74002461
13	MAY 3601F240-80
13	MAY 7101P290-60
14	MAY 3405F019-80
15	MAY 7902P319-60
15	MAY 74002459
16	MAY 8270P095-60
17	MAY 8270P078-60
19	MAY 7706P311-60
20	MAY 74001279
21	MAY 2404F043-80
22	MAY 7744P094-60
23	TAPE
24	MAY 7728P095-60
25	WP74009541 Whirlpool Screw Assembly
25	MAY 7101P370-60
26	MAY 7208P011-60
27	MAY 8312P079-60
