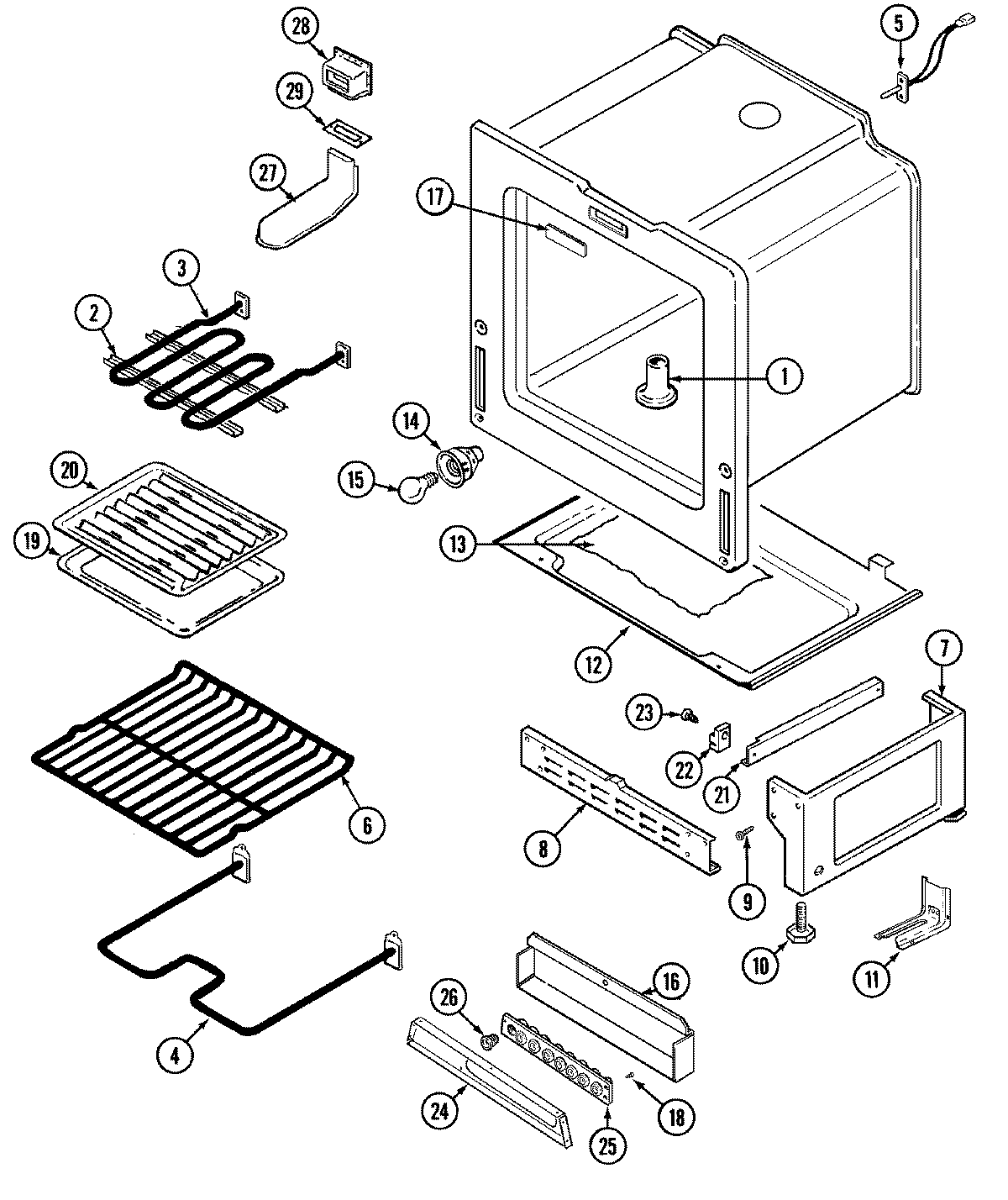

CRE7900ADM 04 – OVEN/BASE

Products

Position	Product
1	MAY 8026P019-60
2	MAY 3807F389-45
3	WPY04000059 Whirlpool Bake Element
4	MAY Y04000058
5	MAY 7430P010-60
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74003016
7	MAY 4020W017-80
8	MAY 4020F001-80
10	MAY 74001311
10	W11665456 Whirlpool Range Level Foot
11	MAY 7101P344-60
11	MAY 3801F218-51
12	MAY 3804F112-51
13	MAY 8312P058-60
14	WP7407P182-60 Whirlpool Lamp
15	RANGE ONLY 40W 120V APPL BULB
16	MAY 4005F445-51
17	MAY 7718P013-60
18	MAY 7103P064-60
18	MAY 7101P068-60
19	MAY Y3401F02019
20	MAY Y3413F01619
21	MAY 3406F028-51
22	MAY 8004P033-60
23	MAY 74001449
24	MAY 74001339
25	MAY 7401A032-60
26	MAY 7416P006-60
26	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
26	MAY 7416P005-60
27	MAY 4006W107-45
28	SCREW
28	MAY 3826W014-45
29	MAY 7201P054-60
