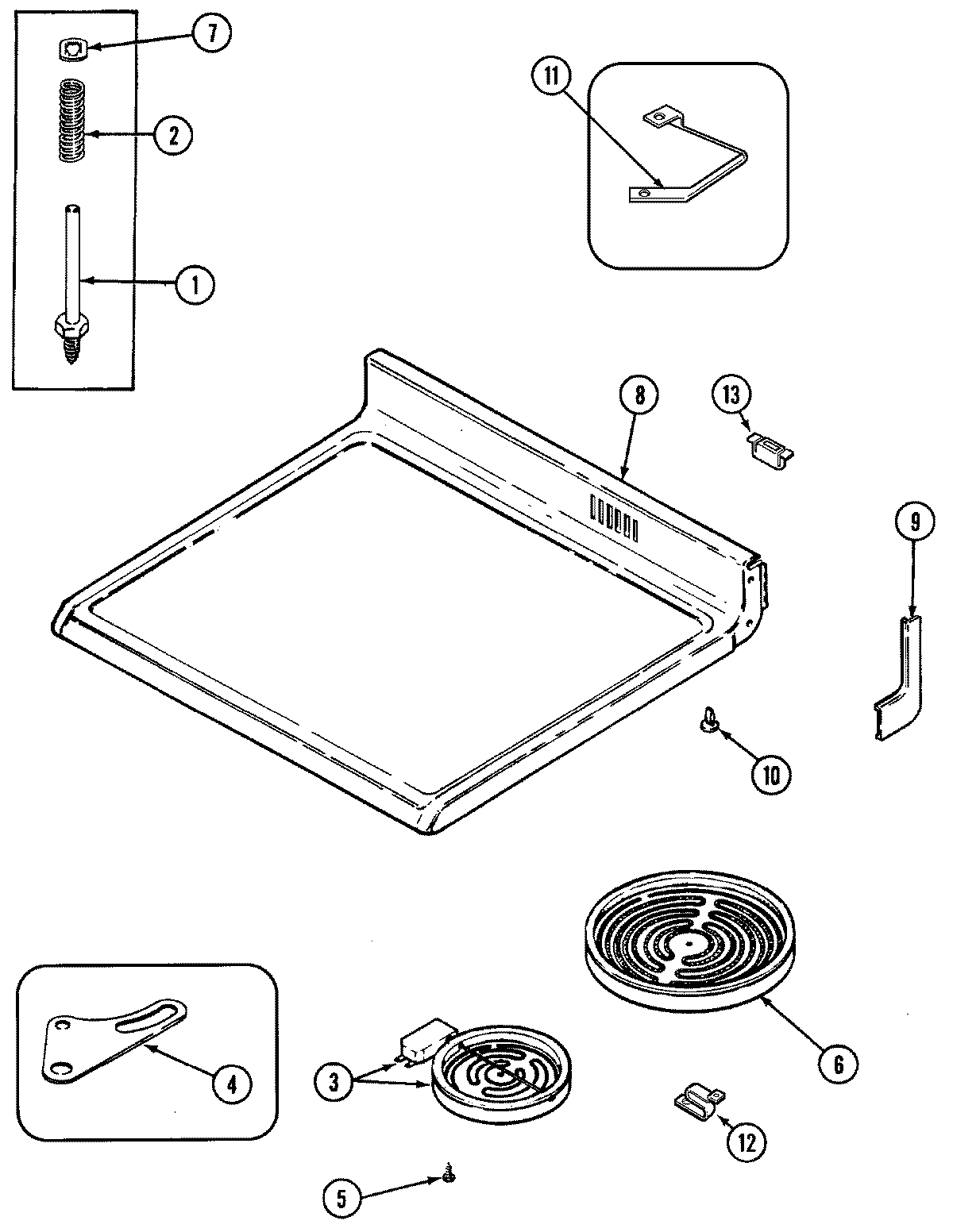

CRE7900ADM 05 – TOP ASSEMBLY
Written by
in
CRE7900ADM 05 – TOP ASSEMBLY
Products
Position
Product
1
MAY 7113P013-60
2
MAY 7803P066-60
3
MAY Y04000064
3
W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
4
MAY 3819F013-45
5
SCREW
6
MAY Y04000063
6
MAY 74002652
6
W10823707 Whirlpool Range Radiant Surface Element 8"
7
MAY 7112P091-60
8
MAY 74001991
8
MAY 8308P002-60
8
WA906B Whirlpool Cooktop Glass Scraper
9
MAY 7746P036-60
9
MAY 7746P037-60
10
MAY 74001428
11
MAY 74001437
11
NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
←
