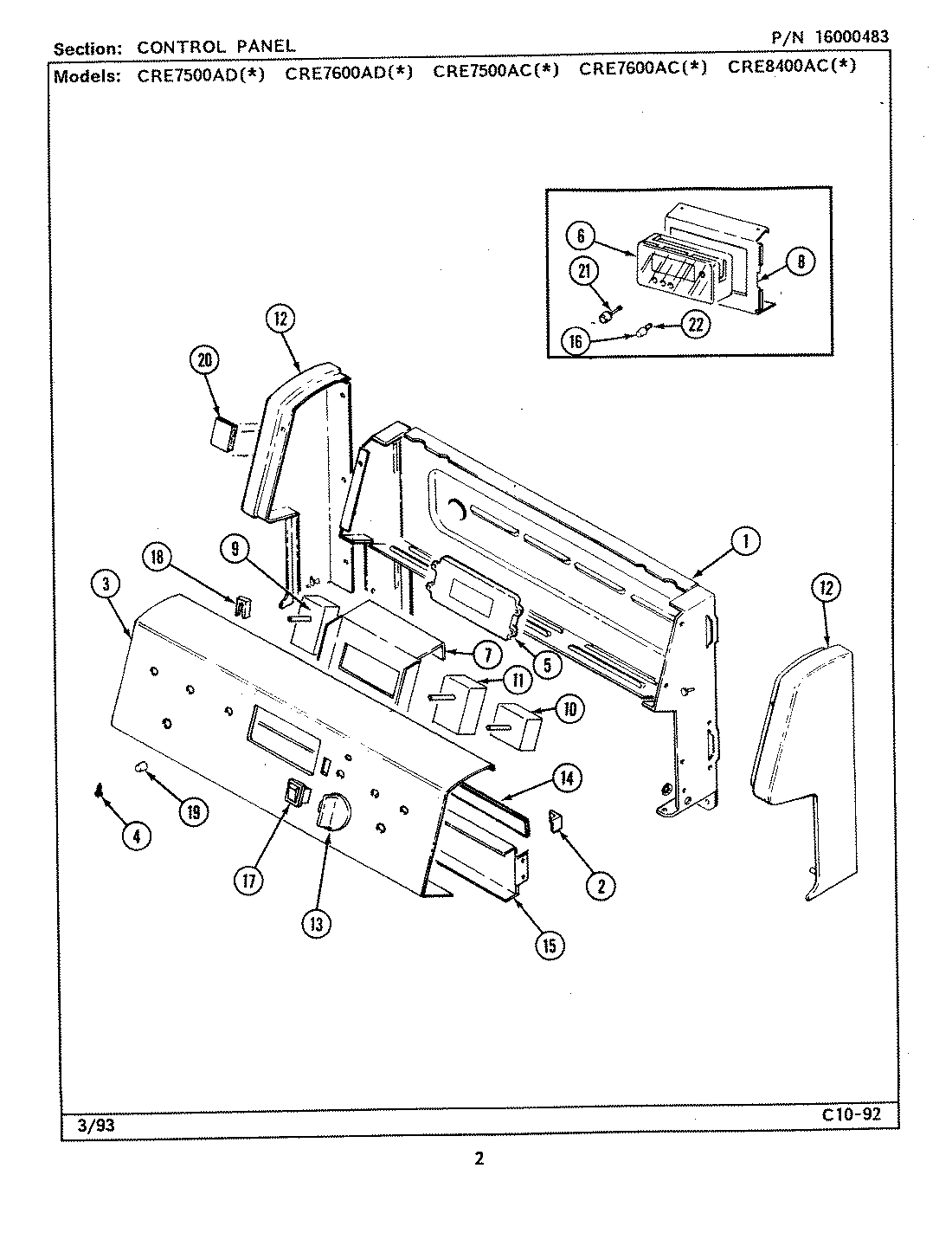

CRE8400ACW 02 – CONTROL PANEL

Products

Position	Product
1	MAY 4001F094-51
3	MAY 7703P671-60
3	MAY 7703P552-60
4	MAY 7118P019-60
5	MAY 7602P121-60
5	MAY 7602P113-60
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 3801F274-45
7	MAY 3801F346-45
9	WP7403P255-60 Whirlpool Selector Switch
10	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
10	WP7403P239-60 Whirlpool Oven Switch
11	MAY 7404P081-60
12	MAY 7726P061-60
12	MAY 7726P062-60
13	MAY 7737P036-60
13	SCREW
14	MAY 7118P015-60
14	MAY 3604F201-80
15	MAY 3802F088-51
17	MAY 7403P309-60
18	MAY 7407P101-60
18	WP74004153 Whirlpool Indicator Light
19	WP7730P011-60 Whirlpool Indicator Lens
20	MAY 8010P085-60
22	MAY 8111P004-60
22	MAY 5170D158-60
22	MAY 16000327
22	MAY 5125A349-60
