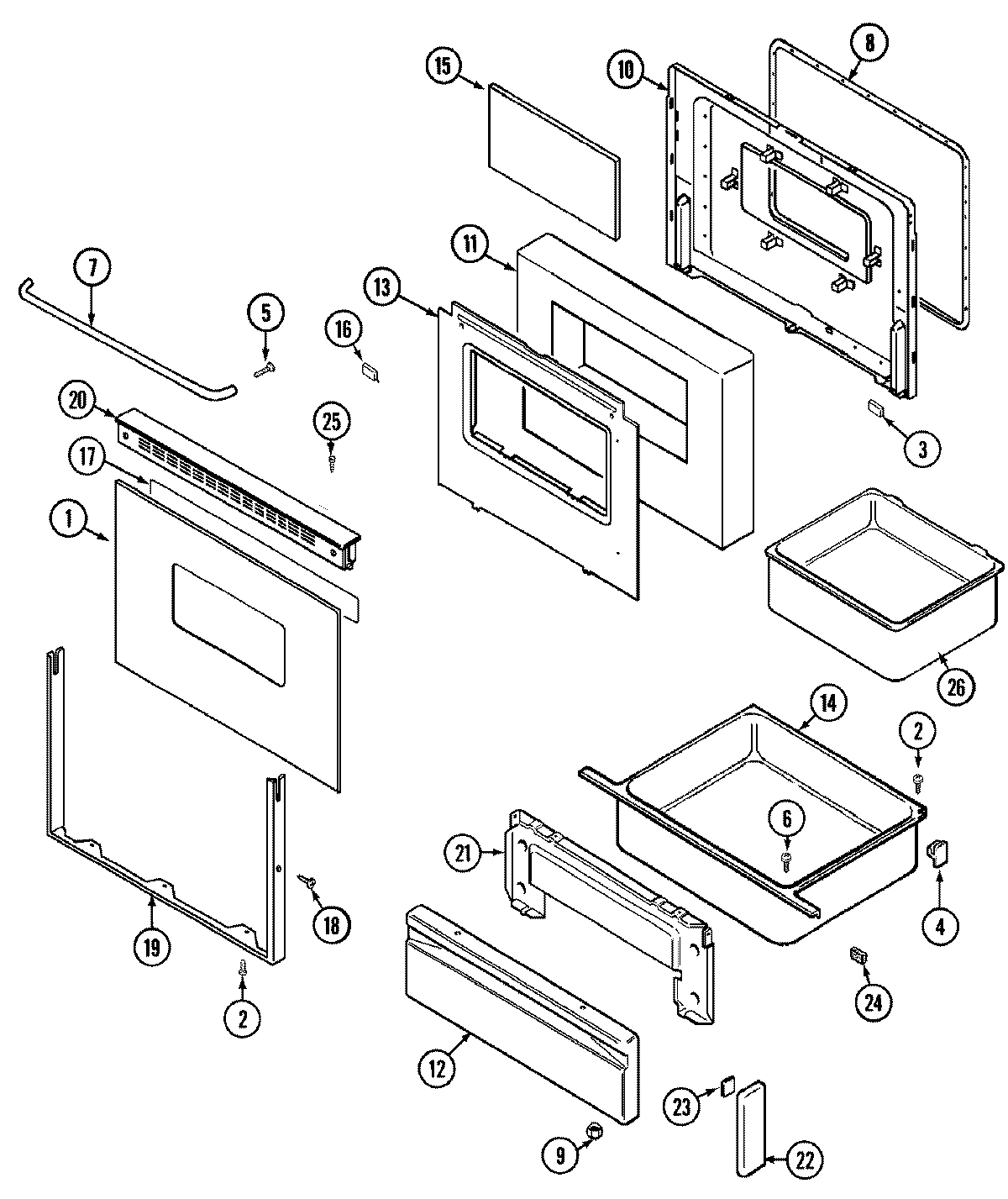

CRE8400BCL 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P361-60
3	MAY 8010P085-60
4	WP488130 Whirlpool Air Conditioner Nut
4	WP8004P026-60 Whirlpool Support
4	MAY 74003566
5	SCREW
6	SCREW
7	MAY 7701P149-60
8	WP7212P043-60 Whirlpool Oven Door Seal Gasket
9	WPW10131078 Whirlpool Nut Assembly
10	NUT, SNAP (ROUND-WHT)
10	NUT, SNAP (ROUND-BLK)
10	MAY 2402W213-19
10	MAY 74003248
10	MAY 74002460
11	MAY 7002P158-60
11	MAY 74002458
12	MAY 2416F050-74
13	MAY 3601F240-80
13	MAY 74002461
13	MAY 7101P290-60
14	MAY 74003618
14	MAY 3405F019-80
15	MAY 7902P319-60
15	MAY 74002459
16	MAY 8270P095-60
17	MAY 8270P078-60
19	MAY 7706P309-60
20	MAY 7706P305-60
21	MAY 2404F043-80
22	MAY 7744P094-60
23	TAPE
24	MAY 7208P011-60
25	WP98008545 Whirlpool Screw
26	MAY 8312P079-60
