CRE8600ACL 03 – DOOR/DRAWER – Aparts

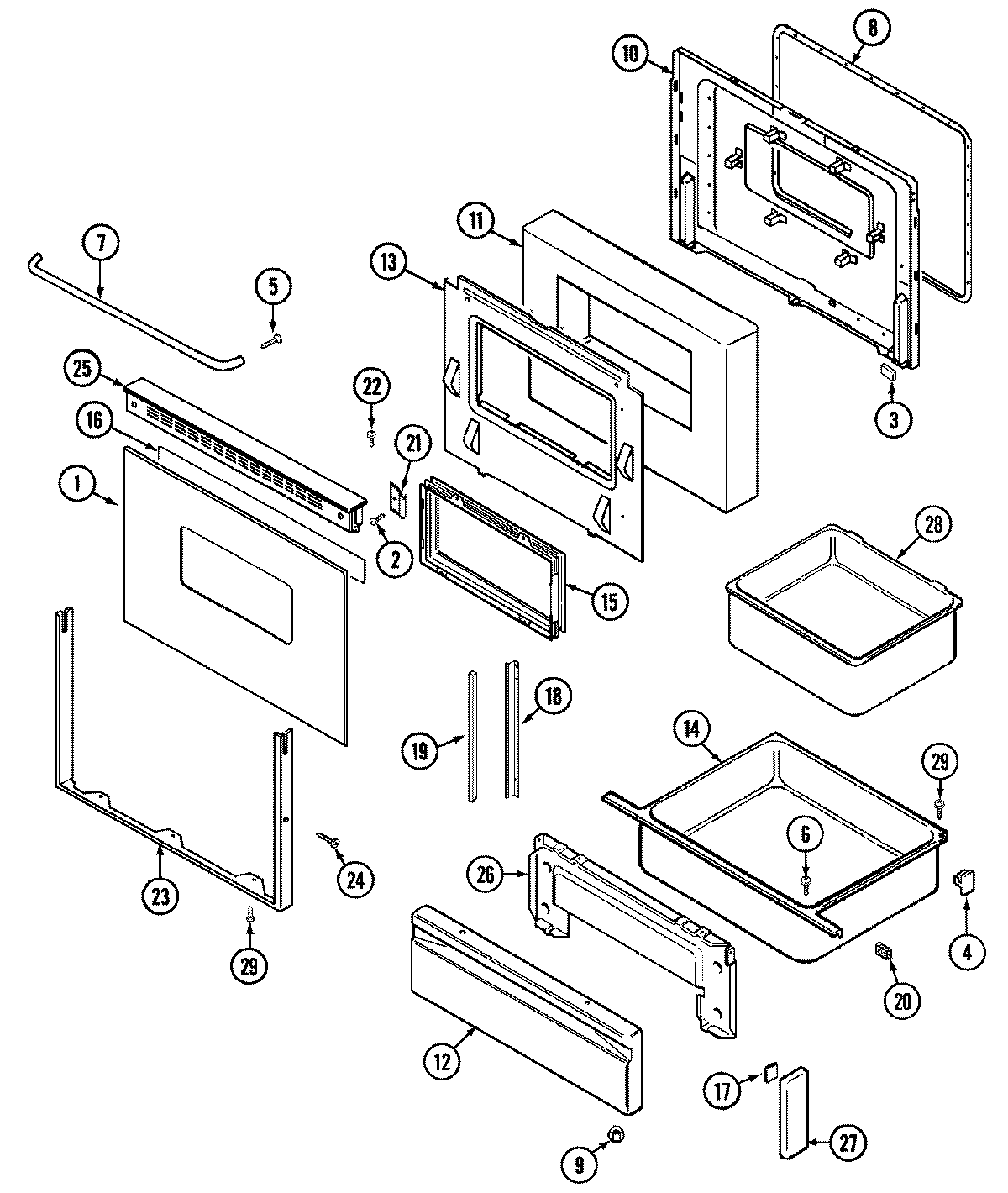

CRE8600ACL 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P361-60
2	MAY 74001449
3	MAY 8010P085-60
4	WP8004P026-60 Whirlpool Support
5	SCREW
6	WP7101P072-60 Whirlpool Screw
7	MAY 7701P127-60
8	GASKT-DOOR OVEN
9	WPW10131078 Whirlpool Nut Assembly
10	MAY 2402W202-19
11	MAY 4804F034-60
12	MAY 2416F043-74
13	MAY 7103P045-60
13	MAY 3601F232-45
14	MAY 3405F015-80
15	MAY 7907P021-60
16	MAY 8270P078-60
17	TAPE
18	MAY 3818F052-51
19	MAY 7208P002-60
20	MAY 7208P011-60
21	MAY 3805F002-34
22	WP98008545 Whirlpool Screw
23	MAY 7706P293-60
24	MAY 7101P319-60
25	MAY 7744P088-60
25	WP3387230 Whirlpool Screw
26	MAY 2404F033-80
27	MAY 7744P094-60
28	MAY 8312P073-60
29	MAY 7101P290-60
