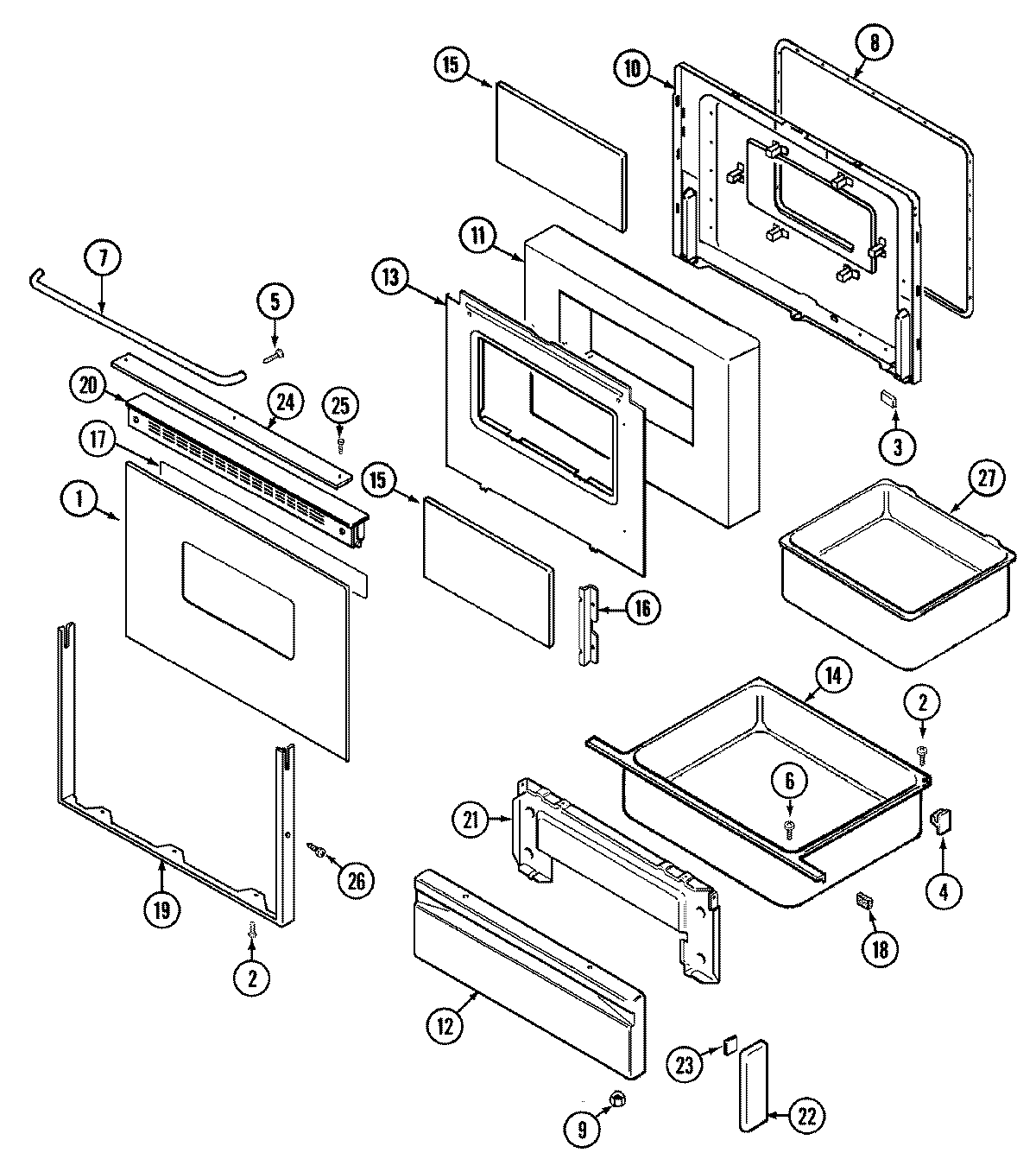

CRE8600CCE 03 – DOOR/DRAWER

CRE8600CCE 03 – DOOR/DRAWER

Written by

in

CRE8600CCE 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 7902P360-60
3MAY 8010P085-60
4MAY 74003566
4WP488130 Whirlpool Air Conditioner Nut
4WP8004P026-60 Whirlpool Support
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 7701P150-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 7103P136-60
10MAY 74003244
10NUT, SNAP (ROUND-WHT)
10MAY 2402W209-19
10WP7103P114-60 Whirlpool Snap Nut
11MAY 74001842
12MAY 2416W001-71
13MAY 74001843
14MAY 3405F019-80
14MAY 74003618
15MAY 74001841
15GLASS, INNER
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P310-60
20MAY 7706P306-60
20MAY 7101P290-60
21MAY 2404F043-80
22MAY 7744P093-60
23TAPE
24MAY 7728P094-60
25MAY 74001278
26WP98008544 Whirlpool Screw Assembly
27MAY 8312P079-60
