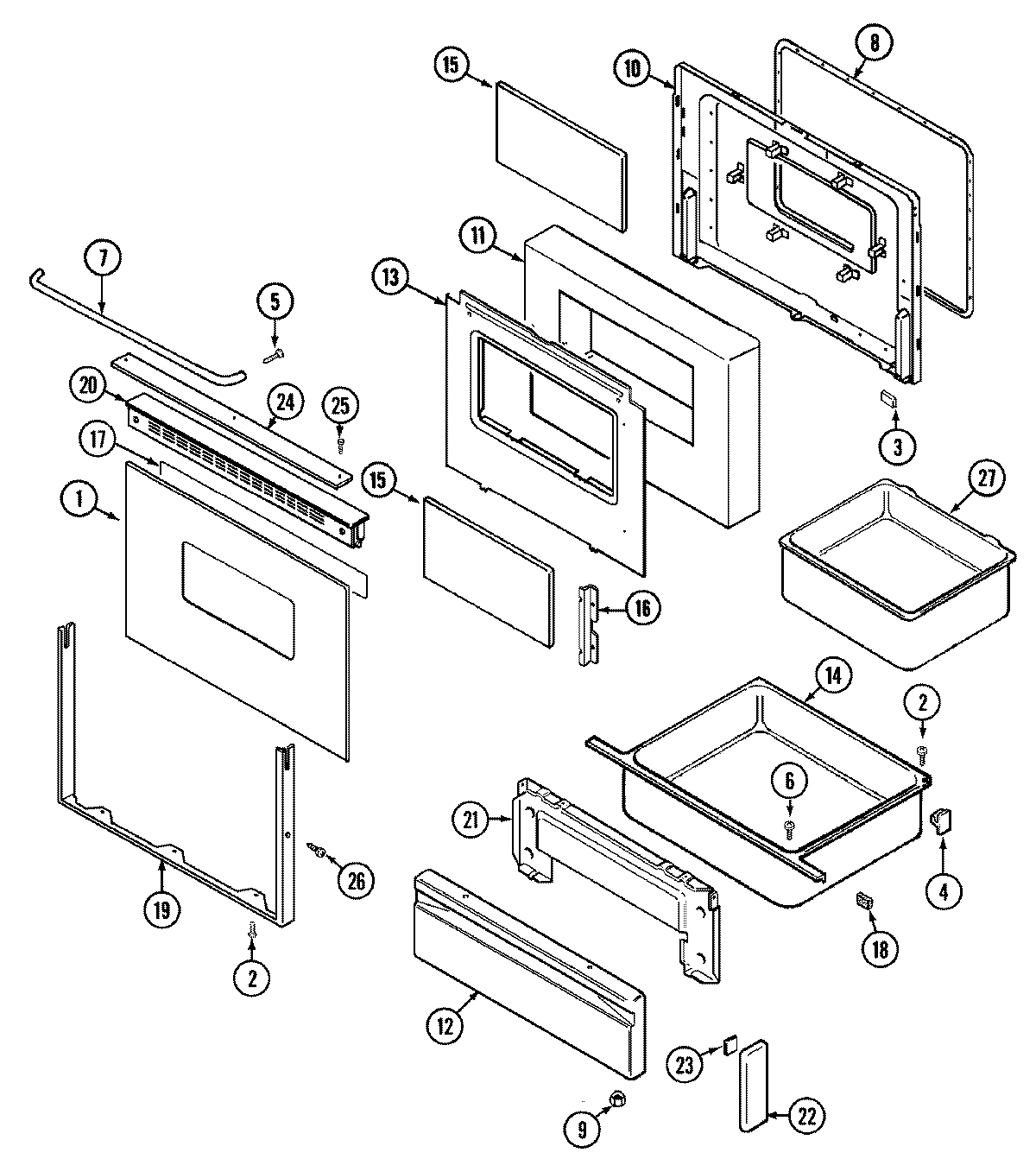

CRE8600CCM 03 – DOOR/DRAWER

CRE8600CCM 03 – DOOR/DRAWER

Written by

in

CRE8600CCM 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74001294
3MAY 8010P085-60
4WP488130 Whirlpool Air Conditioner Nut
4WP8004P026-60 Whirlpool Support
4MAY 74003566
5SCREW
6WP7101P072-60 Whirlpool Screw
7MAY 74001284
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10WP7103P114-60 Whirlpool Snap Nut
10NUT, SNAP (ROUND-WHT)
10MAY 7103P136-60
10MAY 2402W209-19
10MAY 74003244
11MAY 74001842
12MAY 2416W001-74
13MAY 74001843
14MAY 3405F019-80
14MAY 74003618
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P311-60
20MAY 74001279
20MAY 7101P290-60
21MAY 2404F043-80
22MAY 7744P094-60
23TAPE
24MAY 7728P095-60
25MAY 7101P370-60
26WP74009541 Whirlpool Screw Assembly
27MAY 8312P079-60
