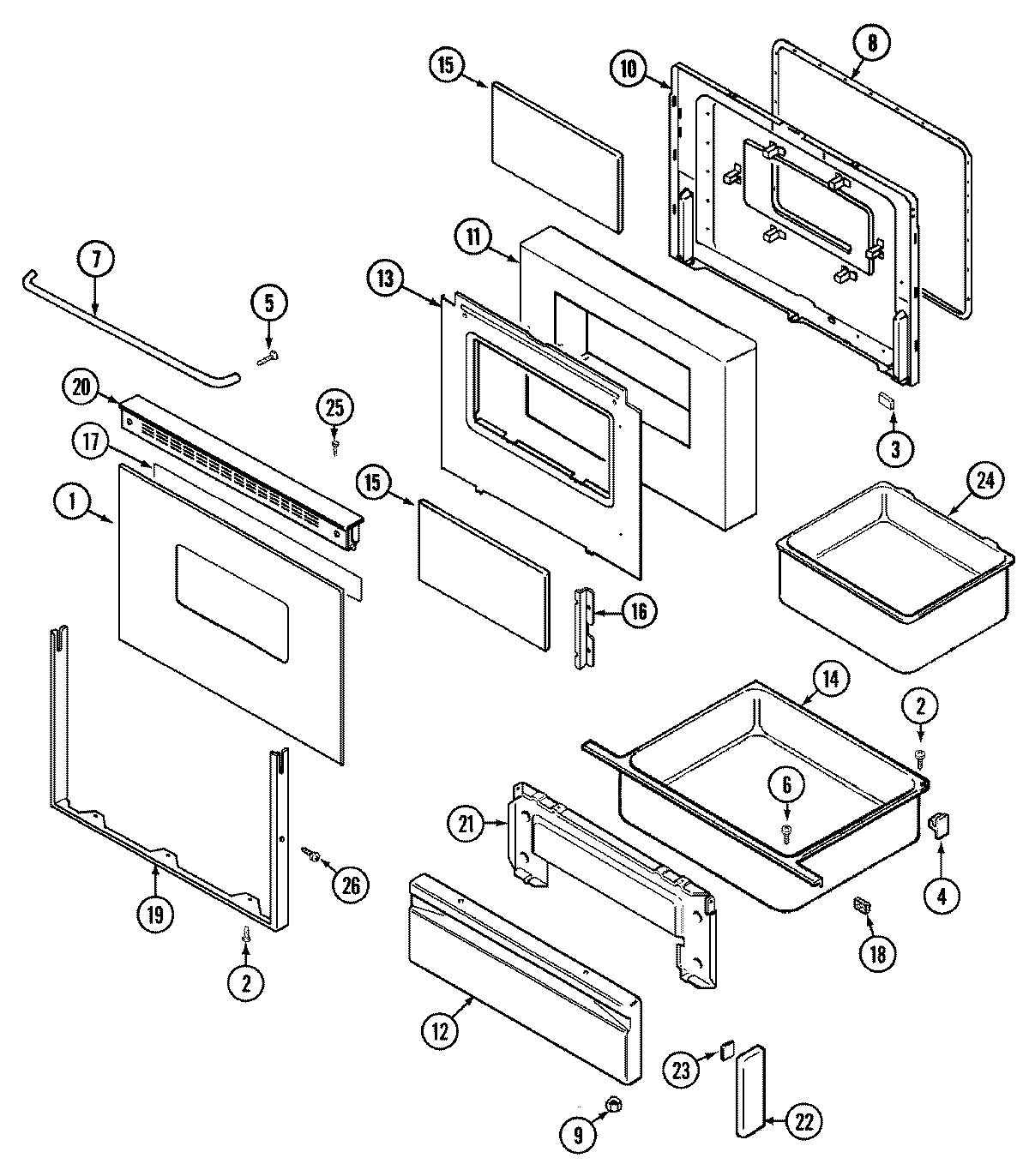

CRE8600CCW 03 – DOOR/DRAWER (CRE8600CCL/CCW)

CRE8600CCW 03 – DOOR/DRAWER (CRE8600CCL/CCW)

Products

PositionProduct
1MAY 7902P361-60
3MAY 8010P085-60
4WP8004P026-60 Whirlpool Support
5SCREW
7MAY 7701P149-60
8GASKT-DOOR OVEN
9WPW10131078 Whirlpool Nut Assembly
10MAY 7103P136-60
10NUT, SNAP (ROUND-WHT)
10NUT, SNAP (ROUND-BLK)
10MAY 2402W209-19
11MAY 74001842
12MAY 2416F050-71
12MAY 7101P290-60
13MAY 74001843
14MAY 3405F019-80
15MAY 74001841
16MAY 74001844
17MAY 8270P078-60
18MAY 7208P011-60
19MAY 7706P309-60
20SCREW
20MAY 7706P305-60
21MAY 2404F043-80
22MAY 7744P093-60
23TAPE
24MAY 8312P079-60
26WP98008545 Whirlpool Screw
